DALI-2 Switch Cross
✗
UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or
equivalent). Installation in USA projects may require a Field Evaluation
by a recognized laboratory. Consult your local AHJ before specifying.
~
Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as
the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an
NRTL-listed power supply, many AHJs accept non-listed SELV devices.
Verify with your local AHJ before specifying.
Regular price
$161.28 USD
Regular price
-20%
$201.60 USD
Sale price
$161.28 USD
Couldn't load pickup availability
KNX & DALI Specialists
Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.
Free shipping over $500
KNX certified devices
Expert technical support
Got questions?
Feel free to get in touch
Ask an expert!
The Lunatone DALI-2 Switch Cross is a slim wall-mounted pushbutton module with four individually programmable buttons — a complete DALI-2 control point only 8.5mm thick, powered entirely from the bus. Each button carries its own target address, behaviour and DALI commands, and the faceplate can be ordered with predefined symbols or fully custom artwork via Lunatone's online configurator.
Key features
- 4 programmable buttons: dimming, switching, scene recall, plus macros for colour temperature, dynamic scenes, sequences and custom command lists
- NFC versions configurable from a smartphone with the Lunatone NFC app
- Instance-mode versions send event messages to BMS platforms (WAGO, Beckhoff, KNX DALI-2 Gateway)

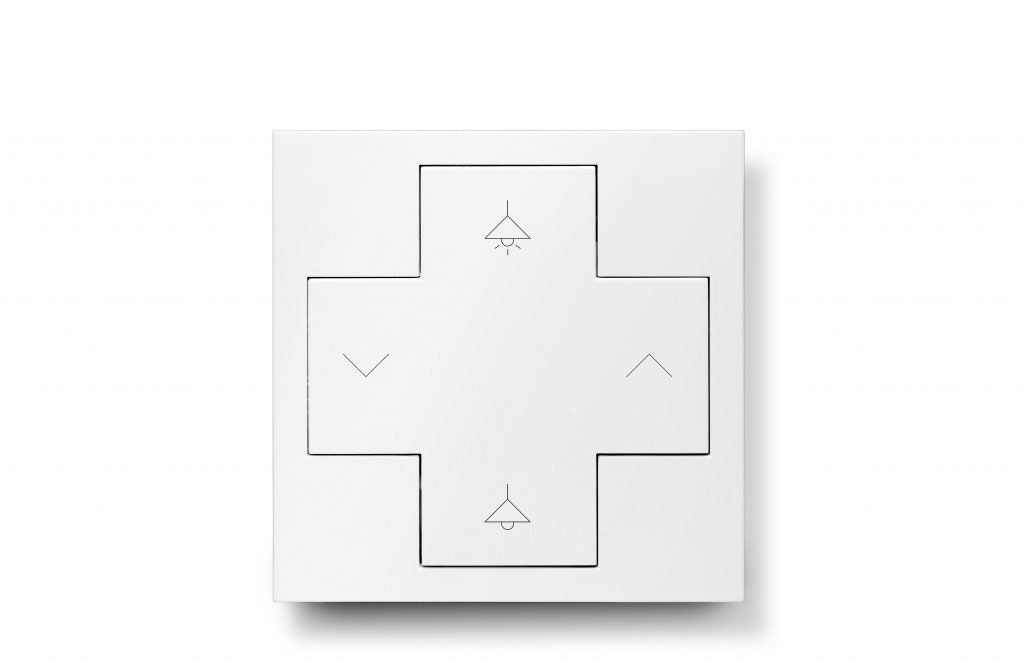

- Custom or predefined user interface symbols; design configurator available
- Buzzer for device localization during commissioning
- Multimaster capable, DALI-2 certified (IEC 62386-103); DALI Cockpit configuration
Choose colour and configuration

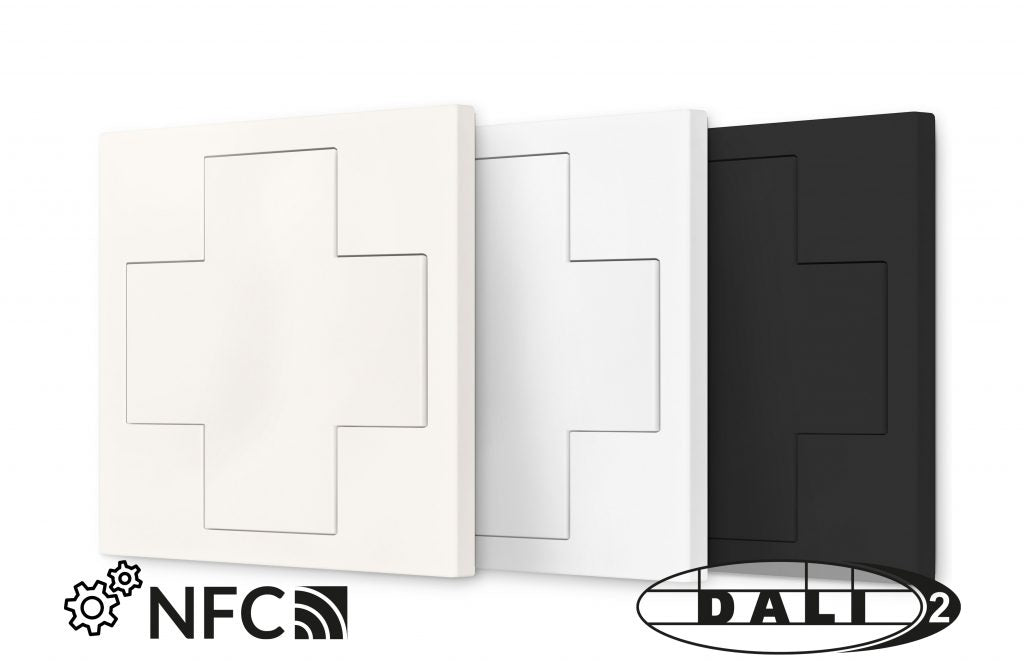

Three finishes — pure white RAL 9010, traffic white RAL 9016 and black — each available as App Controller (direct DALI control), Integration (instance mode for BMS) or NFC (app-configurable).
Technical specifications
| Supply | DALI bus, 3.6mA |
| Mounting | wall mounting on flush box |
| Dimensions | 82 × 82 × 8.5 mm |
| Ambient temperature | -20°C to +50°C · IP20 |
The successor to the DALI Switch Cross, now DALI-2 certified — a clean, flat scene keypad for offices, hotels and residences.
Orders over $500 ship free within the USA (under 50 lbs). Orders under $500 carry a low cost shipping fee.
Most in-stock orders ship within 1–2 business days from Miami, FL. Delivery typically takes 3–5 business days depending on destination.
For freight or oversized orders, our team will contact you with a custom quote.
All KNXSupply products are covered by the manufacturer's warranty, ranging from 1 to 3 years depending on the brand. Warranty terms are fulfilled directly by the manufacturer.
If you experience any issue, contact us and we'll coordinate the claim process on your behalf.
Buy in bulk
| Variant | Quantity | Price | Total |
|---|---|---|---|
|
White RAL9010 / App Controller
86459793-W-2-app
|
|
||
|
White RAL9010 / Integration
86459793-W-2-int
|
|
||
|
White RAL9010 / NFC
86459793-W-NFC
|
|
||
|
White RAL9016 / App Controller
86459793-W16-2-app
|
|
||
|
White RAL9016 / Integration
86459793-W16-2-int
|
|
||
|
White RAL9016 / NFC
86459793-W16-NFC
|
|
||
|
Black / App Controller
86459793-B-2-app
|
|
||
|
Black / Integration
86459793-B-2-int
|
|
||
|
Black / NFC
86459793-B-NFC
|
|
