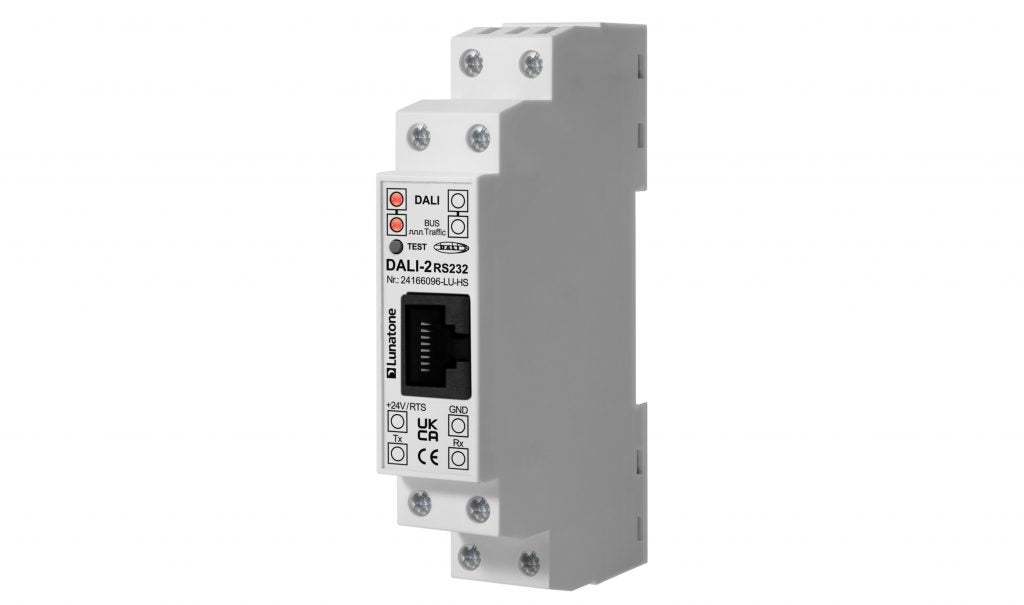

Lunatone DALI-2 SCI RS232 LUBA DIN Rail
Lunatone DALI-2 SCI RS232 LUBA DIN Rail

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

LUNATONE

DALI-2 SCI RS232 LUBA

SKU: 24166096-LU-HS
(0)
✗ UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or equivalent). Installation in USA projects may require a Field Evaluation by a recognized laboratory. Consult your local AHJ before specifying.
~ Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an NRTL-listed power supply, many AHJs accept non-listed SELV devices. Verify with your local AHJ before specifying.
$275.04 USD
-20% $343.80 USD $275.04 USD
In stock
On backorder
KNX & DALI Specialists

Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.

Free shipping over $500
KNX certified devices
Expert technical support

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +1 (786) 956-6821

The Lunatone DALI-2 SCI RS232 LUBA is the serial bridge between industrial controllers and DALI lighting. Mounted on the DIN rail, it gives any PLC or automation system with an RS232 port full bidirectional access to the DALI bus — addressing, configuration, control commands, status queries and monitoring — using Lunatone's documented LUBA protocol (Lunatone Universal Building and Automation Protocol) for structured, high-level access to the DALI system.

Key features

  • Bidirectional RS232-to-DALI communication for PLCs and automation controllers
  • LUBA protocol: intelligent, documented protocol for easy DALI system access — supported by DALI Cockpit 1.38.60+
  • RS232 accessible via screw terminals and RJ45 female connector
  • Suitable for addressing, configuration, status queries and monitoring of the entire line
  • Fixed serial parameters: 38400 baud, 8 data bits, no parity, 1 stop bit
  • Successor to the DALI SCI RS232 (22176438-HS)

Technical specifications

SCI supply 6–24V DC (SELV), typ. 5mA
DALI consumption typ. 10mA
Interface RS232 (38400, 8, n, 1), screw terminals + RJ45
Mounting DIN rail
Dimensions 98 × 17.5 × 57 mm
Ambient temperature -20°C to +75°C · IP20

The dependable choice for integrating DALI lighting into industrial automation, machine lighting and legacy BMS platforms that speak serial. For versions with an integrated 240mA DALI bus power supply, see the DALI-2 RS232 PS240mA LUBA.
