LUNATONE

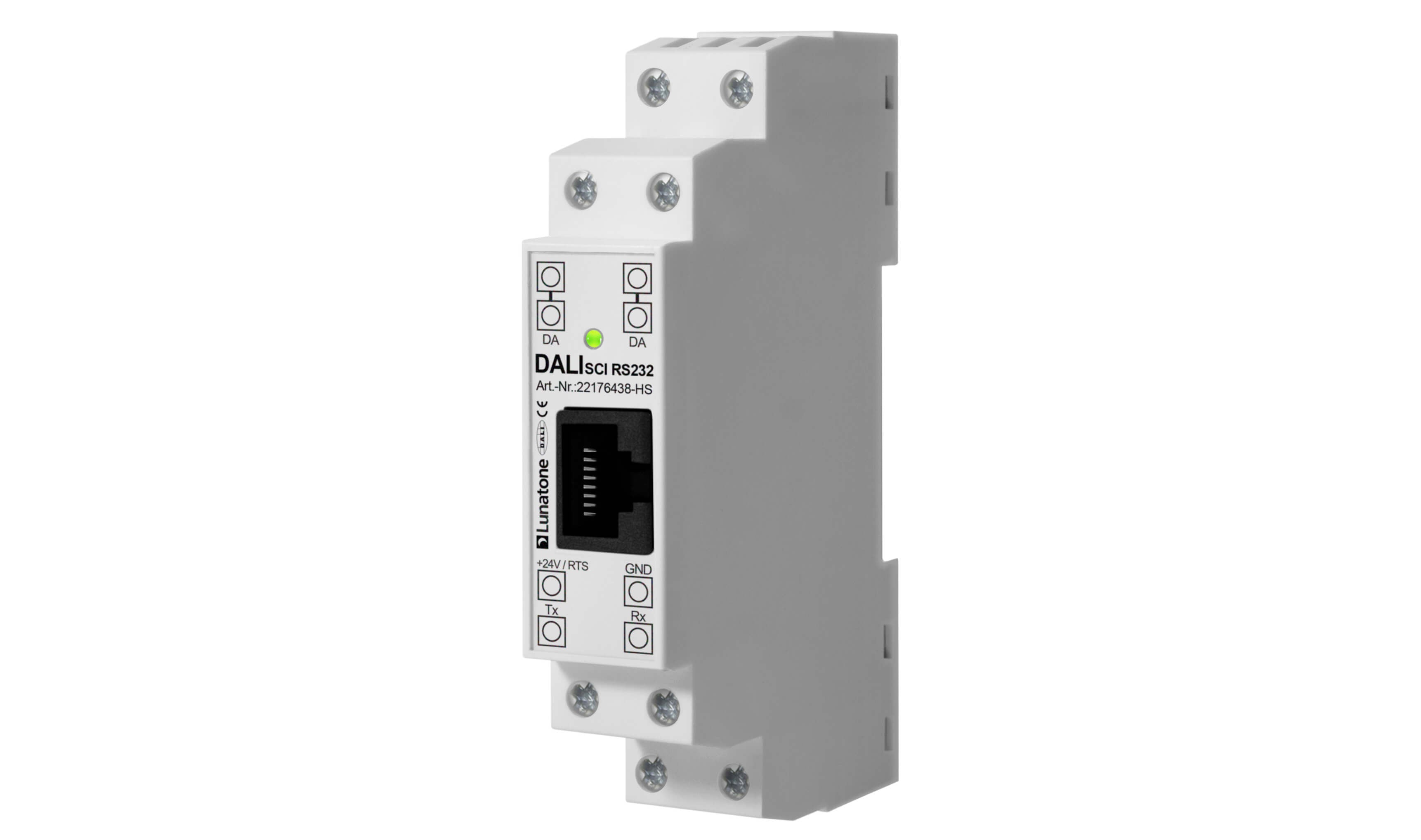

DALI-2 SCI RS232 DIN Rail

SKU: 22176438-HS
(0)
? US Listing status unknown
US certification status for this product has not been verified yet. Contact us if you need this information before specifying.
$264.96 USD
-20% $331.20 USD $264.96 USD
In stock
On backorder
KNX & DALI Specialists

Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.

Free shipping over $500
KNX certified devices
Expert technical support

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +1 (786) 956-6821

RS232 to DALI-2 Interface, screw terminal and RJ45, DIN rail

  • The DALI-2 SCI RS232 is connected to the DALI-line. A typical value for the current consumption is 10mA.
  • The connection to the DALI-line is polarityfree.
  • For easy installation, each DALI-terminalis executed as double clamp (linked contacts are marked on the housing).
  • With the test button on the device (Art.Nr.: 24166096-LU-HS) the wiring of the DALI system can be checked.
  • Pressing the test button all luminaires connected to the DALI system will be controlled:
  • Short press: the LED on the device is flashing and a test sequence (on, off, dimming) is started
  • Long press: ON – 100%
  • Second press: OFF and the test mode is ended
