DALI-2 CS THP-AQ – Multi-Sensor with Application Controller

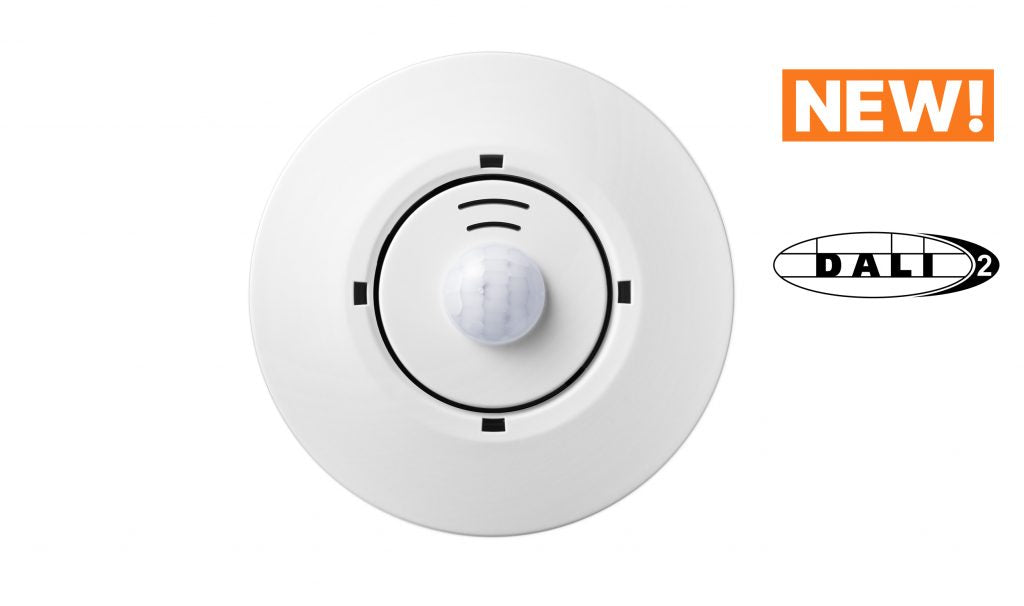

The Lunatone DALI-2 CS THP-AQ packs six sensors and a DALI-2 application controller into one ceiling module: it doesn't just measure motion, light, temperature, relative humidity, air pressure and air quality (CO₂ equivalent 0–8000 ppm) — it can directly run the lighting itself. Presence-triggered constant light control plus full room-climate data for the BMS, no external controller required. Instance mode can be activated when a central control unit takes over.

Key features

• Application controller on board: DALI commands on motion (on/off, max, min, scene…) to broadcast, groups or addresses
• 4 operating modes incl. presence-triggered constant light control
• 6 measurements: PIR, light 0–2047 lux, °C, %RH, hPa, CO₂ equivalent
• Instance mode activatable for BMS integration
• Swivel head, bus powered, multimaster, DALI-2 certified

Versions

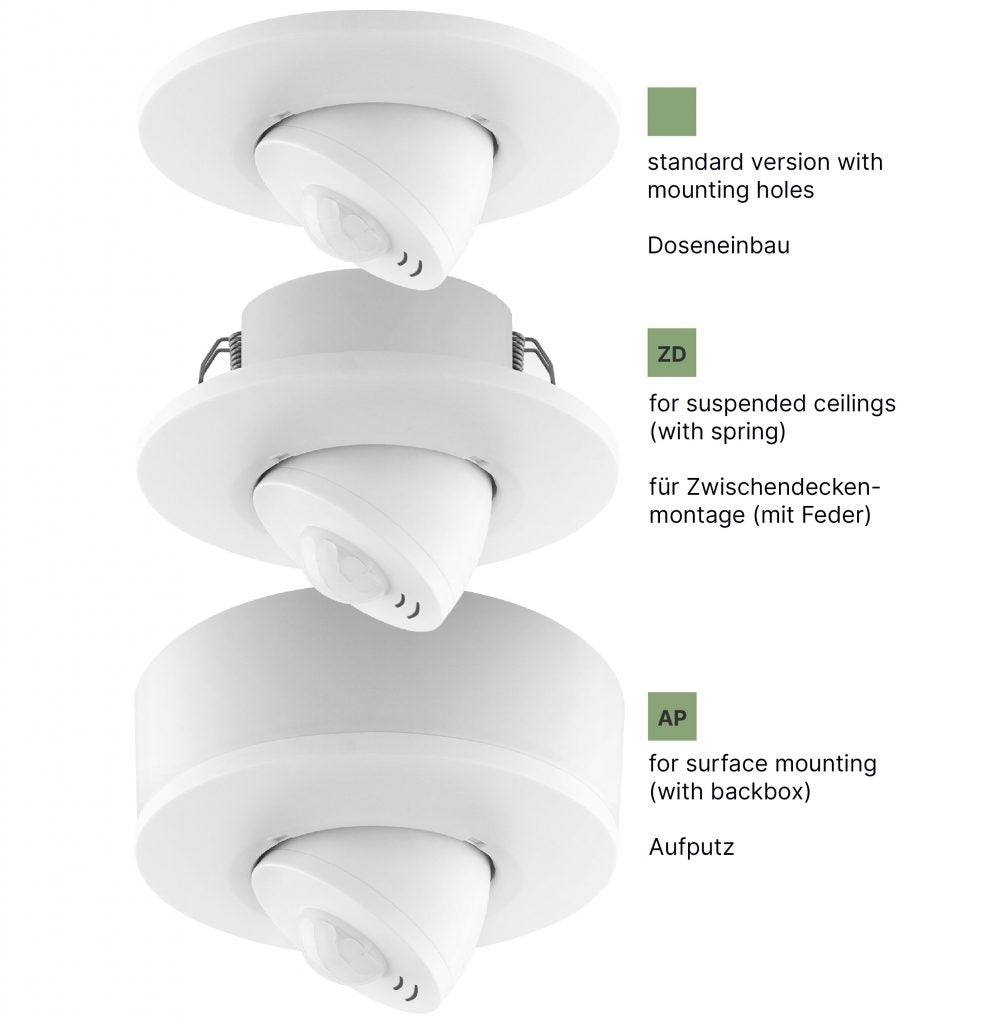

Housing in traffic white RAL 9016. Detection: PIR 12m or Presence Office 2.5m. Mountings: standard, surface (AP) or suspended-ceiling spring (ZD). Other colours available on request.

Technical specifications

For pure instance-mode operation at a lower price point, see the DALI-2 CS Integration THP-AQ.
