DALI-2 CS Mini Integration – Presence & Light Sensor
✗
UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or
equivalent). Installation in USA projects may require a Field Evaluation
by a recognized laboratory. Consult your local AHJ before specifying.
~
Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as
the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an
NRTL-listed power supply, many AHJs accept non-listed SELV devices.
Verify with your local AHJ before specifying.
Regular price
$105.12 USD
Regular price
-20%
$131.40 USD
Sale price
$105.12 USD
Couldn't load pickup availability
KNX & DALI Specialists
Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.
Free shipping over $500
KNX certified devices
Expert technical support
Got questions?
Feel free to get in touch
Ask an expert!

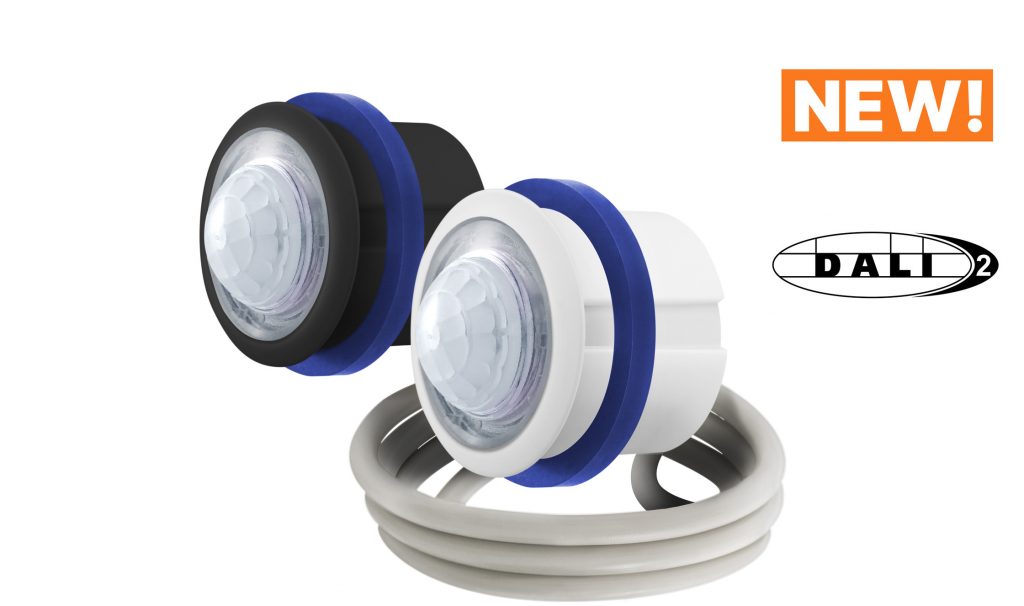

The Lunatone DALI-2 CS Mini Integration is the instance-mode version of the CS Mini: the same 28 × 28 × 27 mm luminaire built-in presence sensor (Office 2.5m with sensitive inner zone for minor movements) and light measurement, publishing values as DALI-2 instances for a central controller — DALI-2 CS Master, Lunatone SI PRO, WAGO, Beckhoff or KNX DALI-2 gateways. Values can be queried or pushed as events. Rubber-ring mount, 350mm cable.
Key features
- Presence sensor 2.5m with sensitive inner detection area
- DALI-2 instance mode; multiple sensors per group synchronise automatically
- Bus powered (4.5mA), multimaster, DALI-2 certified
- IP65 version for outdoor and damp locations
Technical specifications
| Supply | DALI bus, 4.5mA |
| Motion | PIR, mounting 2.3–3m, 36/48 zones, ±44°/±90° |
| Dimensions | 28.3 × 28.3 × 27 mm · cable 350mm |
| Ambient temperature | -20°C to +70°C |
With built-in application controller: DALI-2 CS Mini. Threaded mount: DALI-2 CS Mini Integration GW.
Orders over $500 ship free within the USA (under 50 lbs). Orders under $500 carry a low cost shipping fee.
Most in-stock orders ship within 1–2 business days from Miami, FL. Delivery typically takes 3–5 business days depending on destination.
For freight or oversized orders, our team will contact you with a custom quote.
All KNXSupply products are covered by the manufacturer's warranty, ranging from 1 to 3 years depending on the brand. Warranty terms are fulfilled directly by the manufacturer.
If you experience any issue, contact us and we'll coordinate the claim process on your behalf.
Buy in bulk
| Variant | Quantity | Price | Total |
|---|---|---|---|

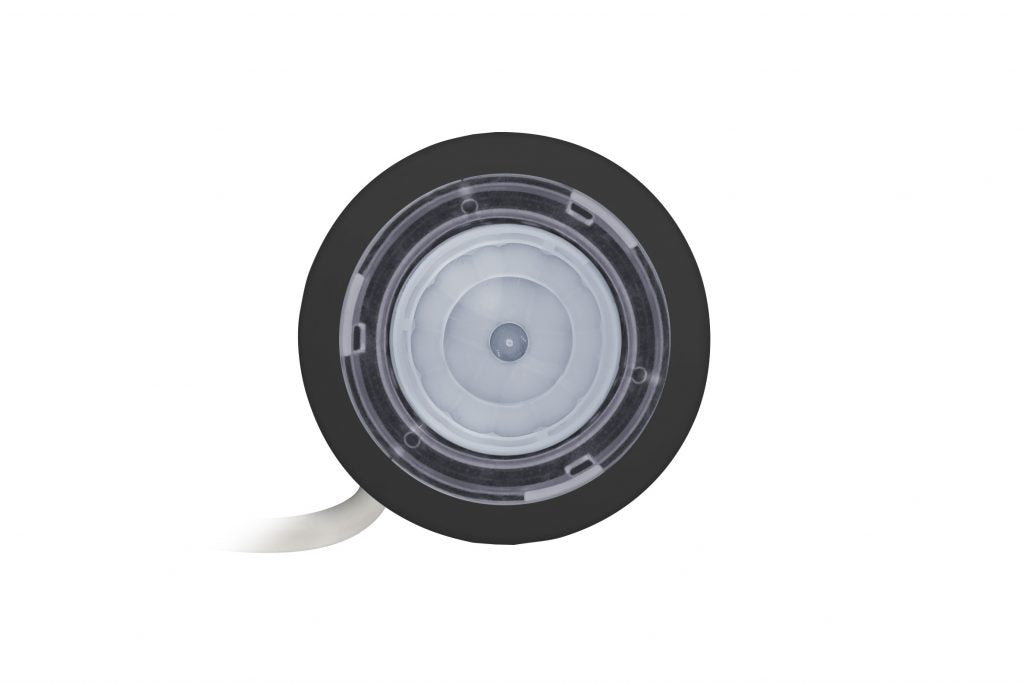

Black / IP20 Standard
86457244-INT
|
|
||
|
Black / IP65 Outdoor
86457244-INT-IP65
|
|
||

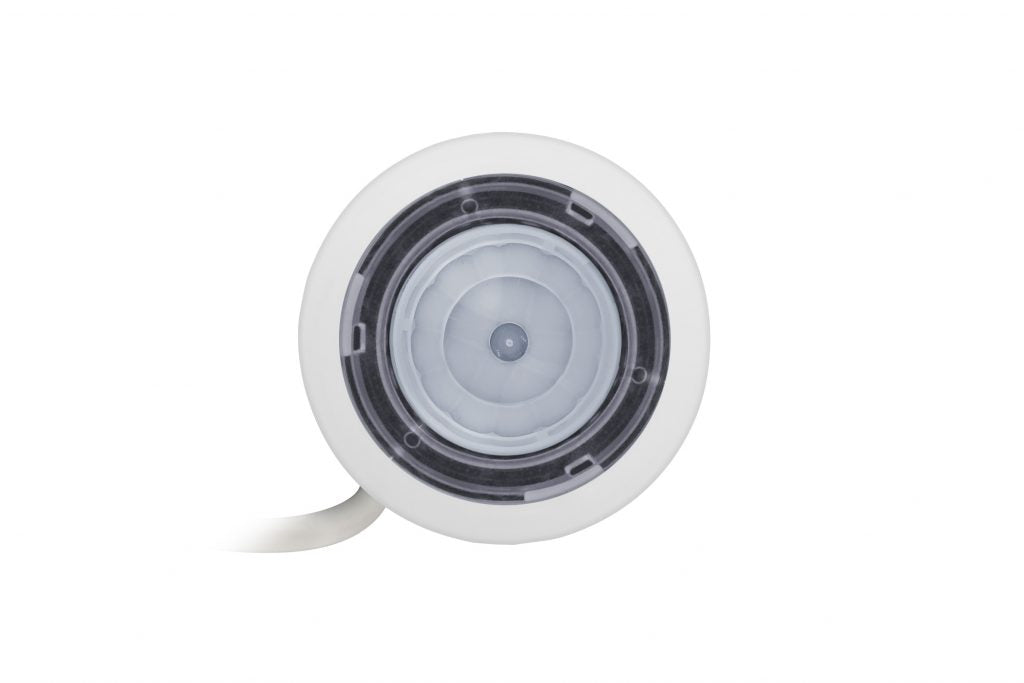

White RAL9016 / IP20 Standard
86457244-INT-W16
|
|
||
|
White RAL9016 / IP65 Outdoor
86457244-INT-W16-IP65
|
|
