DALI-2 CS Mini GW – Presence & Light Sensor, Threaded Mount
✗
UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or
equivalent). Installation in USA projects may require a Field Evaluation
by a recognized laboratory. Consult your local AHJ before specifying.
~
Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as
the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an
NRTL-listed power supply, many AHJs accept non-listed SELV devices.
Verify with your local AHJ before specifying.
Regular price
$146.88 USD
Regular price
-20%
$183.60 USD
Sale price
$146.88 USD
Couldn't load pickup availability
KNX & DALI Specialists
Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.
Free shipping over $500
KNX certified devices
Expert technical support
Got questions?
Feel free to get in touch
Ask an expert!

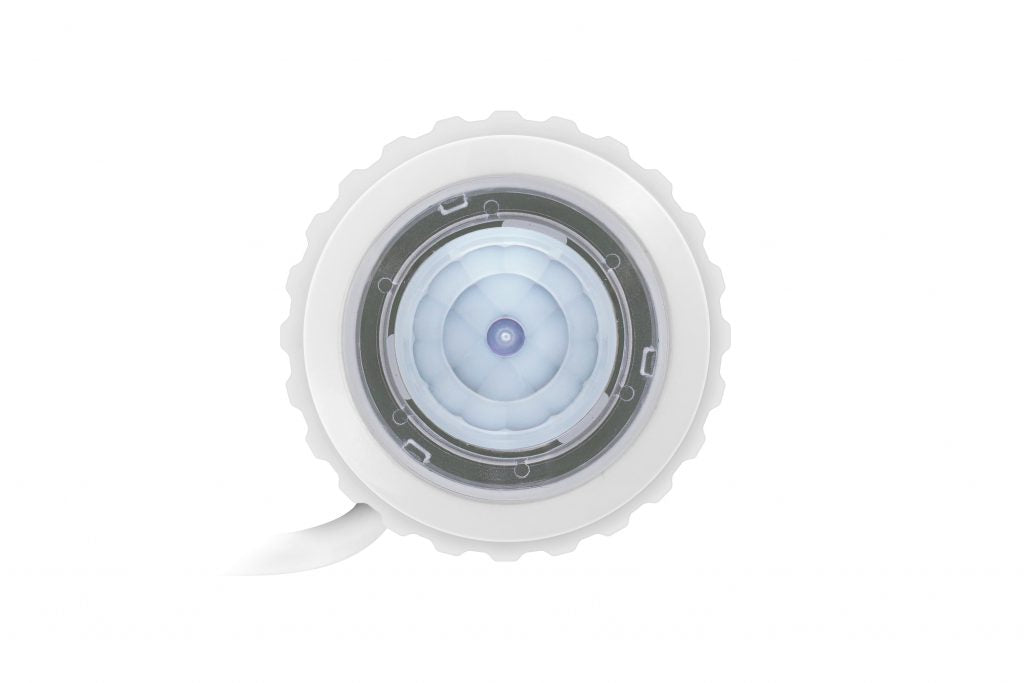

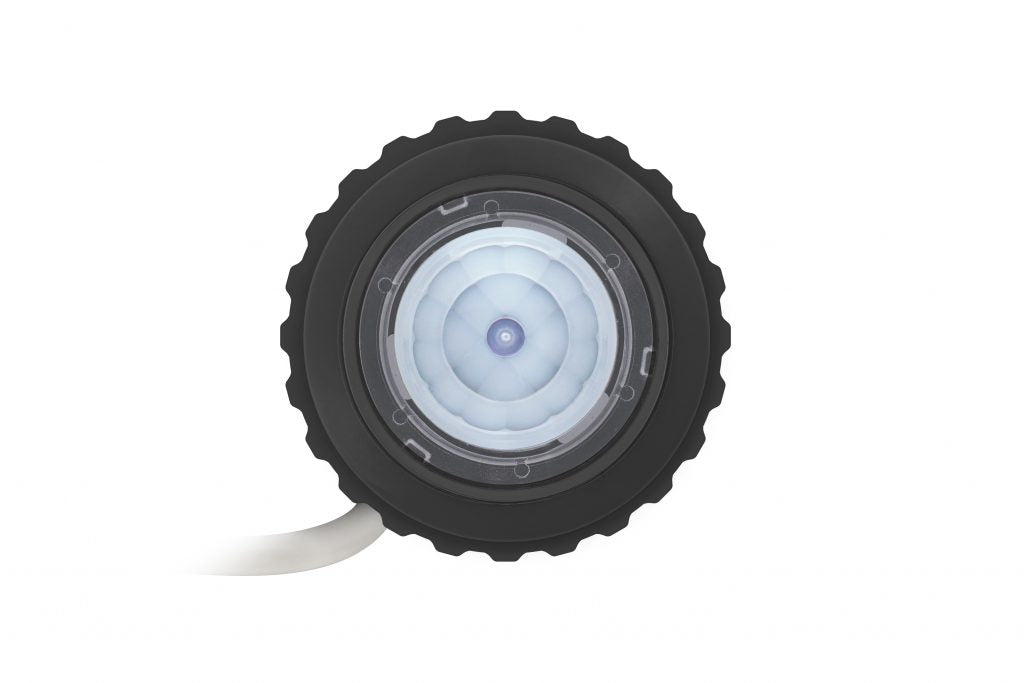

The Lunatone DALI-2 CS Mini GW is the CS Mini presence sensor with a threaded mount and screw nut — the mechanically secure choice for drilling through luminaire housings, canopies or panels. Same 28 × 28 × 27 mm module: PIR presence detection (Office 2.5m with sensitive inner zone for minor movements), light measurement and an integrated application controller with constant light control. 350mm cable.
Key features
- Threaded mount with screw nut for secure panel installation
- Presence sensor 2.5m with sensitive inner detection area; built-in application controller and constant light control
- Sensors in one group synchronise automatically; bus powered (4.5mA), multimaster, DALI-2 certified
- IP65 version for outdoor and damp locations
Technical specifications
| Supply | DALI bus, 4.5mA |
| Motion | PIR, mounting 2.3–3m, 36/48 zones, ±44°/±90° |
| Dimensions | 28.3 × 28.3 × 27 mm · cable 350mm |
| Ambient temperature | -20°C to +70°C |
Rubber-ring mount version: DALI-2 CS Mini. Instance-mode only: DALI-2 CS Mini Integration GW.
Orders over $500 ship free within the USA (under 50 lbs). Orders under $500 carry a low cost shipping fee.
Most in-stock orders ship within 1–2 business days from Miami, FL. Delivery typically takes 3–5 business days depending on destination.
For freight or oversized orders, our team will contact you with a custom quote.
All KNXSupply products are covered by the manufacturer's warranty, ranging from 1 to 3 years depending on the brand. Warranty terms are fulfilled directly by the manufacturer.
If you experience any issue, contact us and we'll coordinate the claim process on your behalf.
Buy in bulk
| Variant | Quantity | Price | Total |
|---|---|---|---|

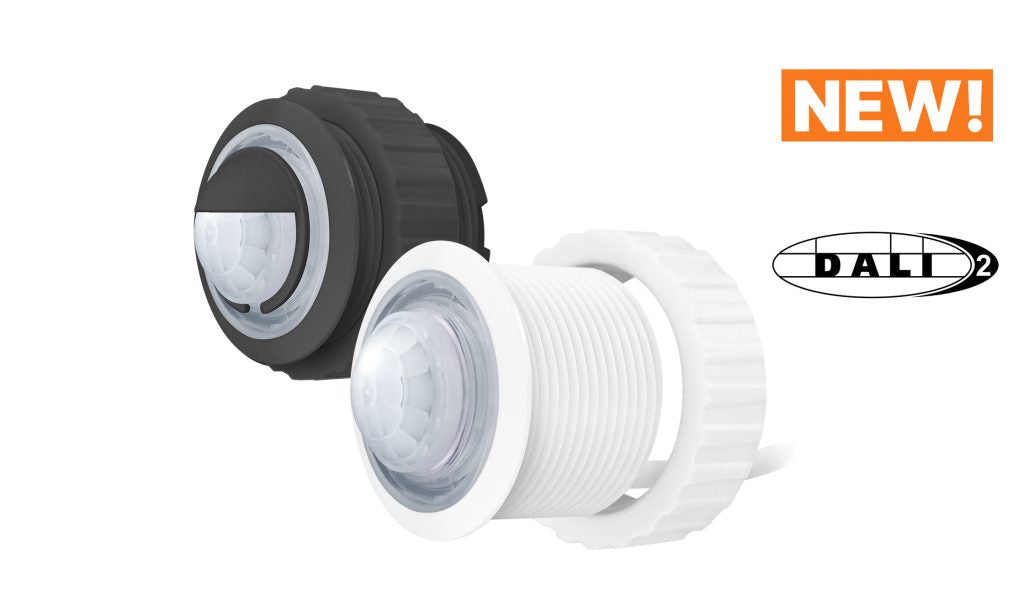

Black / IP20 Standard
86457244-GW
|
|
||
|
Black / IP65 Outdoor
86457244-GW-IP65
|
|
||
White RAL9016 / IP20 Standard
86457244-GW-W16
|
|
||
|
White RAL9016 / IP65 Outdoor
86457244-GW-W16-IP65
|
|
