DALI-2 CS Integration – Motion & Light Sensor
✗
UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or
equivalent). Installation in USA projects may require a Field Evaluation
by a recognized laboratory. Consult your local AHJ before specifying.
~
Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as
the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an
NRTL-listed power supply, many AHJs accept non-listed SELV devices.
Verify with your local AHJ before specifying.
Regular price
$115.20 USD
Regular price
-20%
$144.00 USD
Sale price
$115.20 USD
Couldn't load pickup availability
KNX & DALI Specialists
Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.
Free shipping over $500
KNX certified devices
Expert technical support
Got questions?
Feel free to get in touch
Ask an expert!

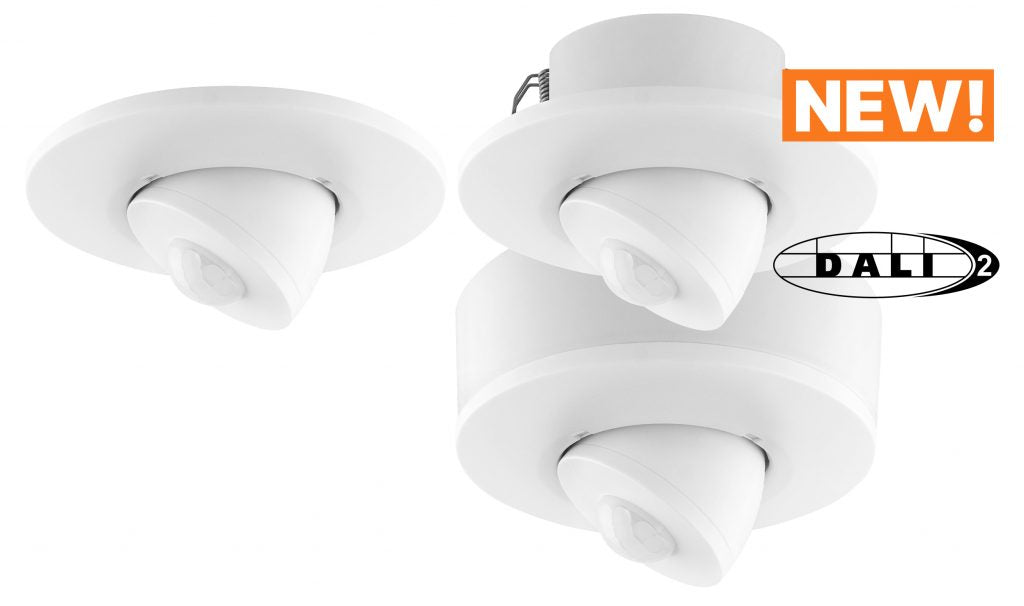

The Lunatone DALI-2 CS Integration is the pure instance-mode version of the CS combisensor — the eyes of a building management system. It measures motion (PIR) and light intensity and publishes them as DALI-2 instances for a central controller: DALI-2 CS Master, Lunatone SI PRO, WAGO, Beckhoff or a KNX DALI-2 gateway. Values can be queried on demand or pushed automatically as events. All instance events are active from the factory — assign the sensor to a CS Master and it works with zero configuration.
Key features
- DALI-2 instance mode: motion (instance 204) and light level (instance 203) for central evaluation
- Event-driven or polled measurement delivery
- Multiple sensors within one group synchronise automatically
- Swivel sensor head for easy alignment; bus powered (4.5mA), multimaster, DALI-2 certified
- Roughly 25% lower cost than the full application-controller CS — the economical choice for BMS projects
Choose your optics, colour and mounting
- PIR 12m — general purpose, 92 zones · Presence Office 2.5m — desk-level detection · PIR 15m — high mounting · PIR 10×30m — long-distance lens, also in IP54 · Corridor Wide 5m — 150° horizontal

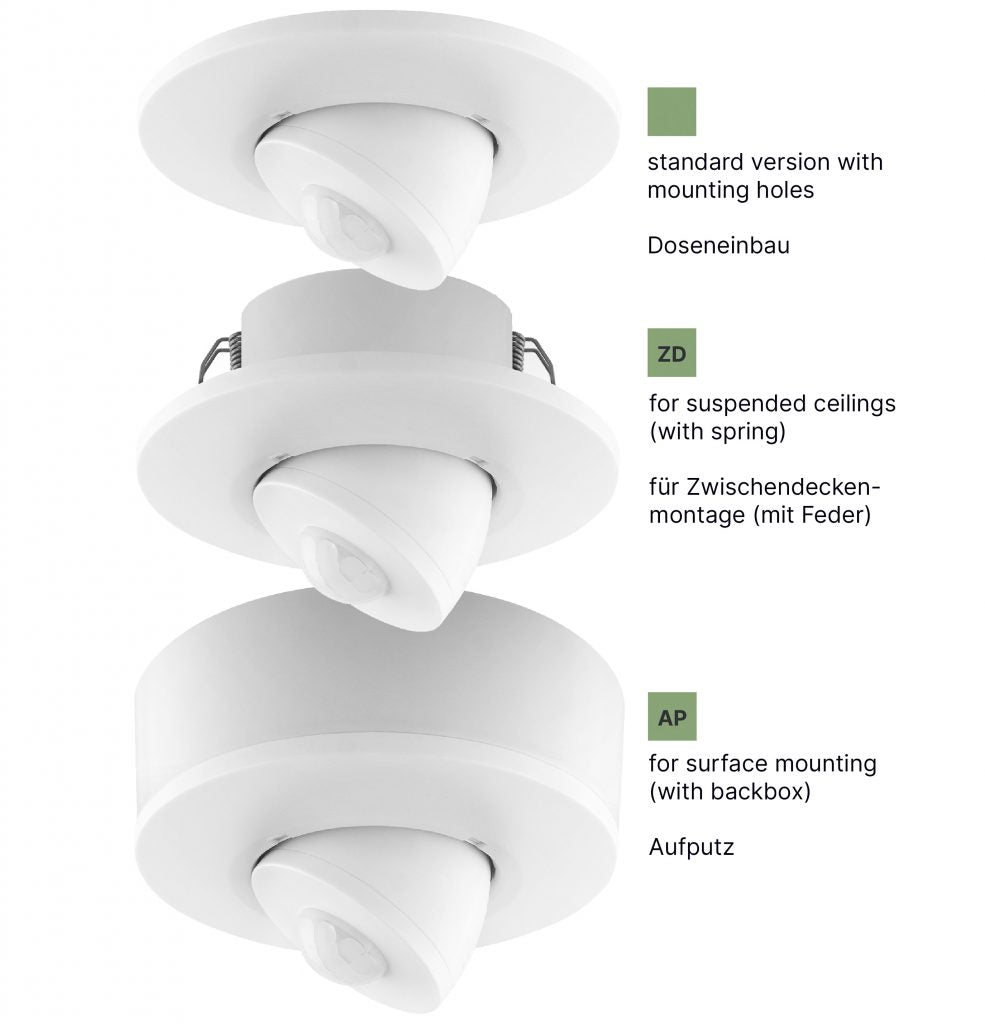

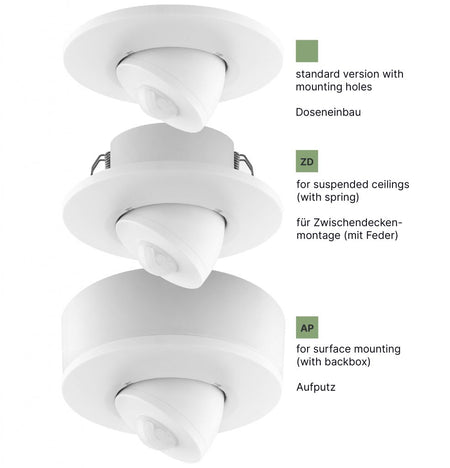

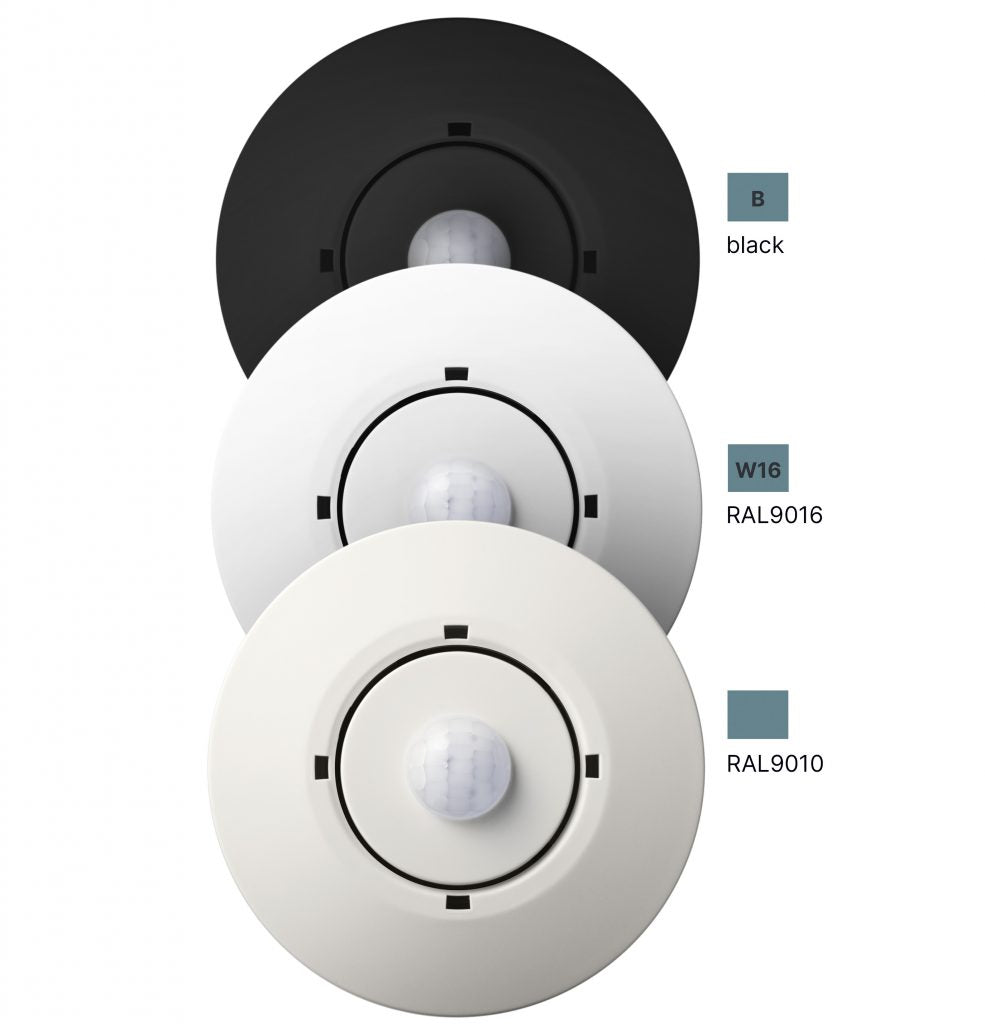

Colours: RAL 9010, RAL 9016 or black. Mountings: standard holes, surface with backbox (AP), or suspended-ceiling spring (ZD).
Technical specifications
| Supply | DALI bus, 4.5mA |
| Light sensor | 0–2047 lux, 1 lux resolution |
| Dimensions | 98 × 98 × 18 (max. 42) mm |
| Ambient temperature | -20°C to +60°C · IP20 (IP54 versions available) |
Sensor logic in the controller instead? See the DALI-2 CS with built-in application controller.
Orders over $500 ship free within the USA (under 50 lbs). Orders under $500 carry a low cost shipping fee.
Most in-stock orders ship within 1–2 business days from Miami, FL. Delivery typically takes 3–5 business days depending on destination.
For freight or oversized orders, our team will contact you with a custom quote.
All KNXSupply products are covered by the manufacturer's warranty, ranging from 1 to 3 years depending on the brand. Warranty terms are fulfilled directly by the manufacturer.
If you experience any issue, contact us and we'll coordinate the claim process on your behalf.
Buy in bulk
| Variant | Quantity | Price | Total |
|---|---|---|---|
|
PIR 12m / White RAL9010 / Standard
86458670-INT
|
|
||
|
PIR 12m / White RAL9010 / Surface (AP)
86458670-INT-AP
|
|
||
|
PIR 12m / White RAL9010 / Ceiling Spring (ZD)
86458670-INT-ZD
|
|
||
|
PIR 12m / White RAL9016 / Standard
86458670-INT-W16
|
|
||
|
PIR 12m / White RAL9016 / Surface (AP)
86458670-INT-W16-AP
|
|
||
|
PIR 12m / White RAL9016 / Ceiling Spring (ZD)
86458670-INT-W16-ZD
|
|
||
|
PIR 12m / Black / Standard
86458670-INT-B
|
|
||
|
PIR 12m / Black / Surface (AP)
86458670-INT-B-AP
|
|
||
|
PIR 12m / Black / Ceiling Spring (ZD)
86458670-INT-B-ZD
|
|
||
|
Presence Office 2.5m / White RAL9010 / Standard
86458670-INT-O
|
|
||
|
Presence Office 2.5m / White RAL9010 / Surface (AP)
86458670-INT-O-AP
|
|
||
|
Presence Office 2.5m / White RAL9010 / Ceiling Spring (ZD)
86458670-INT-O-ZD
|
|
||
|
Presence Office 2.5m / White RAL9016 / Standard
86458670-INT-O-W16
|
|
||
|
Presence Office 2.5m / White RAL9016 / Surface (AP)
86458670-INT-O-W16-AP
|
|
||
|
Presence Office 2.5m / White RAL9016 / Ceiling Spring (ZD)
86458670-INT-O-W16-ZD
|
|
||
|
Presence Office 2.5m / Black / Standard
86458670-INT-O-B
|
|
||
|
Presence Office 2.5m / Black / Surface (AP)
86458670-INT-O-B-AP
|
|
||
|
Presence Office 2.5m / Black / Ceiling Spring (ZD)
86458670-INT-O-B-ZD
|
|
||
|
PIR 15m / White RAL9010 / Standard
86458670-INT-15
|
|
||
|
PIR 15m / White RAL9010 / Surface (AP)
86458670-INT-15-AP
|
|
||
|
PIR 15m / White RAL9010 / Ceiling Spring (ZD)
86458670-INT-15-ZD
|
|
||
|
PIR 15m / White RAL9016 / Standard
86458670-INT-15-W16
|
|
||
|
PIR 15m / White RAL9016 / Surface (AP)
86458670-INT-15-W16-AP
|
|
||
|
PIR 15m / White RAL9016 / Ceiling Spring (ZD)
86458670-INT-15-W16-ZD
|
|
||
|
PIR 15m / Black / Standard
86458670-INT-15-B
|
|
||
|
PIR 15m / Black / Surface (AP)
86458670-INT-15-B-AP
|
|
||
|
PIR 15m / Black / Ceiling Spring (ZD)
86458670-INT-15-B-ZD
|
|
||
|
PIR 10x30m / White RAL9010 / Standard
86458670-INT-30
|
|
||
|
PIR 10x30m / White RAL9010 / Surface (AP)
86458670-INT-30-AP
|
|
||
|
PIR 10x30m / White RAL9010 / Ceiling Spring (ZD)
86458670-INT-30-ZD
|
|
||
|
PIR 10x30m / White RAL9016 / Standard
86458670-INT-30-W16
|
|
||
|
PIR 10x30m / White RAL9016 / Surface (AP)
86458670-INT-30-W16-AP
|
|
||
|
PIR 10x30m / White RAL9016 / Ceiling Spring (ZD)
86458670-INT-30-W16-ZD
|
|
||
|
PIR 10x30m / Black / Standard
86458670-INT-30-B
|
|
||
|
PIR 10x30m / Black / Surface (AP)
86458670-INT-30-B-AP
|
|
||
|
PIR 10x30m / Black / Ceiling Spring (ZD)
86458670-INT-30-B-ZD
|
|
||
|
PIR 10x30m IP54 / White RAL9010 / Standard
86458670-INT-30-IP54
|
|
||
|
PIR 10x30m IP54 / White RAL9010 / Surface (AP)
86458670-INT-30-AP-IP54
|
|
||
|
PIR 10x30m IP54 / White RAL9010 / Ceiling Spring (ZD)
86458670-INT-30-ZD-IP54
|
|
||
|
PIR 10x30m IP54 / White RAL9016 / Standard
86458670-INT-30-W16-IP54
|
|
||
|
PIR 10x30m IP54 / White RAL9016 / Surface (AP)
86458670-INT-30-W16-AP-IP54
|
|
||
|
PIR 10x30m IP54 / White RAL9016 / Ceiling Spring (ZD)
86458670-INT-30-W16-ZD-IP54
|
|
||
|
PIR 10x30m IP54 / Black / Standard
86458670-INT-30-B-IP54
|
|
||
|
PIR 10x30m IP54 / Black / Surface (AP)
86458670-INT-30-B-AP-IP54
|
|
||
|
PIR 10x30m IP54 / Black / Ceiling Spring (ZD)
86458670-INT-30-B-ZD-IP54
|
|
||
|
Corridor Wide 5m / White RAL9010 / Standard
86458670-INT-C
|
|
||
|
Corridor Wide 5m / White RAL9010 / Surface (AP)
86458670-INT-C-AP
|
|
||
|
Corridor Wide 5m / White RAL9010 / Ceiling Spring (ZD)
86458670-INT-C-ZD
|
|
||
|
Corridor Wide 5m / White RAL9016 / Standard
86458670-INT-C-W16
|
|
||
|
Corridor Wide 5m / White RAL9016 / Surface (AP)
86458670-INT-C-W16-AP
|
|
||
|
Corridor Wide 5m / White RAL9016 / Ceiling Spring (ZD)
86458670-INT-C-W16-ZD
|
|
||
|
Corridor Wide 5m / Black / Standard
86458670-INT-C-B
|
|
||
|
Corridor Wide 5m / Black / Surface (AP)
86458670-INT-C-B-AP
|
|
||
|
Corridor Wide 5m / Black / Ceiling Spring (ZD)
86458670-INT-C-B-ZD
|
|
