DALI-2 CS Corridor – Wide-Angle Motion & Light Sensor
✗
UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or
equivalent). Installation in USA projects may require a Field Evaluation
by a recognized laboratory. Consult your local AHJ before specifying.
~
Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as
the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an
NRTL-listed power supply, many AHJs accept non-listed SELV devices.
Verify with your local AHJ before specifying.
Regular price
$156.96 USD
Regular price
-20%
$196.20 USD
Sale price
$156.96 USD
Couldn't load pickup availability
KNX & DALI Specialists
Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.
Free shipping over $500
KNX certified devices
Expert technical support
Got questions?
Feel free to get in touch
Ask an expert!

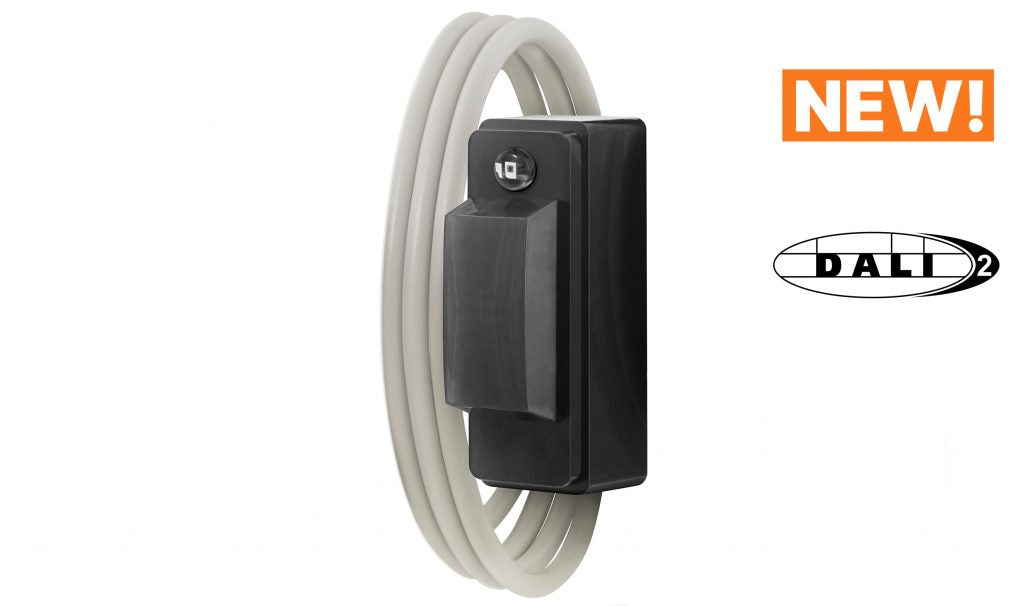

The Lunatone DALI-2 CS Corridor is a wall-mount motion sensor with a 150° horizontal hammerhead lens — purpose-built for corridors, stairwells and passageways where ceiling sensors waste coverage. The compact 44 × 16 × 22 mm black module detects movement up to 5m, measures light to deactivate detection when daylight suffices, and its integrated light control unit enables DALI constant light control. Works as application controller and in DALI-2 instance mode.
Key features

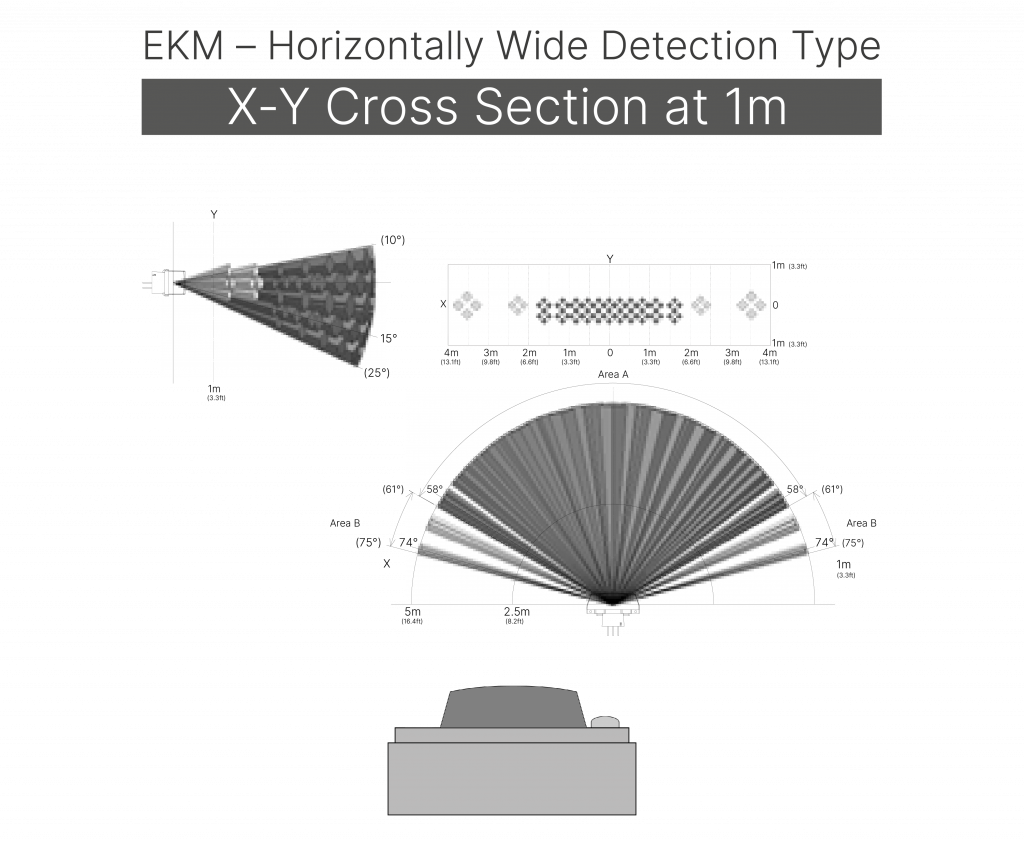

- 150° horizontal detection (±75°), 5m range, 88+16 zones — ideal for wall mounting along corridors
- DALI commands on motion to broadcast, groups or addresses via DALI Cockpit
- Constant light control; light sensor 0–2500 lux
- Sensors in one group synchronise automatically; surface or luminaire built-in, 350mm cable
- Bus powered (3.5mA), multimaster, DALI-2 certified · IP65 version for outdoor use
Technical specifications
| Supply | DALI bus, 3.5mA |
| Motion | PIR hammerhead, 5m, horizontal ±75°, vertical +10°/-25° |
| Dimensions | 44 × 16 × 22 mm · black |
| Ambient temperature | -20°C to +60°C |
Instance-mode-only version: DALI-2 CS Corridor Integration.
