DALI-2 CS Corridor Integration – Wide-Angle Motion & Light Sensor
✗
UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or
equivalent). Installation in USA projects may require a Field Evaluation
by a recognized laboratory. Consult your local AHJ before specifying.
~
Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as
the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an
NRTL-listed power supply, many AHJs accept non-listed SELV devices.
Verify with your local AHJ before specifying.
Regular price
$115.20 USD
Regular price
-20%
$144.00 USD
Sale price
$115.20 USD
Couldn't load pickup availability
KNX & DALI Specialists
Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.
Free shipping over $500
KNX certified devices
Expert technical support
Got questions?
Feel free to get in touch
Ask an expert!

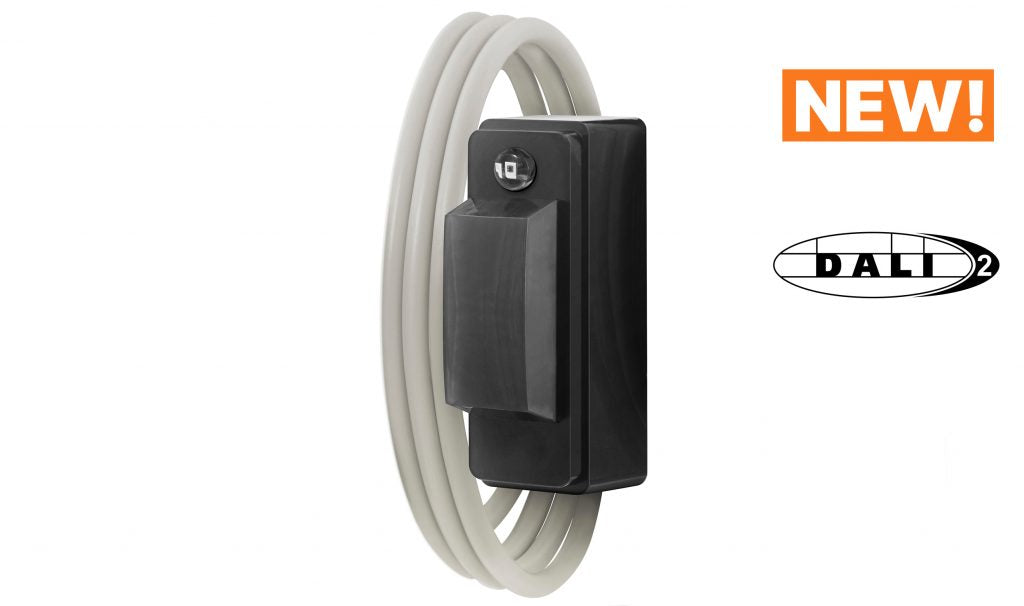

The Lunatone DALI-2 CS Corridor Integration is the instance-mode version of the Corridor sensor: the same 150° horizontal hammerhead lens (5m range) and light measurement in a 44 × 16 × 22 mm black module, publishing motion and light as DALI-2 instances for a central controller — DALI-2 CS Master, Lunatone SI PRO, WAGO, Beckhoff or KNX DALI-2 gateways. Values can be queried on demand or pushed as events. The wall-mount answer for corridor occupancy data in BMS projects.
Key features

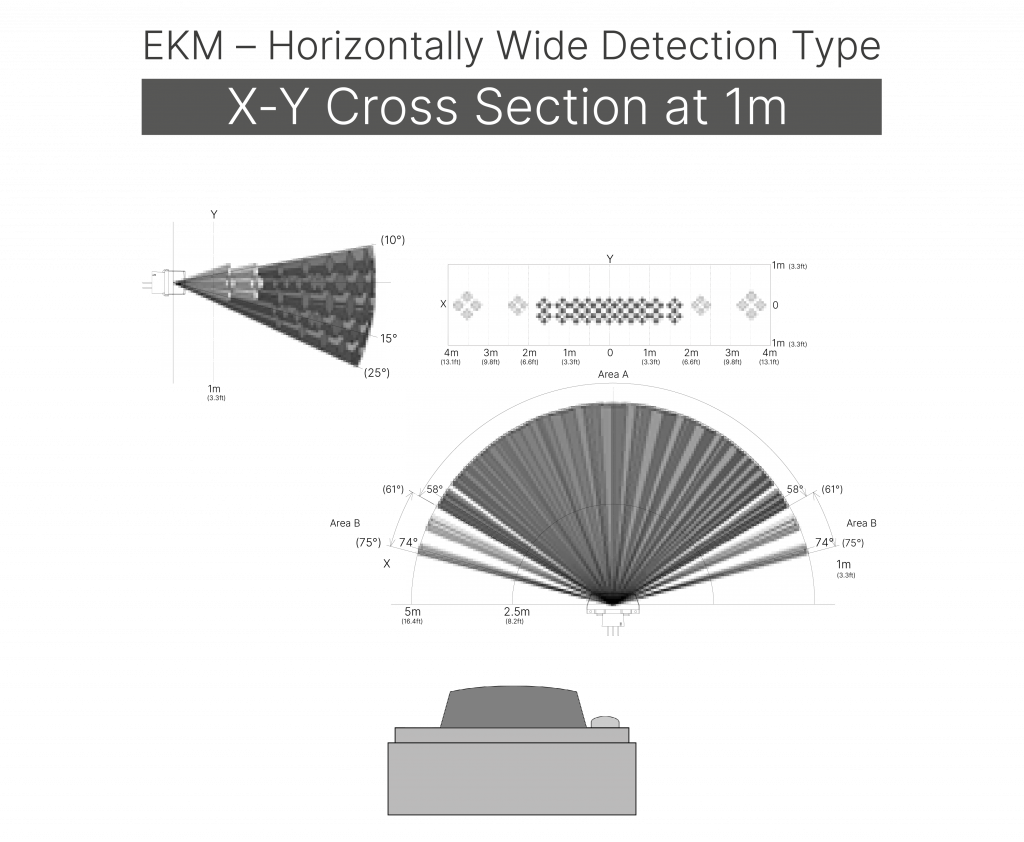

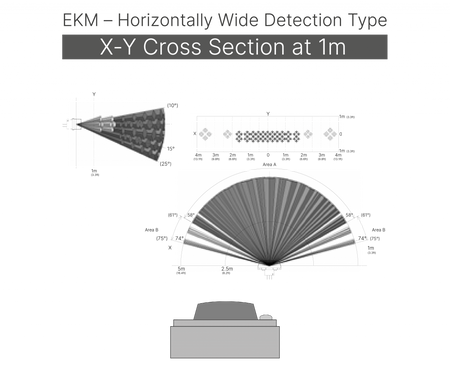

- 150° horizontal detection (±75°), 5m range — ideal for wall mounting along corridors
- DALI-2 instance mode; multiple sensors per system
- Surface or luminaire built-in, 350mm cable
- Bus powered (3.5mA), multimaster, DALI-2 certified · IP65 version for outdoor use
Technical specifications
| Supply | DALI bus, 3.5mA |
| Motion | PIR hammerhead, 5m, horizontal ±75°, vertical +10°/-25° |
| Dimensions | 44 × 16 × 22 mm · black |
| Ambient temperature | -20°C to +60°C |
With built-in application controller: DALI-2 CS Corridor.
