DALI-2 1Ch LED Power Supply
✗
UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or
equivalent). Installation in USA projects may require a Field Evaluation
by a recognized laboratory. Consult your local AHJ before specifying.
⚡
Mains Voltage · No US Cert
This device operates with or switches mains voltage (120/240VAC) and
has not been certified by an NRTL. USA installation requires a Field
Evaluation by a recognized laboratory and explicit AHJ approval.
Regular price
$95.04 USD
Regular price
-20%
$118.80 USD
Sale price
$95.04 USD
Couldn't load pickup availability
KNX & DALI Specialists
Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.
Free shipping over $500
KNX certified devices
Expert technical support
Got questions?
Feel free to get in touch
Ask an expert!

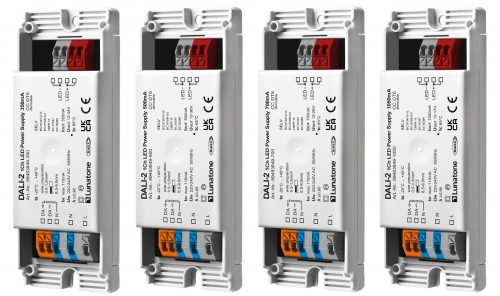

The Lunatone DALI-2 1Ch LED Power Supply is driver and dimmer in one: 230V AC in, dimmable constant-current out, controlled directly via DALI (DT6) or SwitchDim2 — no separate driver needed at the luminaire. Secure isolation between mains and DALI, remote-ceiling format, expected lifespan over 50,000h.
Key features
- Integrated DALI DT6 dimming; SwitchDim2 alternative control
- CC outputs from 250mA to 1050mA (output voltage windows per rating, 12–44V down to 12–17V)
- Configurable power-on behaviour; DALI-2 certified per rating
- Power factor >0.95, inrush <0.2A · 120 × 41 × 22 mm
Technical specifications
| Input | 220–240V AC, 50–60Hz |
| Output | 250–1050mA CC depending on version |
| Control | DALI DT6 / SwitchDim2, 1 address |
| Dimensions | 120 × 41 × 22 mm · IP20 · -20°C to +45°C |
Tunable white in the same format: DALI-2 CW-WW LED Power Supply.
