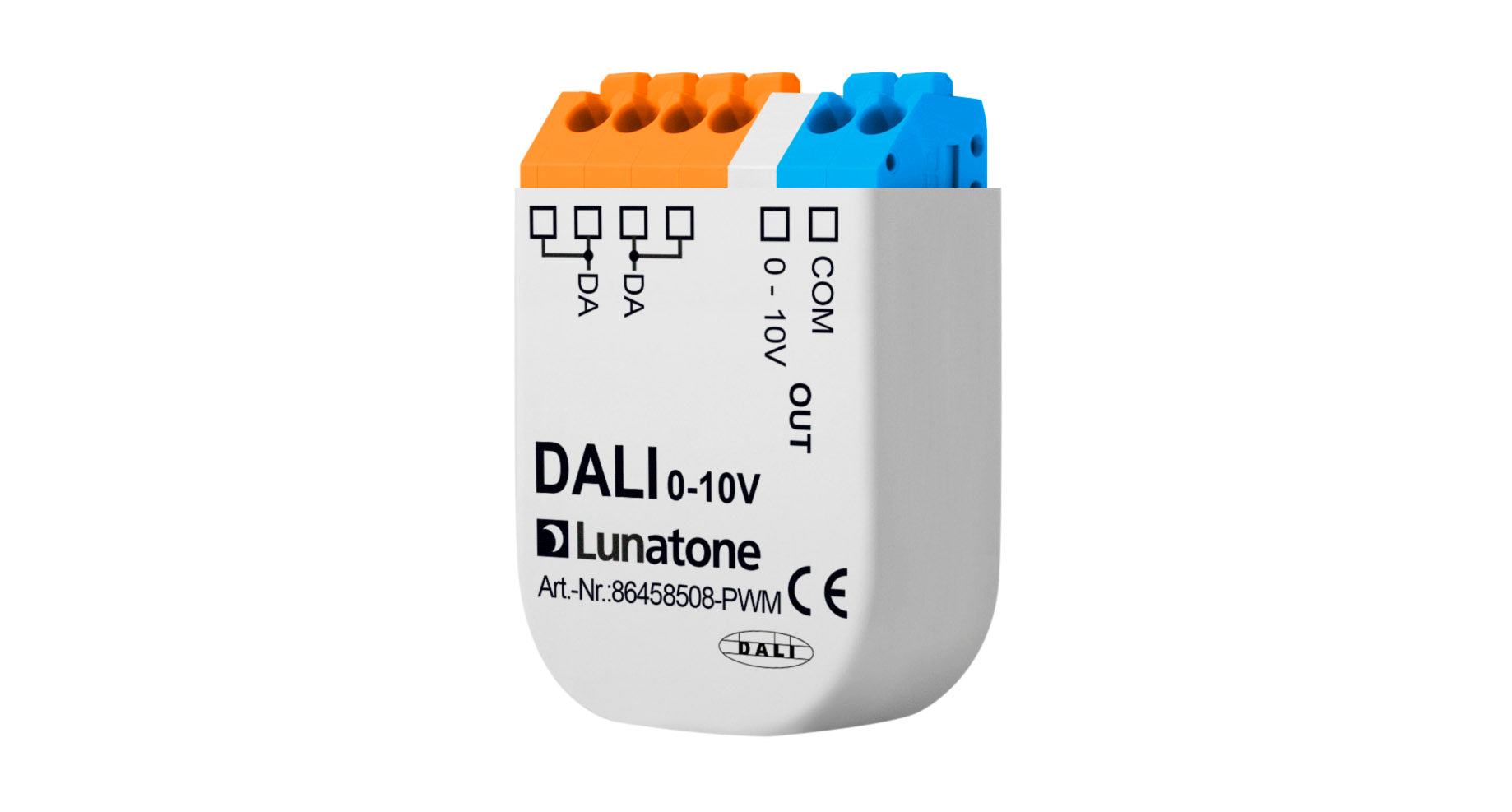

DALI 0-10V PWM 1mA galv. getrennt

Converter DALI to 0-10V PWM 1mA, lin/log, elec. Isolated, built in

• The interface is supplied directly via the DALI signal line.
• It must not be connected to the mains.
• A typical value of the current consumption is approximately 3.1 mA.
• For supplying components on a DALI line the installation of a DALI power supply (DALI PS) is necessary.
• The connection to the DALI line is polarity free.
• Internally the DALI-terminals are connected through as visualized on the housing.

• The PWM output supports sinking currents up to 1mA.
• The terminals allow cross sections of the connection wire from 0.5 to 1.5 mm2

Function

• The DALI 0-10V PWM interface converts the desired DALI dim level in a corresponding PWM-pattern.
• Up from firmware 2.0 DALI device type 5 is supported.
• This allows the selection of the control characteristic with respect to output range (0-10V/1-10V) and dimming curve (linear/logarithmic).
• The relationship is clearly presented by the control characteristic diagram.
• The maximum output current is 1mA (current sink).
