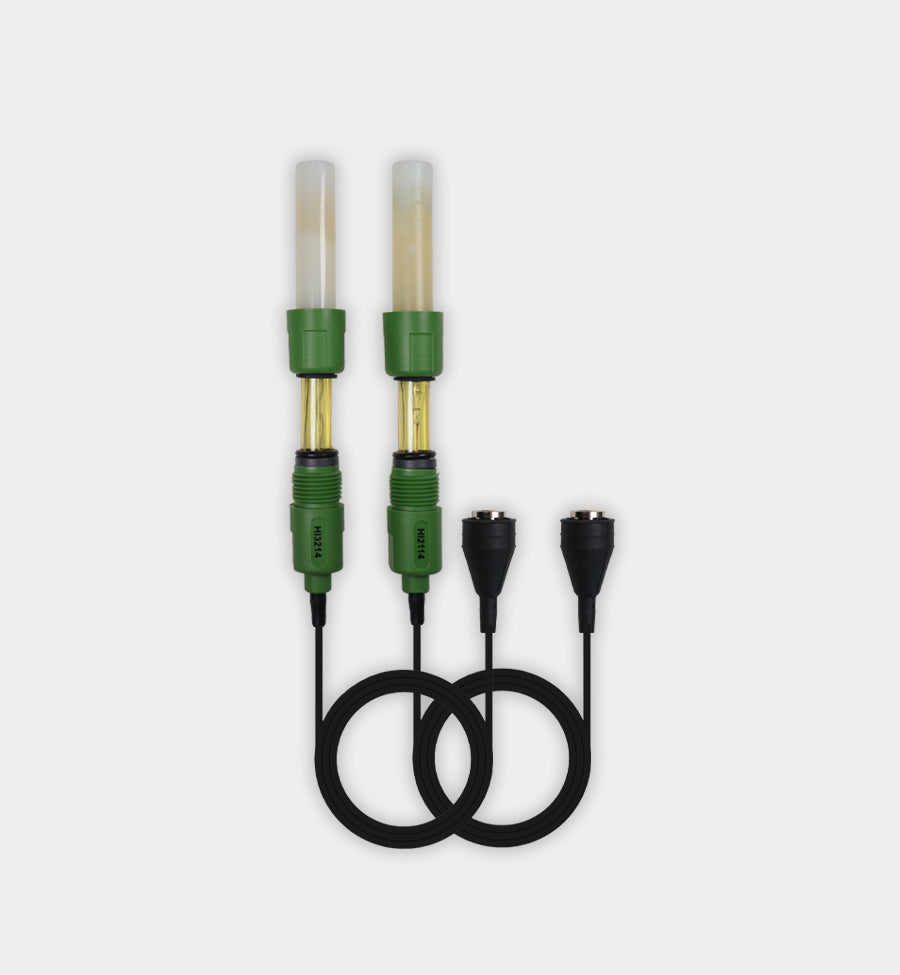

This set contains one pH and one redox (ORP) standard combination electrode for the SK80-WAQ water quality measuring system. Use it to equip the SK80-WAQ supplied without probes, or to replace worn electrodes on an existing installation.

The electrodes screw in hand-tight with a 3/4" x 16UNF / PG 13.5 thread and are installed in a bypass line. Service life is typically 1 to 3 years at room temperature and a few months at 60 to 80 °C (140 to 176 °F).

Key Features

  • 1 x pH electrode HI2114P, range 0 to 13 pH
  • 1 x ORP/redox electrode HI3214P, range 0 to 2000 mV
  • 3/4" x 16UNF / PG 13.5 thread, hand-tight installation in a bypass line
  • Operating temperature 0 to +80 °C (32 to 176 °F)
  • Service life 1 to 3 years at room temperature, a few months at 60 to 80 °C (140 to 176 °F)

Technical Specifications

Article no. 91110020
Measuring pH 0-13 (HI2114P) and ORP 0-2000 mV (HI3214P)
Mounting Screw-in thread 3/4in x 16UNF / PG 13.5, install in bypass
Operating temperature 0 to +80 °C (32 to 176 °F)

Application note: Fits the SK80-WAQ (supplied without probes) and serves as a replacement set for the SK80-WAQ-MES.
