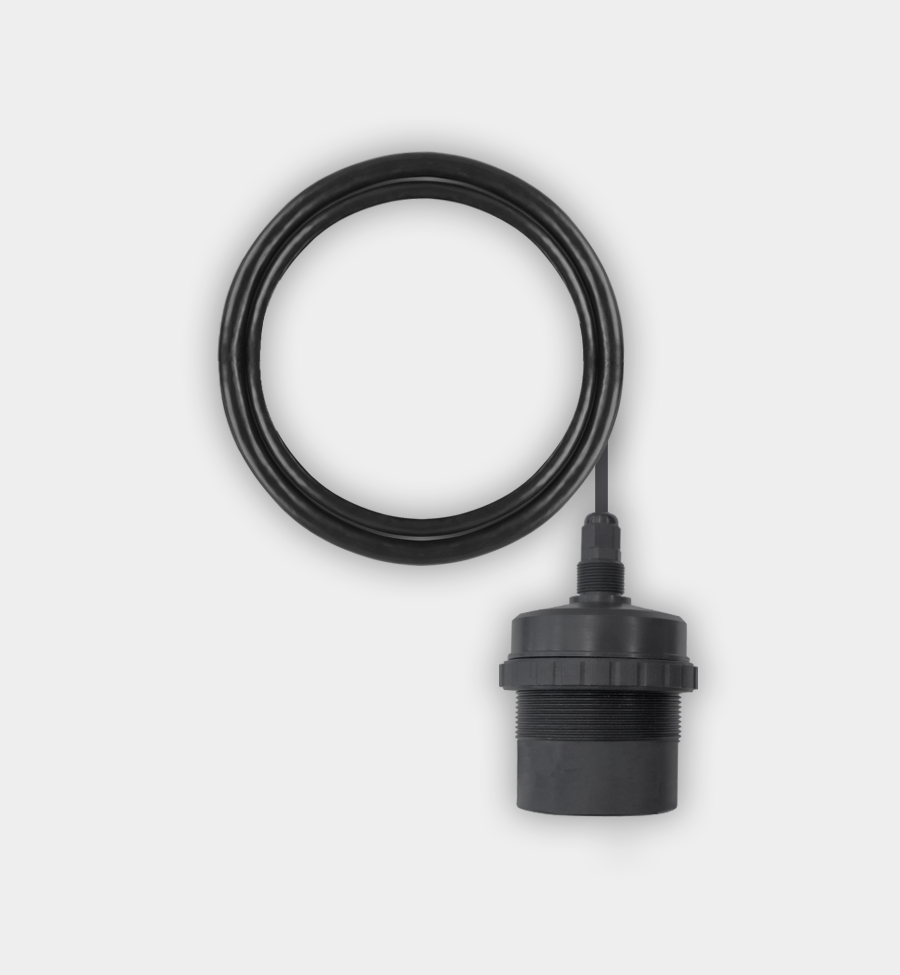

U-5 - Ultrasonic Level Sensor for Water, 0.3-5 m (1 to 16.4 ft) Range, 10 m (32.8 ft) Cable

SKU: 90800105
(0)
✗ UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or equivalent). Installation in USA projects may require a Field Evaluation by a recognized laboratory. Consult your local AHJ before specifying.
~ Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an NRTL-listed power supply, many AHJs accept non-listed SELV devices. Verify with your local AHJ before specifying.
$224.85 USD
-38% $359.77 USD $224.85 USD
In stock
On backorder
KNX & DALI Specialists

Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.

Free shipping over $500
KNX certified devices
Expert technical support

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +1 (786) 956-6821

The U-5 is a replacement ultrasonic sensor head for the arcus SK80-F KNX fill-level meter. It measures tank levels from 300 to 5,000 mm (11.8 to 196.9 in) with 0.5 % FS accuracy and also reports temperature.

The sensor mounts at the top of the tank facing down, with at least 30 cm (11.8 in) of clearance to the full level. It ships on a 10 m (32.8 ft) cable, is rated IP65 and is intended for drinking, domestic and rain water. Power comes from the SK80-F control unit.

Key Features

  • Ultrasonic measurement, 300-5,000 mm (11.8 to 196.9 in) range, 0.5 % FS accuracy
  • Integrated temperature measurement
  • Media: drinking, domestic and rain water
  • Tank-top mounting facing down, min. 30 cm (11.8 in) clearance to full level
  • 12 VDC supplied by the SK80-F control unit
  • IP65, 68 x 80 mm (2.68 x 3.15 in), 10 m (32.8 ft) cable, -10 to +50 °C (14 to 122 °F)

Technical Specifications

Article no. 90800105
Power consumption 12 VDC supplied by the SK80-F control unit
Auxiliary supply None (powered from SK80-F unit)
Measuring 300-5000 mm (11.8 to 196.9 in), accuracy 0.5 % FS, with temperature
Protection rating IP65
Dimensions 68 x 80 mm (2.68 x 3.15 in) (D x L)
Mounting Mounted at tank top, facing down (min. 30 cm (11.8 in) clearance to full level)
Operating temperature -10 to +50 °C (14 to 122 °F)

Application note: Spare sensor head for the arcus SK80-F KNX fill-level meter; it is powered and read by the SK80-F control unit.
