Touch_IT-PC35 - KNX 3.5" Color Touch Panel with Temperature Sensor, Flush Mount
✗
UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or
equivalent). Installation in USA projects may require a Field Evaluation
by a recognized laboratory. Consult your local AHJ before specifying.
~
Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as
the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an
NRTL-listed power supply, many AHJs accept non-listed SELV devices.
Verify with your local AHJ before specifying.
Regular price
$519.40 USD
Regular price
-31%
$747.94 USD
Sale price
$519.40 USD
Couldn't load pickup availability
KNX & DALI Specialists
Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.
Free shipping over $500
KNX certified devices
Expert technical support
Got questions?
Feel free to get in touch
Ask an expert!

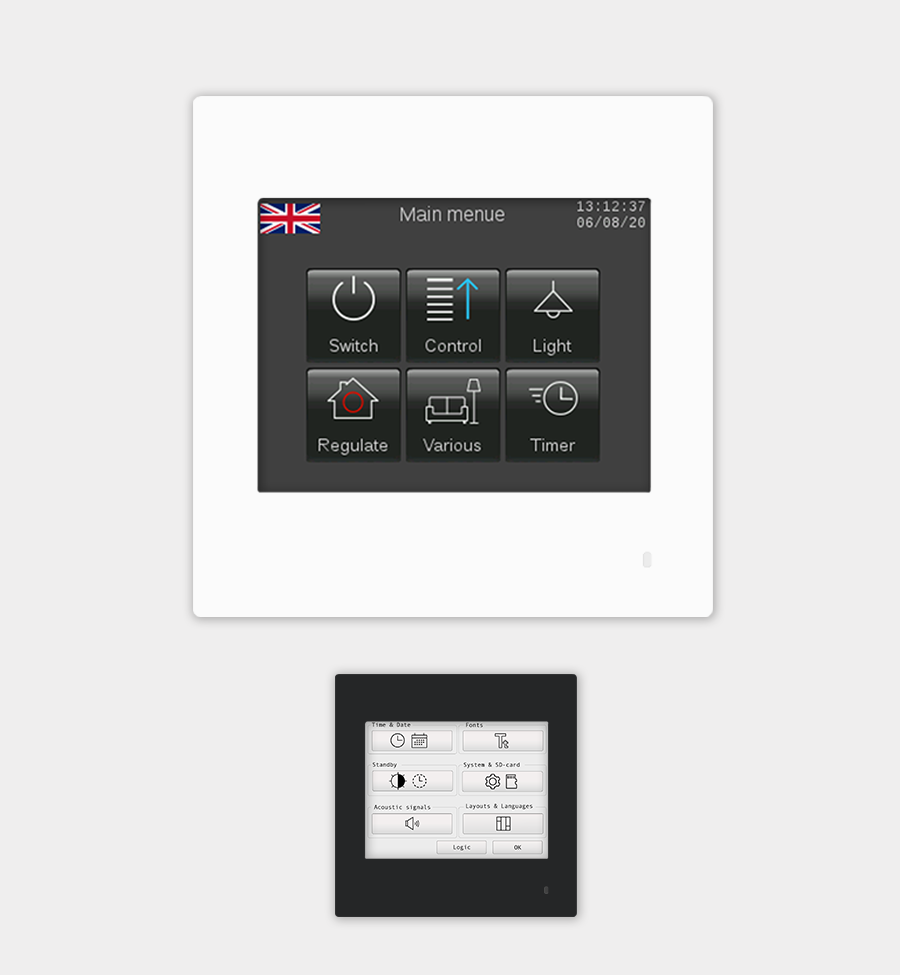

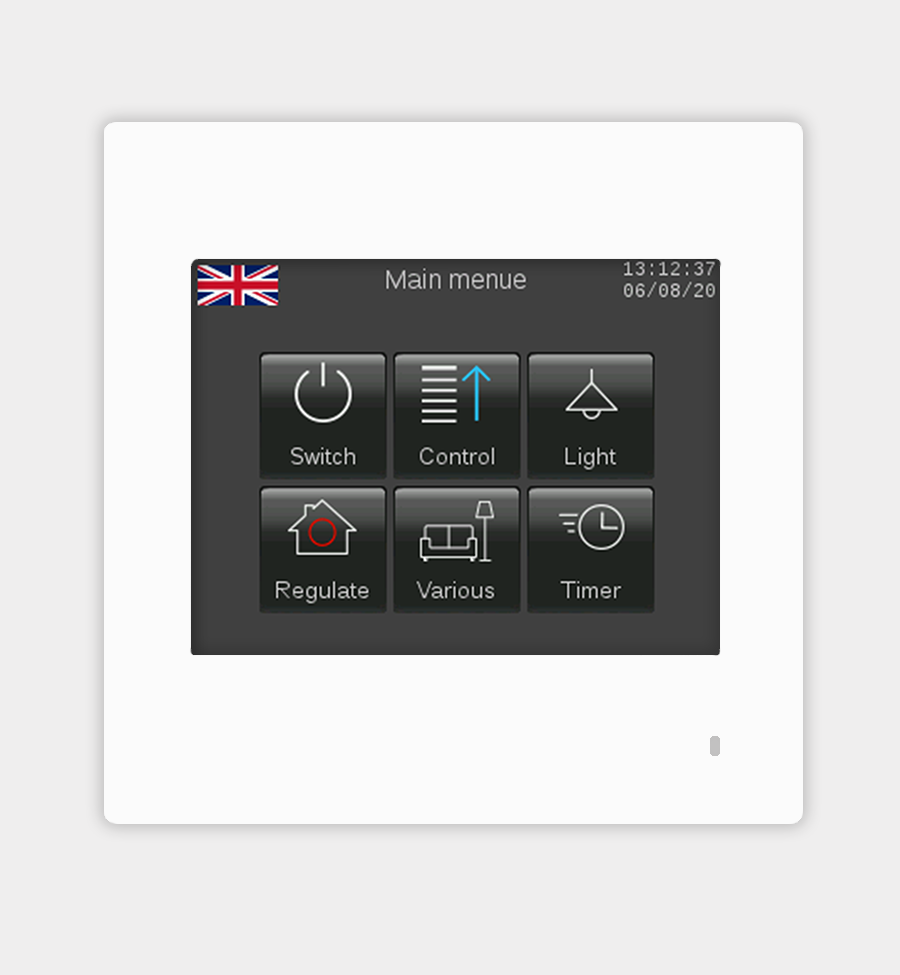

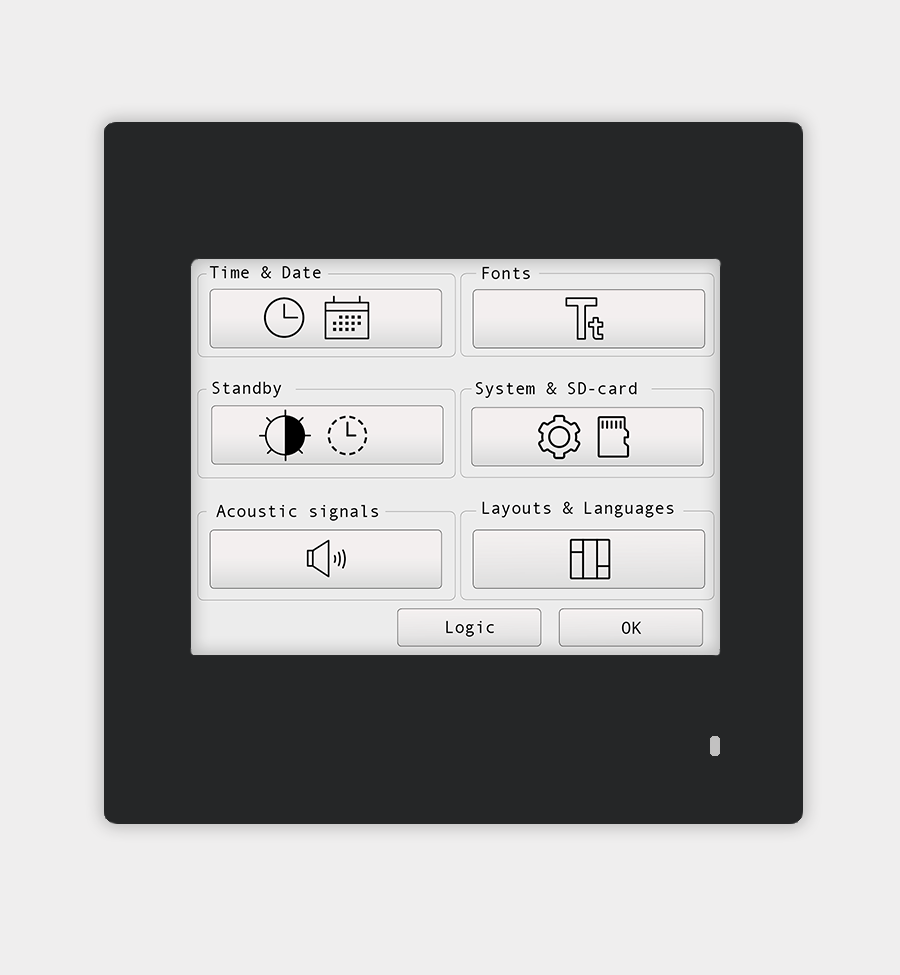

The Touch_IT-PC35 is a compact 3.5-inch color KNX touch panel in a PC-ABS plastic housing that mounts on a standard 60/68 mm (2.36/2.68 in) round in-wall box. It shows up to 8 control elements per page across several pages, giving occupants a clear local control point for the KNX installation.
A built-in temperature sensor lets the panel act as a room thermostat. It is configured in ETS with the Touch_IT_V2 application and requires a 9-32 VDC auxiliary supply in addition to the KNX bus. Available in white or black.
Key Features
- 3.5" color TFT touchscreen, 320 x 240 px
- Up to 8 control elements per page across multiple pages
- Integrated temperature sensor for room temperature control
- Flush mount on standard 60/68 mm (2.36/2.68 in) in-wall box; 96 x 96 x 15 mm (3.78 x 3.78 x 0.59 in), IP20
- Requires 9-32 VDC auxiliary supply (approx. 1.0-2.5 W) plus KNX bus
- Micro USB, Micro SD slot (up to 32 GB), signal LED and buzzer
- ETS application Touch_IT_V2
Technical Specifications
| Article no. | 22413201 (White), 22413204 (Black) |
|---|---|
| KNX bus voltage | KNX 21-32 VDC (bus current < 5 mA) |
| Power consumption | approx. 60 mA at 24 VDC on aux supply (1.0-2.5 W) |
| Auxiliary supply | 9-32 VDC (required, white/yellow terminal) |
| Measuring | Integrated temperature sensor |
| Inputs / outputs & connections | KNX terminal red/grey, aux terminal white/yellow, Micro USB, Micro SD (max 32 GB); white signal LED, buzzer |
| Protection rating | IP20 |
| Dimensions | 96 x 96 x 15 mm (3.78 x 3.78 x 0.59 in) (W x H x D) |
| Mounting | Flush mount on standard in-wall box (60/68 mm (2.36/2.68 in), German/Swiss) |
| Operating temperature | -5 to +45 °C (23 to 113 °F) (storage -20 to +55 °C (-4 to 131 °F)) |
Downloads
(CE certified; not UL/NRTL listed — verify local code requirements before specifying in US installations)
Orders over $500 ship free within the USA (under 50 lbs). Orders under $500 carry a low cost shipping fee.
Most in-stock orders ship within 1–2 business days from Miami, FL. Delivery typically takes 3–5 business days depending on destination.
For freight or oversized orders, our team will contact you with a custom quote.
All KNXSupply products are covered by the manufacturer's warranty, ranging from 1 to 3 years depending on the brand. Warranty terms are fulfilled directly by the manufacturer.
If you experience any issue, contact us and we'll coordinate the claim process on your behalf.
