Touch_IT-AC4 IP65 - KNX 4.3" Capacitive Touchscreen in IP65 Aluminum Housing
Touch_IT-AC4 IP65 - KNX 4.3" Capacitive Touchscreen in IP65 Aluminum Housing

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

ARCUS EDS

Touch_IT-AC4 IP65 - KNX 4.3" Capacitive Touchscreen in IP65 Aluminum Housing

SKU: 22414065
(0)
✗ UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or equivalent). Installation in USA projects may require a Field Evaluation by a recognized laboratory. Consult your local AHJ before specifying.
~ Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an NRTL-listed power supply, many AHJs accept non-listed SELV devices. Verify with your local AHJ before specifying.
$742.94 USD
-31% $1,069.84 USD $742.94 USD
In stock
On backorder
KNX & DALI Specialists

Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.

Free shipping over $500
KNX certified devices
Expert technical support

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +1 (786) 956-6821

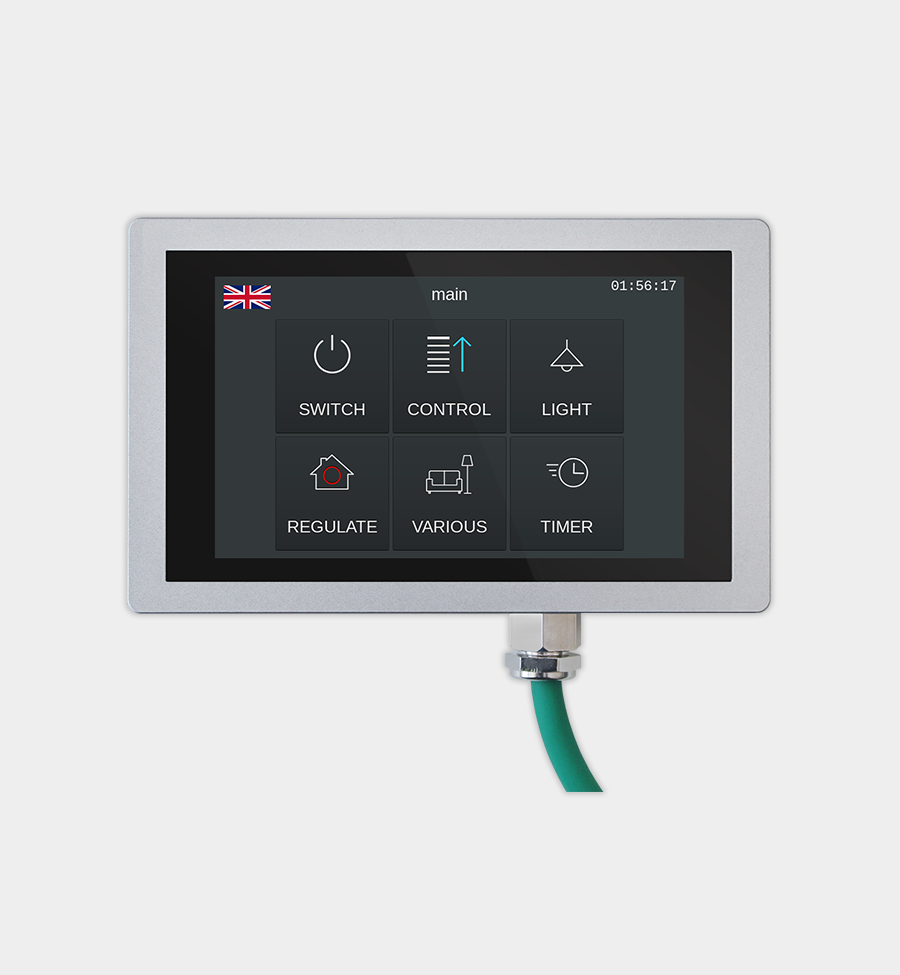

The Touch_IT-AC4 IP65 brings the 4.3-inch capacitive Touch_IT touchscreen into an anodized aluminum IP65 enclosure that is supplied ready for wall mounting. It is intended for damp locations and other areas where a standard flush-mounted panel would not be protected enough.

The panel provides multi-page KNX control and an integrated room temperature controller. This version has no built-in temperature sensor; the controller works with temperature values from other KNX sensors on the bus. Power comes from the KNX bus plus a 9-32 VDC auxiliary supply.

Key Features

  • 4.3" capacitive touchscreen, 480 x 800 px
  • IP65 anodized aluminum housing, 130 x 80 x 27 mm (5.12 x 3.15 x 1.06 in)
  • Surface/wall mounting, supplied ready to mount
  • Integrated room temperature controller using temperature values from other KNX sensors
  • No built-in temperature sensor
  • Requires 9-32 VDC / 2.5 W auxiliary supply plus KNX bus

Technical Specifications

Article no. 22414065
KNX bus voltage KNX 21-32 VDC (max. 10 mA)
Power consumption 2.5 W from aux supply
Auxiliary supply 9-32 VDC / 2.5 W (required)
Measuring No built-in temperature sensor; room temperature controller uses external KNX temperature values
Inputs / outputs & connections KNX 2-pole terminal, AUX 2-pole terminal
Protection rating IP65
Dimensions 130 x 80 x 27 mm (5.12 x 3.15 x 1.06 in)
Mounting Surface/wall mounted in IP65 housing (supplied ready to mount)
Operating temperature -5 to +45 °C (23 to 113 °F) (storage -20 to +55 °C (-4 to 131 °F)) per spec text
