Touch_IT-AC35 - KNX 3.5" Touch Panel with IR Temperature Sensor, Aluminum Front
✗
UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or
equivalent). Installation in USA projects may require a Field Evaluation
by a recognized laboratory. Consult your local AHJ before specifying.
~
Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as
the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an
NRTL-listed power supply, many AHJs accept non-listed SELV devices.
Verify with your local AHJ before specifying.
Regular price
$650.90 USD
Regular price
-31%
$937.29 USD
Sale price
$650.90 USD
Couldn't load pickup availability
KNX & DALI Specialists
Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.
Free shipping over $500
KNX certified devices
Expert technical support
Got questions?
Feel free to get in touch
Ask an expert!

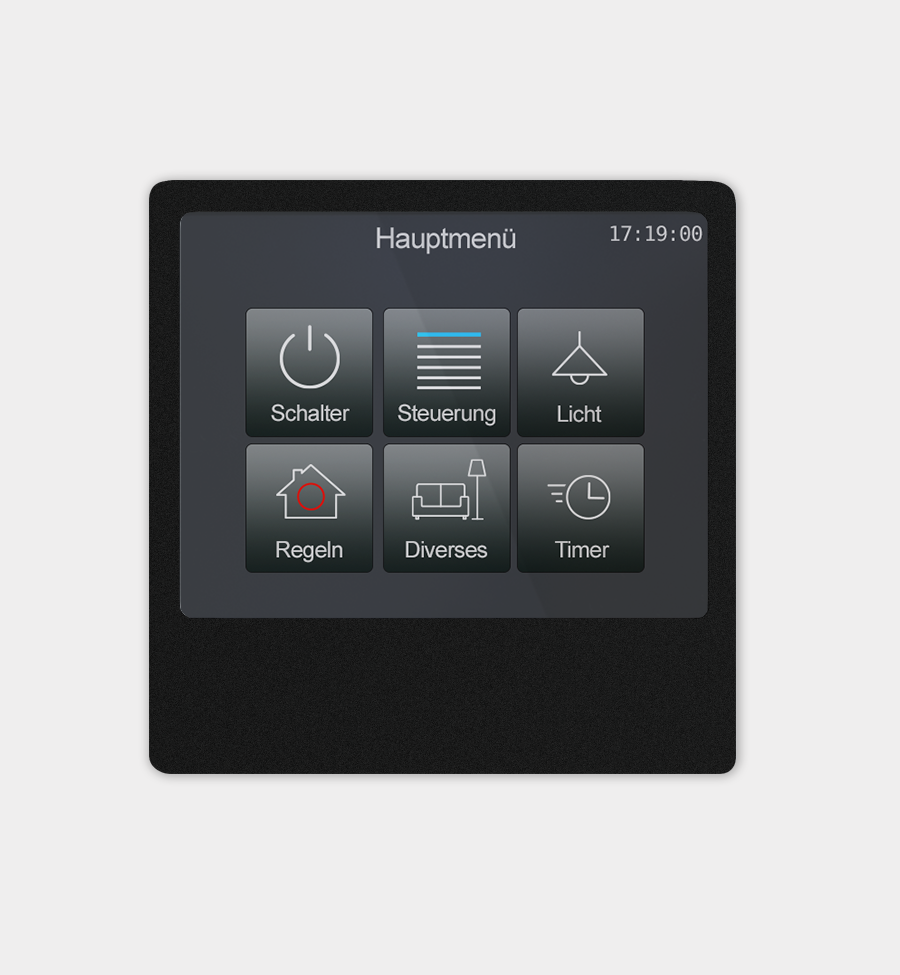

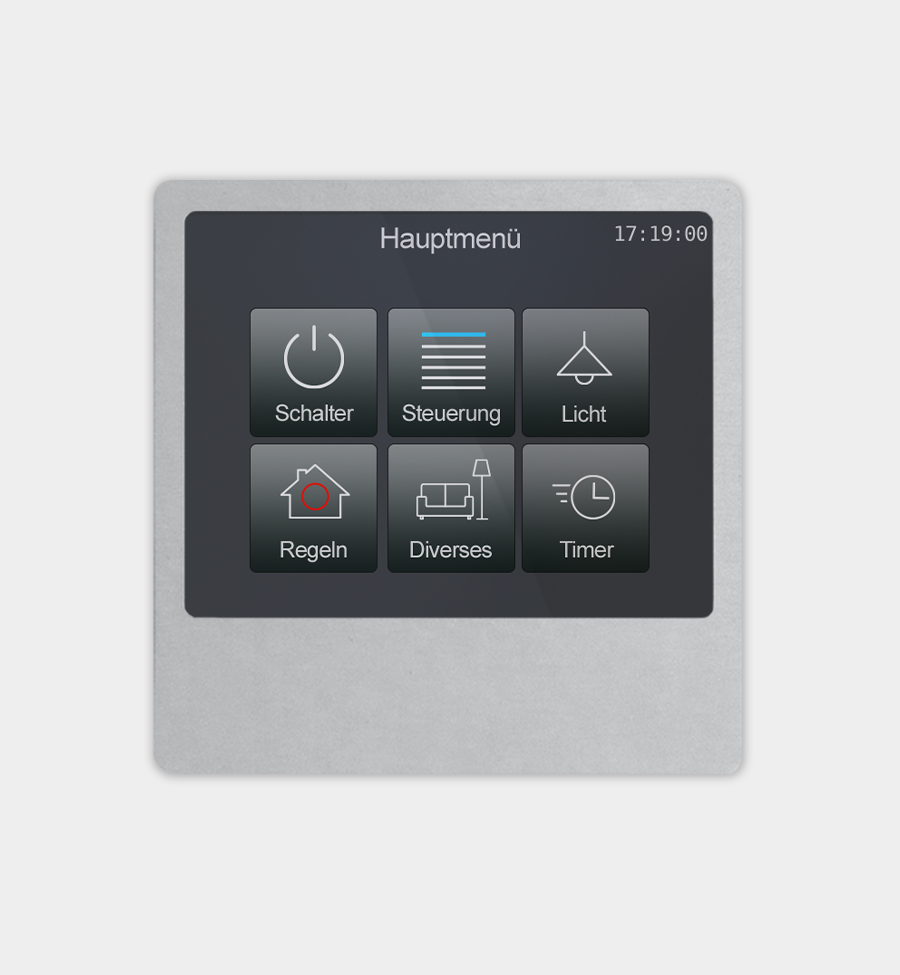

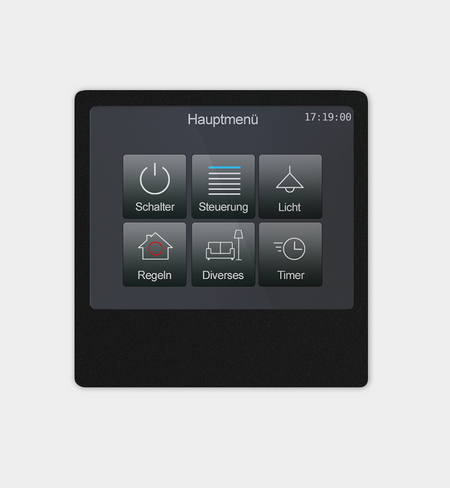

The Touch_IT-AC35 pairs a 3.5-inch color touch display with a sandblasted, anodized aluminum front for a clean architectural finish. It mounts on a standard 60/68 mm (2.36/2.68 in) in-wall box and offers 8 elements per page, with 5 control pages plus an alarm page or 6 control pages.

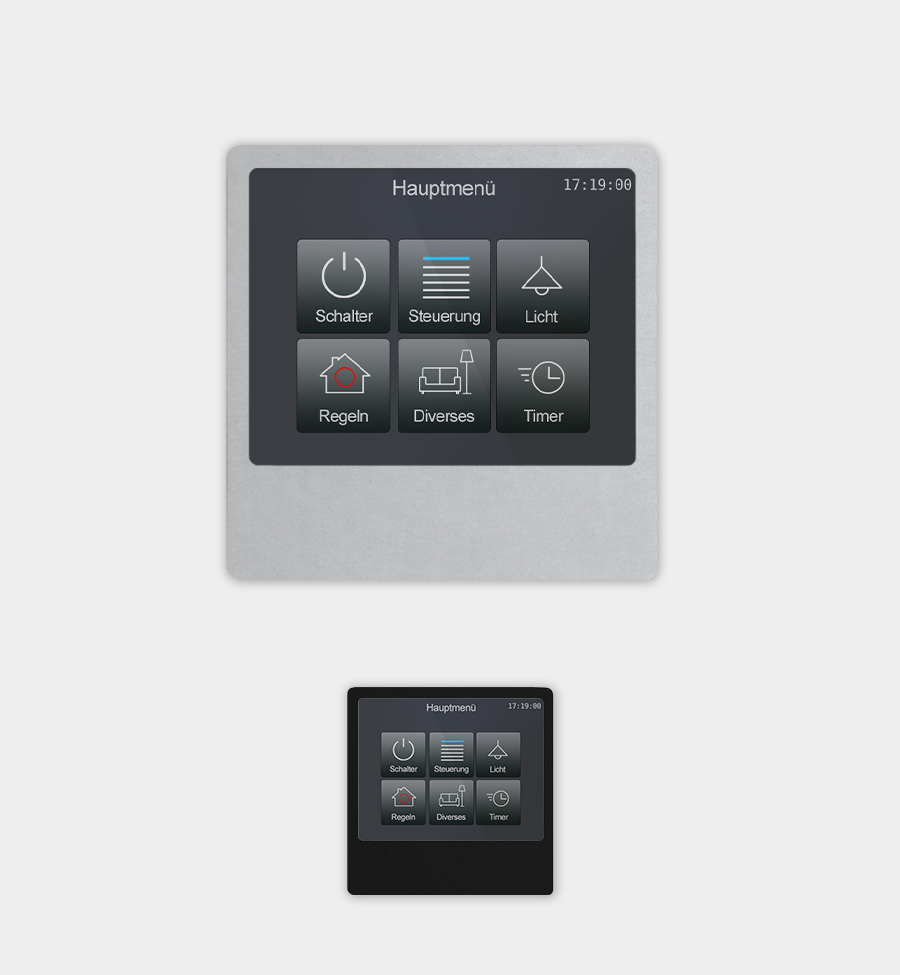

An integrated infrared temperature sensor allows use as a room temperature controller, and pages are configured in ETS. The panel runs on the KNX bus plus a 9-32 VDC auxiliary supply. Choose a natural silver or black anodized finish.
Key Features
- 3.5" TFT touchscreen, 320 x 240 px, 256k colors
- 8 elements per page (up to 4 objects each); 5 control pages + 1 alarm page, or 6 control pages
- Integrated infrared temperature sensor for room temperature control
- Sandblasted anodized aluminum front, 80 x 80 x 12 mm (3.15 x 3.15 x 0.47 in), IP20
- Flush mount on standard 60/68 mm (2.36/2.68 in) in-wall box
- Requires 9-32 VDC / 2.5 W auxiliary supply plus KNX bus
- Micro USB and Micro SD slot; configured in ETS
Technical Specifications
| Article no. | 22413103 (Silver Anodized), 22413104 (Black Anodized) |
|---|---|
| KNX bus voltage | KNX 21-32 VDC (max. 10 mA) |
| Power consumption | 2.5 W from aux supply |
| Auxiliary supply | 9-32 VDC / 2.5 W (required, yellow/white terminal) |
| Measuring | Integrated infrared temperature sensor |

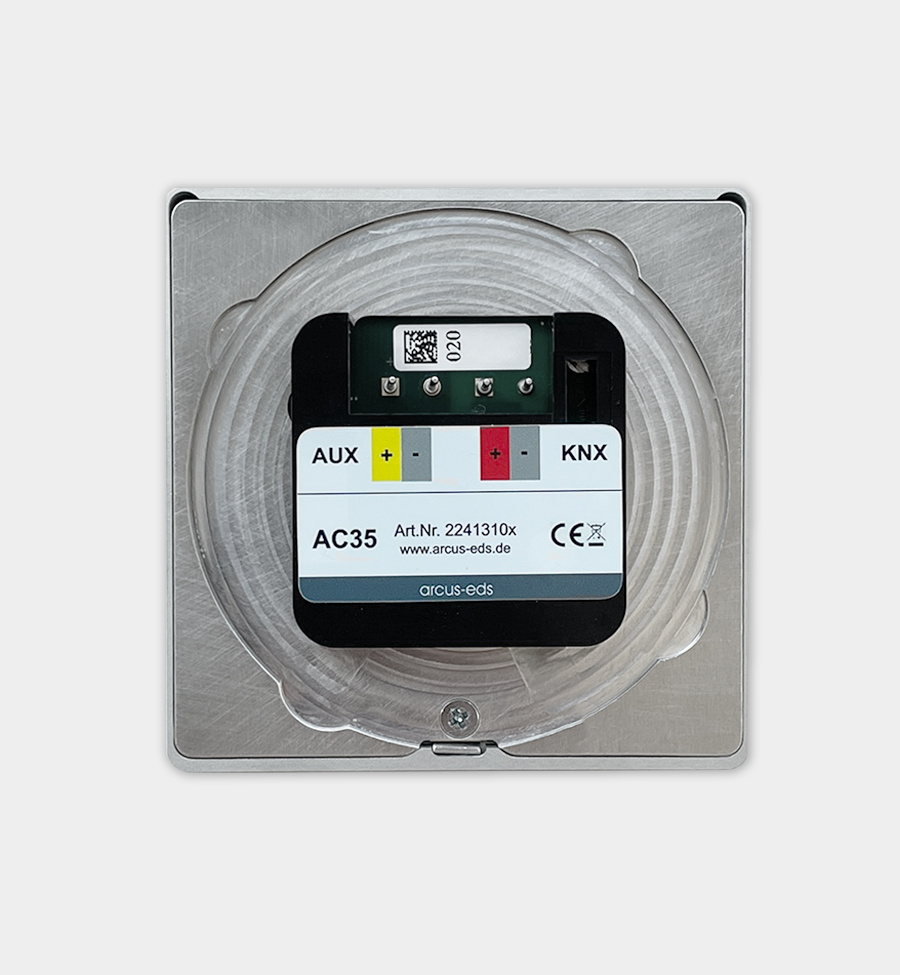

| Inputs / outputs & connections | KNX 2-pole terminal, AUX 2-pole terminal, Micro USB, Micro SD |
| Protection rating | IP20 |
| Dimensions | 80 x 80 x 12 mm (3.15 x 3.15 x 0.47 in) (L x W x H) |
| Mounting | Flush mount on standard in-wall box (60/68 mm (2.36/2.68 in)) |
| Operating temperature | -5 to +45 °C (23 to 113 °F) (storage -20 to +55 °C (-4 to 131 °F)) |
Downloads
(CE certified; not UL/NRTL listed — verify local code requirements before specifying in US installations)
Orders over $500 ship free within the USA (under 50 lbs). Orders under $500 carry a low cost shipping fee.
Most in-stock orders ship within 1–2 business days from Miami, FL. Delivery typically takes 3–5 business days depending on destination.
For freight or oversized orders, our team will contact you with a custom quote.
All KNXSupply products are covered by the manufacturer's warranty, ranging from 1 to 3 years depending on the brand. Warranty terms are fulfilled directly by the manufacturer.
If you experience any issue, contact us and we'll coordinate the claim process on your behalf.
