TH-CO2-RPFF - Room Pendulum Temperature, Humidity and CO2 Probe, 2 m (6.6 ft) Cable

SKU: 90100064
(0)
✗ UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or equivalent). Installation in USA projects may require a Field Evaluation by a recognized laboratory. Consult your local AHJ before specifying.
~ Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an NRTL-listed power supply, many AHJs accept non-listed SELV devices. Verify with your local AHJ before specifying.
$273.51 USD
-37% $437.61 USD $273.51 USD
In stock
On backorder
KNX & DALI Specialists

Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.

Free shipping over $500
KNX certified devices
Expert technical support

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +1 (786) 956-6821

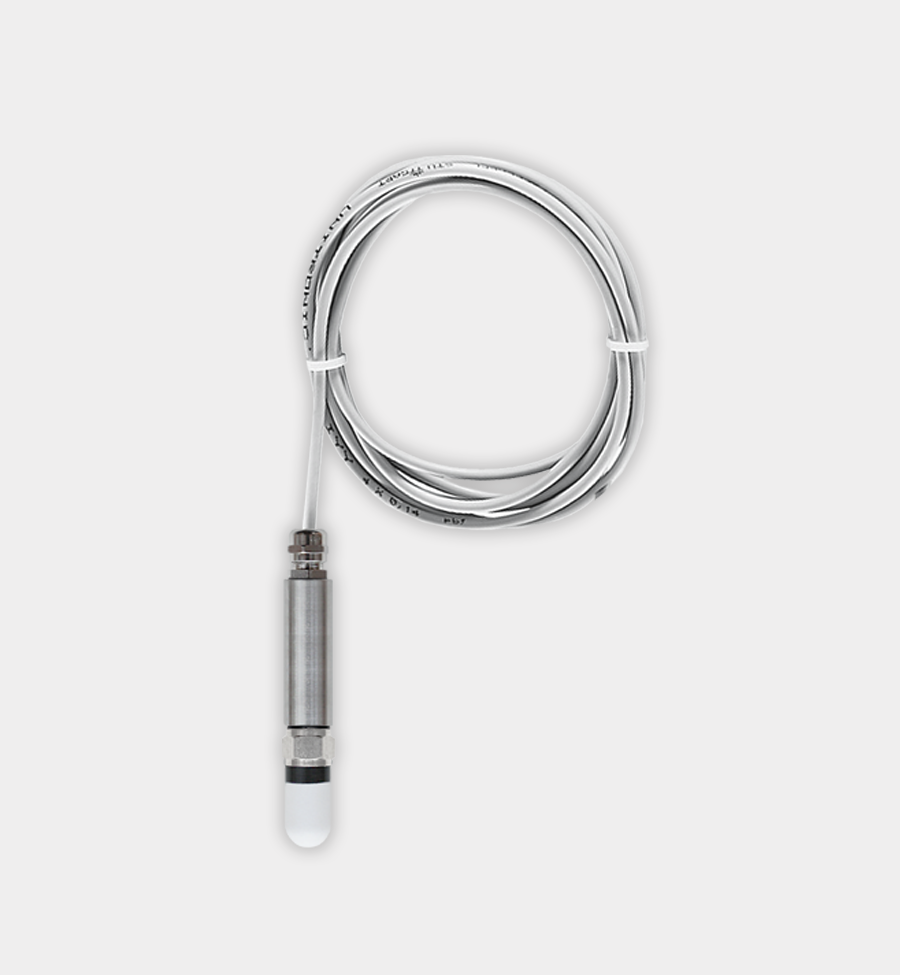

The TH-CO2-RPFF is a replacement room pendulum probe that measures temperature, relative humidity and CO2 for the arcus SK10-THC-CO2-RPFF KNX module. It hangs below the ceiling to capture air quality in the occupied zone.

The 20 x 120 mm (0.79 x 4.72 in) probe has a plastic sinter filter, is rated IP54 and ships on a 2 m (6.6 ft) cable, with special lengths available on request.

Key Features

  • Temperature -25 to +80 °C (-13 to 176 °F), ±0.4 °C (±0.72 °F) at 5-60 °C (41 to 140 °F)
  • Relative humidity 0-100 %, ±3 % at 20-80 %
  • CO2 0-40,000 ppm, ±(50 ppm + 5 %) at 400-2,000 ppm, response time 120 s
  • Powered from the module (3.3 VDC, 50 mW average)
  • 20 x 120 mm (0.79 x 4.72 in) probe with plastic sinter filter, IP54, 2 m (6.6 ft) cable
  • Operating range -10 to +60 °C (14 to 140 °F)

Technical Specifications

Article no. 90100064
Auxiliary supply 3.3 VDC from module; 50 mW avg / 100 mW peak
Measuring Temperature -25 to +80 °C (-13 to 176 °F) (±0.4 °C (±0.72 °F) at 5-60 °C (41 to 140 °F)); r.H. 0-100% (±3% at 20-80%); CO2 0-40000 ppm, 50 ppm + 5% (400-2000 ppm), response 120 s
Inputs / outputs & connections 2 m (6.6 ft) cable (special lengths on request)
Protection rating IP54
Dimensions 20 dia. x 120 (probe)
Mounting Hangs under ceiling on cable
Operating temperature -10 to +60 °C (14 to 140 °F) (storage -25 to +85 °C (-13 to 185 °F))

Application note: Replacement probe for the arcus SK10-THC-CO2-RPFF KNX climate sensor module.

Downloads

(CE certified; not UL/NRTL listed — verify local code requirements before specifying in US installations)
