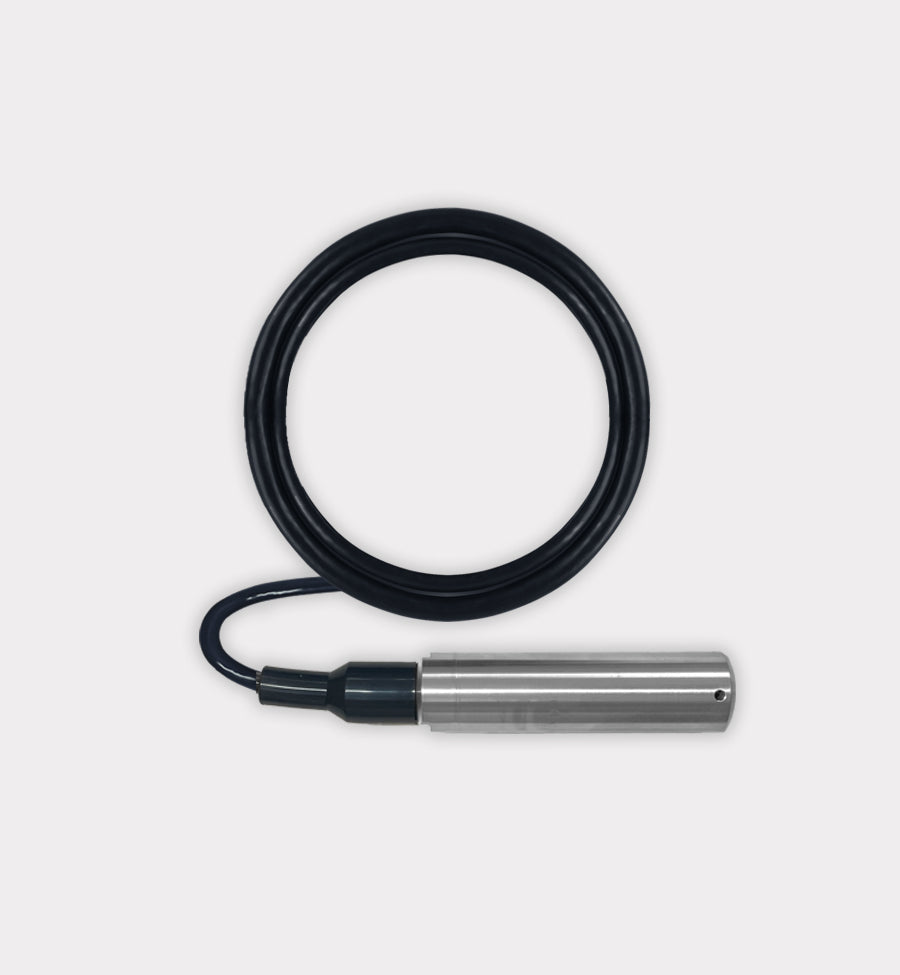

T-PMO-10 - Hydrostatic Level Sensor with Temperature for Oil, 0-10 m (0 to 32.8 ft), 15 m (49.2 ft) Cable

SKU: 90800380
(0)
✗ UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or equivalent). Installation in USA projects may require a Field Evaluation by a recognized laboratory. Consult your local AHJ before specifying.
~ Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an NRTL-listed power supply, many AHJs accept non-listed SELV devices. Verify with your local AHJ before specifying.
$299.81 USD
-37% $479.69 USD $299.81 USD
In stock
On backorder
KNX & DALI Specialists

Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.

Free shipping over $500
KNX certified devices
Expert technical support

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +1 (786) 956-6821

The T-PMO-10 is a replacement hydrostatic pressure sensor head for the arcus SK80-F KNX fill-level meter, built for oil tanks up to 10 m (32.8 ft) deep. It measures level from 0 to 10,000 mm (0 to 393.7 in) with 0.5 % FS accuracy, adds medium temperature and connects over Modbus RS485.

The IP68 sensor body (27 x 132 mm (1.06 x 5.2 in)) is suspended in the tank on a 15 m (49.2 ft) cable. Approved media are heating oil, diesel, vegetable oil and lubricating oil.

Key Features

  • Hydrostatic pressure measurement, 0-10,000 mm (0 to 393.7 in) range
  • Integrated temperature measurement
  • 0.5 % FS accuracy, Modbus RS485 signal
  • Media: heating oil, diesel, vegetable oil, lubricating oil (not for EEx zones)
  • 12 VDC supplied by the SK80-F control unit
  • IP68, 27 x 132 mm (1.06 x 5.2 in), 15 m (49.2 ft) cable, 0 to +60 °C (32 to 140 °F)

Technical Specifications

Article no. 90800380
Power consumption 12 VDC supplied by the SK80-F control unit
Auxiliary supply None (powered from SK80-F unit)
Measuring 0-10000 mm (0 to 393.7 in), Modbus RS485, accuracy 0.5 % FS, with temperature
Protection rating IP68
Dimensions 27 x 132 mm (1.06 x 5.2 in)
Mounting Suspended in tank (hydrostatic, on cable)
Operating temperature 0 to +60 °C (32 to 140 °F)

Application note: Spare sensor head for the arcus SK80-F KNX fill-level meter; it is powered and read by the SK80-F control unit.

Downloads

(CE certified; not UL/NRTL listed — verify local code requirements before specifying in US installations)
