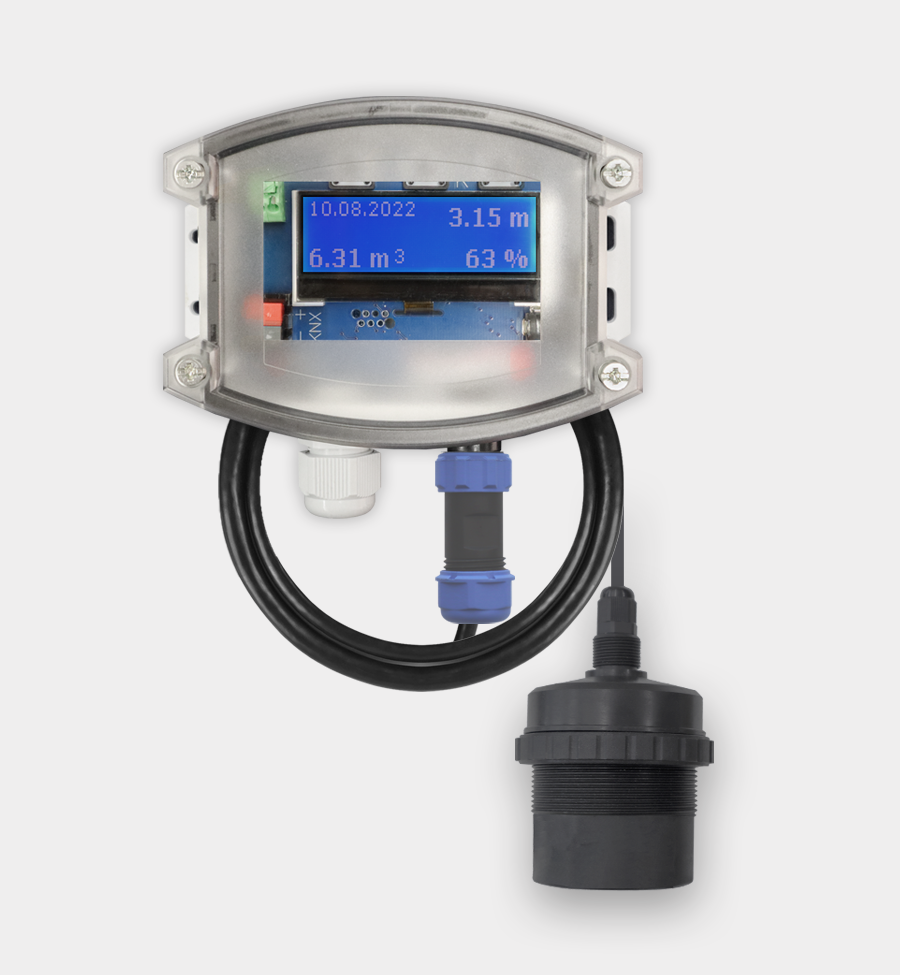

SK80-F-U-5 - KNX Fill Level Meter with Ultrasonic Sensor for Water, up to 5 m (16.4 ft), 10 m (32.8 ft) Cable
✗
UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or
equivalent). Installation in USA projects may require a Field Evaluation
by a recognized laboratory. Consult your local AHJ before specifying.
~
Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as
the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an
NRTL-listed power supply, many AHJs accept non-listed SELV devices.
Verify with your local AHJ before specifying.
Regular price
$598.30 USD
Regular price
-31%
$861.55 USD
Sale price
$598.30 USD
Couldn't load pickup availability
KNX & DALI Specialists
Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.
Free shipping over $500
KNX certified devices
Expert technical support
Got questions?
Feel free to get in touch
Ask an expert!
The SK80-F-U-5 combines the SK80-F KNX fill-level control unit with a U-5 ultrasonic sensor head on a 10 m (32.8 ft) cable. It measures contact-free from 300 to 5000 mm (11.8 to 196.9 in), also records temperature, and is specified for drinking, domestic and rain water tanks and cisterns.
Level, volume and percentage appear on the local display and on KNX, and a potential-free switch output reacts to upper and lower limits. The system runs on KNX bus power. Allow a dead zone of at least 30 cm (11.8 in) above the full level.
Key Features
- Ultrasonic sensor head, range 300 to 5000 mm (11.8 to 196.9 in), accuracy 0.5 % FS, with temperature
- Sensor 68 x 80 mm (2.68 x 3.15 in) (D x L), IP65, 10 m (32.8 ft) cable
- Media: drinking, domestic and rain water
- Fill level in m³, level, distance and %, resolution 1 mm (0.04 in); local display
- Potential-free limit-value switch output (20 mA); ETS application SK80_F
- Control unit 120 x 90 x 50 mm (4.72 x 3.54 x 1.97 in), IP65; bus powered (approx. 400 mW), no auxiliary supply
Technical Specifications
| Article no. | 30807105 |
|---|---|
| KNX bus voltage | KNX 21-32 VDC, approx. 20 mA |
| Power consumption | approx. 400 mW from KNX bus |
| Auxiliary supply | None – no additional voltage required (sensor head fed 13 V / 20 mA max from the unit) |
| Measuring | Fill level in m3, level, distance and %; resolution 1 mm (0.04 in); sensor accuracy 0.5 % FS; ultrasonic 300-5000 mm (11.8 to 196.9 in), hydrostatic 0-5000 / 0-10000 mm (0 to 393.7 in) |
| Inputs / outputs & connections | Sensor inputs 0-1 V, 0-5 V, 0-10 V, 4-20 mA (100 Ohm shunt), Modbus RTU RS485; potential-free switch output 20 mA, 5-230 V AC/DC tied to upper/lower limits; KNX terminal red/black; integrated display |
| Protection rating | IP65 |
| Dimensions | 120 x 90 x 50 mm (4.72 x 3.54 x 1.97 in) |
| Mounting | Wall/surface mount with screws; grey plastic housing with clear cover |
| Operating temperature | -20 to +55 °C (-4 to 131 °F) (storage -20 to +85 °C (-4 to 185 °F)), 0-95 % RH non-condensing; ultrasonic head -10..+50 °C (14 to 122 °F), hydrostatic head 0..+60 °C (32 to 140 °F) |
