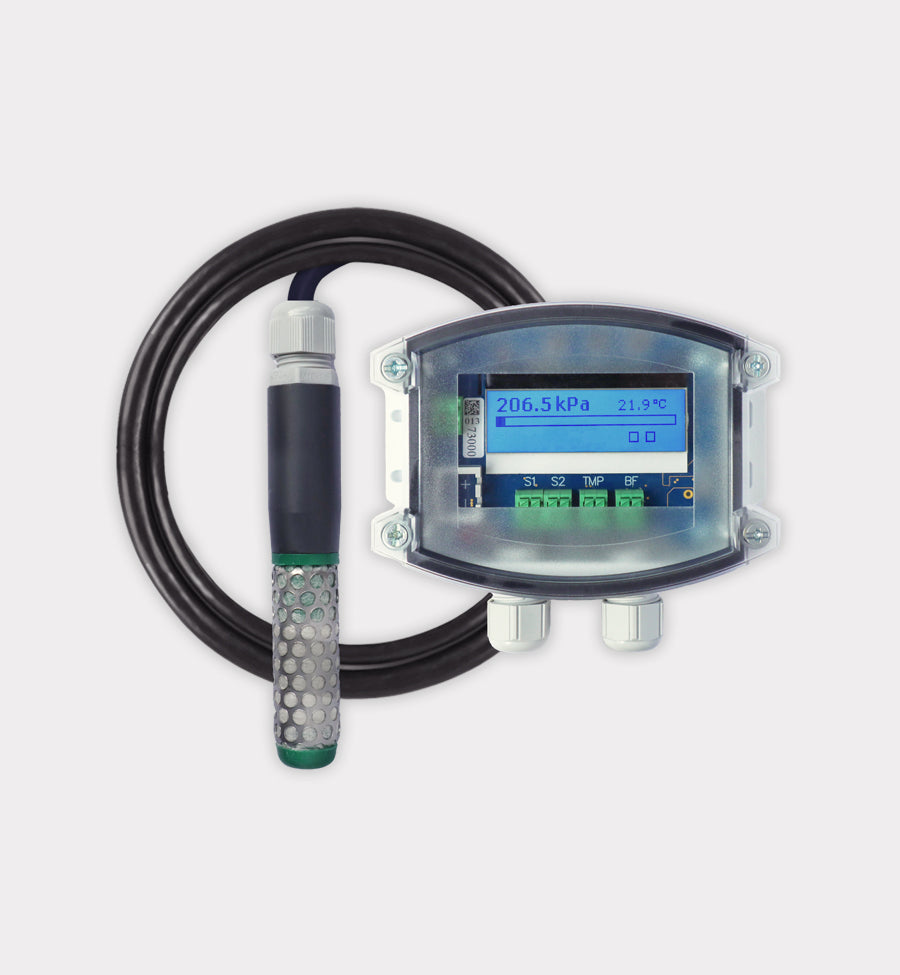

The SK80-BFT-WMT measures soil water tension and soil temperature and puts both values on KNX, giving irrigation control a reliable basis on lawns, golf courses, sports fields and crops. It ships with a Watermark sensor on a 5 m (16.4 ft) cable that can be extended up to 50 m (164 ft).

The surface-mount outdoor housing has an integrated display in kPa, two potential-free switch inputs and one potential-free switch output. It runs on KNX bus power and is rated IP54/65. Not suitable for potted plants.

Key Features

  • Soil water tension 0 to approx. 220 kPa (31.9 psi) via Watermark sensor
  • Soil temperature -25 to +50 °C (-13 to 122 °F) (PT1000, DIN class B)
  • Watermark sensor with 5 m (16.4 ft) cable included; cable extendable up to 50 m (164 ft)
  • 2 potential-free switch inputs (S1, S2) and 1 potential-free switch output (S3, 48 VDC / 90 mA)
  • Integrated display; surface-mount outdoor housing, IP54/65
  • Bus powered (10 mA); ETS application S8-BFT

Technical Specifications

Article no. 30805101
KNX bus voltage KNX 21-32 VDC, bus load 10 mA
Power consumption approx. 10 mA from KNX bus
Auxiliary supply None stated (bus powered)
Measuring Soil moisture (Watermark) 0..~220,000 Pa (31.9 psi) (~0-220 kPa (0 to 31.9 psi) soil water tension); soil temperature (PT1000) -25..+50 °C (-13 to 122 °F), DIN class B
Inputs / outputs & connections Watermark soil-moisture + PT1000 inputs (polarity-free), S1/S2 potential-free switch inputs, S3 potential-free switch output 48 VDC / 90 mA; integrated display (kPa)
Protection rating IP54/65 (bus coupler); brochure: weatherproof IP65 housing
Mounting Surface-mounted (AP) outdoor housing; Watermark probe buried in soil
Operating temperature -25 to +60 °C (-13 to 140 °F) (storage -25 to +80 °C (-13 to 176 °F)), 0-100 % RH non-condensing

Downloads

(CE certified; not UL/NRTL listed — verify local code requirements before specifying in US installations)
