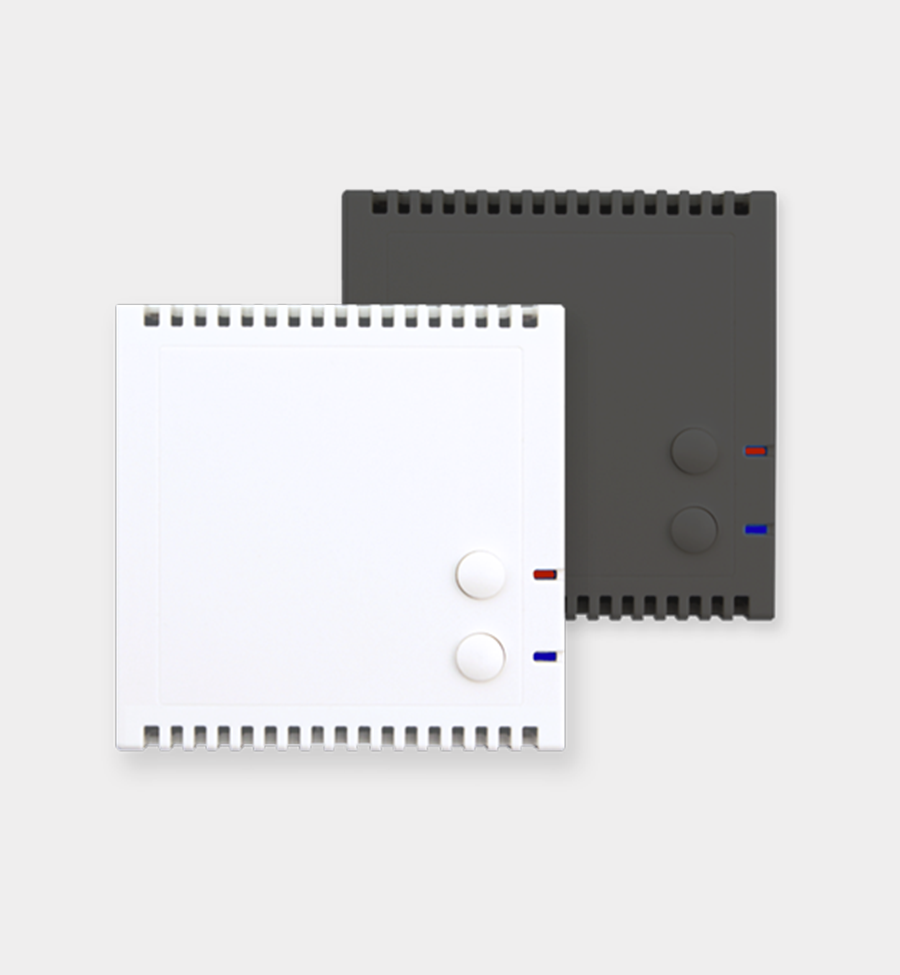

SK30-TTHC-PB - KNX Temp/Humidity Sensor, 2nd PT1000 Input, Push-Button Setpoint, 55 mm (2.17 in)
✗
UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or
equivalent). Installation in USA projects may require a Field Evaluation
by a recognized laboratory. Consult your local AHJ before specifying.
~
Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as
the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an
NRTL-listed power supply, many AHJs accept non-listed SELV devices.
Verify with your local AHJ before specifying.
Regular price
$269.56 USD
Regular price
-17%
$323.48 USD
Sale price
$269.56 USD
Couldn't load pickup availability
KNX & DALI Specialists
Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.
Free shipping over $500
KNX certified devices
Expert technical support
Got questions?
Feel free to get in touch
Ask an expert!
The SK30-TTHC-PB is a KNX room temperature and humidity sensor with an input for a second, external PT1000 probe (not included) and two front push buttons for local setpoint changes. It fits 55 mm (2.17 in) standard switch frames, with a carrier frame for 68 mm (2.68 in) in-wall boxes included.
An integrated room temperature controller, dew point and enthalpy calculation, and two binary inputs/outputs are built in. Bus powered and configured in ETS with the HLK305 application. Available in white or ultra dark grey.
Key Features
- Temperature -25 to +80 °C (-13 to 176 °F), ±0.4 °C (±0.72 °F) between 5 and 60 °C (41 to 140 °F); 0.02 °C (0.04 °F) resolution
- Humidity 0-100 % RH, ±3 % RH between 20 and 80 % RH
- Input for a second, external PT1000 temperature probe (not included), -50 to +400 °C (-58 to 752 °F)
- 2 front push buttons for setpoint change
- Integrated KNX bus coupler and room temperature controller (RTR)
- 2 binary inputs/outputs (floating), configurable as LED or beeper outputs
- Fits 55 mm (2.17 in) standard switch frames; carrier frame for 68 mm (2.68 in) in-wall box included
Technical Specifications
| Article no. | 30541371 (White), 30541372 (Ultra Dark Grey) |
|---|---|
| KNX bus voltage | KNX 21-32 VDC |
| Power consumption | approx. 240 mW at 24 VDC (bus powered) |
| Auxiliary supply | Not required (bus powered) |
| Measuring | Temperature + humidity (sensors in housing); Temperature -25..+80 °C (-13 to 176 °F), res. 0.02 °C (0.04 °F), accuracy ±0.4 °C (±0.72 °F) (5..60 °C (41 to 140 °F)) else ±0.8 °C (±1.4 °F); Humidity 0..100 % rH, res. 0.02 % rH, accuracy ±3 % rH (20..80 %) at +20 °C (68 °F) else ±5 % rH; calculates abs. humidity, dew point, enthalpy; 2nd temperature: external PT1000 input -50..+400 °C (-58 to 752 °F) (accuracy depends on probe; probe not included) |
| Inputs / outputs & connections | 2 front push buttons; 2 binary inputs/outputs (floating; configurable as LED/beeper outputs); external PT1000 input |
| Protection rating | IP20 |
| Dimensions | 55 mm (2.17 in) standard frame size insert |
| Mounting | Flush mount, indoor; carrier frame for 68 mm (2.68 in) in-wall box included; fits 55 mm (2.17 in) standard switch frames |
| Operating temperature | -25 to +80 °C (-13 to 176 °F) (storage -25 to +80 °C (-13 to 176 °F)) |
Downloads
(CE certified; not UL/NRTL listed — verify local code requirements before specifying in US installations)
