SK30-TTHC-CO2 - KNX Temperature, Humidity and CO2 Sensor with PT1000 Input, 55 mm (2.17 in) Frame
✗
UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or
equivalent). Installation in USA projects may require a Field Evaluation
by a recognized laboratory. Consult your local AHJ before specifying.
~
Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as
the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an
NRTL-listed power supply, many AHJs accept non-listed SELV devices.
Verify with your local AHJ before specifying.
Regular price
$373.44 USD
Regular price
-17%
$448.13 USD
Sale price
$373.44 USD
Couldn't load pickup availability
KNX & DALI Specialists
Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.
Free shipping over $500
KNX certified devices
Expert technical support
Got questions?
Feel free to get in touch
Ask an expert!
The SK30-TTHC-CO2 is a KNX room sensor that measures temperature, humidity and CO2 and includes an integrated room temperature controller (RTR). It is a practical choice for demand-controlled ventilation in offices, meeting rooms and classrooms. Absolute humidity, dew point and enthalpy are calculated on board. An extra input for an external PT1000 probe adds a second temperature measurement from -50 to +400 °C (-58 to 752 °F).

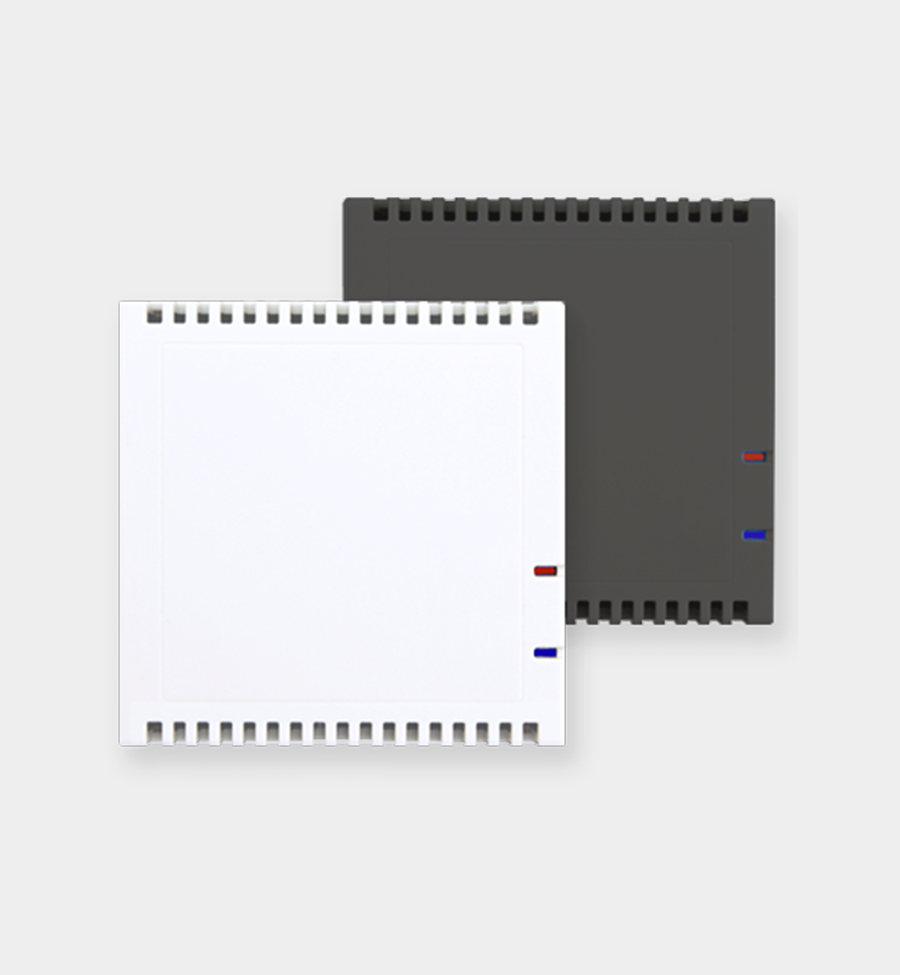

Available in White and Ultra Dark Grey (anthracite). The insert fits 55 mm (2.17 in) standard switch frames and includes a carrier frame for a 68 mm (2.68 in) in-wall box. Two floating binary inputs/outputs can also drive LEDs or a beeper, and no auxiliary supply is needed.
Key Features
- Temperature -10 to +50 °C (14 to 122 °F), resolution 0.02 °C (0.04 °F), accuracy ±0.4 °C (±0.72 °F) (5 to 60 °C (41 to 140 °F)), else ±0.8 °C (±1.4 °F)
- Relative humidity 0 to 95 %, accuracy ±3 % (20 to 80 %); calculates absolute humidity, dew point and enthalpy
- CO2 400 to 5000 ppm, accuracy ±(50 ppm + 5 % of reading)
- External PT1000 input for a second temperature, -50 to +400 °C (-58 to 752 °F) (probe not included)
- 2 floating binary inputs/outputs, configurable as LED or beeper outputs
- 55 mm (2.17 in) frame-size insert with carrier frame for 68 mm (2.68 in) in-wall box, IP20
- Integrated bus coupler and RTR; bus powered, no auxiliary supply; ETS application HLK305
Technical Specifications
| Article no. | 30542361 (White), 30542362 (Ultra Dark Grey) |
|---|---|
| KNX bus voltage | KNX 21-32 VDC |
| Power consumption | approx. 240 mW at 24 VDC (bus powered) |
| Auxiliary supply | Not required (bus powered) |
| Measuring | Temperature -10..+50 °C (14 to 122 °F), res. 0.02 °C (0.04 °F), ±0.4 °C (±0.72 °F) (5..60 °C (41 to 140 °F)) else ±0.8 °C (±1.4 °F); humidity 0..95 % rH, res. 0.02 %, ±3 % rH (20..80 %) else ±5 %; CO2 400..5000 ppm, accuracy ±(50 ppm + 5 % of reading); calculates abs. humidity, dew point, enthalpy; 2nd temperature: external PT1000 input -50..+400 °C (-58 to 752 °F) (accuracy depends on probe; probe not included) |
| Inputs / outputs & connections | 2 binary inputs/outputs (floating; configurable as LED/beeper outputs); external PT1000 input |
| Protection rating | IP20 |
| Dimensions | 55 mm (2.17 in) standard frame size insert |
| Mounting | Flush mount, indoor; carrier frame for 68 mm (2.68 in) in-wall box included; fits 55 mm (2.17 in) standard switch frames |
| Operating temperature | -10 to +50 °C (14 to 122 °F) (storage -25 to +60 °C (-13 to 140 °F)); 0..95 % rH non-condensing |
Application note: The PT1000 probe for the second temperature input is not included and is ordered separately.
Downloads
(CE certified; not UL/NRTL listed — verify local code requirements before specifying in US installations)
