SK30-TC-VOC-PB - KNX Room Temperature and VOC Sensor with Push Buttons, 55 mm (2.17 in) Frame
✗
UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or
equivalent). Installation in USA projects may require a Field Evaluation
by a recognized laboratory. Consult your local AHJ before specifying.
~
Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as
the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an
NRTL-listed power supply, many AHJs accept non-listed SELV devices.
Verify with your local AHJ before specifying.
Regular price
$274.82 USD
Regular price
-17%
$329.79 USD
Sale price
$274.82 USD
Couldn't load pickup availability
KNX & DALI Specialists
Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.
Free shipping over $500
KNX certified devices
Expert technical support
Got questions?
Feel free to get in touch
Ask an expert!
The SK30-TC-VOC-PB is a KNX room sensor that measures temperature and VOC air quality and includes an integrated room temperature controller (RTR). The VOC sensor tracks mixed-gas air quality, a good basis for air-quality based ventilation control. Two front push buttons give occupants local control at the wall.

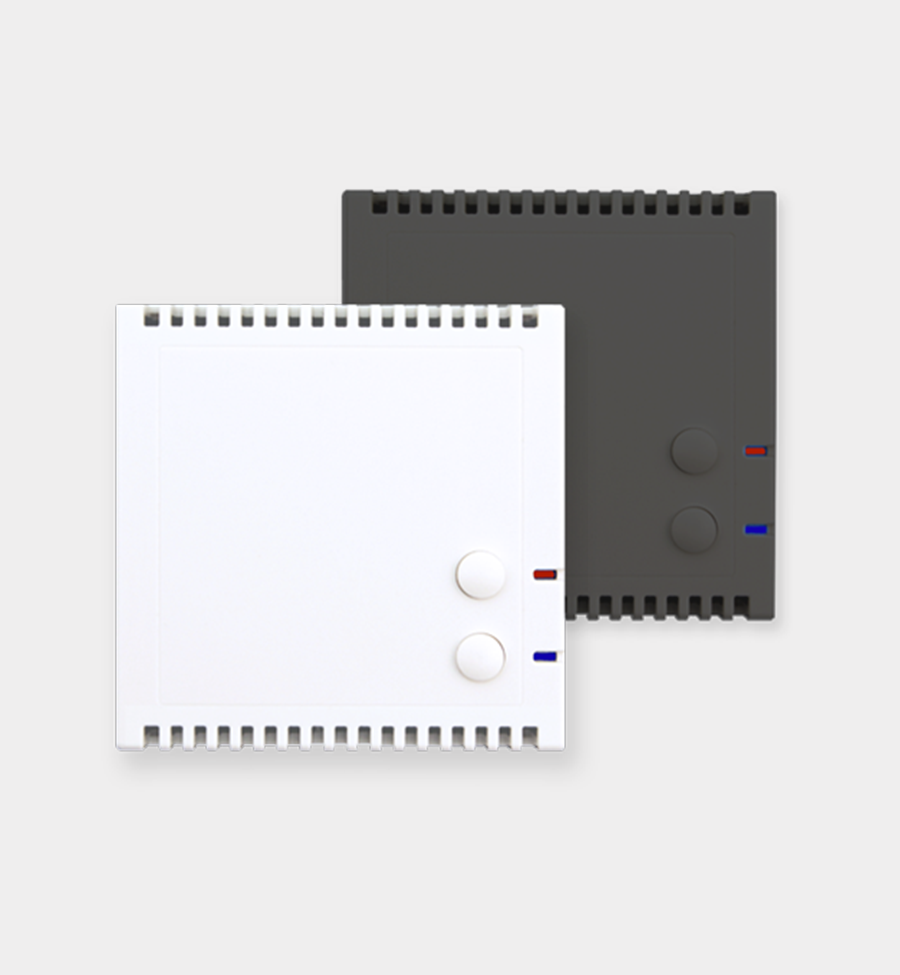

Available in White and Ultra Dark Grey (anthracite). The insert fits 55 mm (2.17 in) standard switch frames and includes a carrier frame for a 68 mm (2.68 in) in-wall box. Two floating binary inputs/outputs can also drive LEDs or a beeper, and no auxiliary supply is needed.
Key Features
- Temperature -25 to +80 °C (-13 to 176 °F), resolution 0.02 °C (0.04 °F), accuracy ±0.4 °C (±0.72 °F) (5 to 60 °C (41 to 140 °F)), else ±0.8 °C (±1.4 °F)
- VOC mixed-gas air quality measurement
- 2 front push buttons; 2 floating binary inputs/outputs, configurable as LED or beeper outputs
- 55 mm (2.17 in) frame-size insert with carrier frame for 68 mm (2.68 in) in-wall box, IP20
- Integrated bus coupler and RTR; bus powered, no auxiliary supply; ETS application HLK305
Technical Specifications
| Article no. | 30513371 (White), 30513372 (Ultra Dark Grey) |
|---|---|
| KNX bus voltage | KNX 21-32 VDC |
| Power consumption | approx. 240 mW at 24 VDC (bus powered) |
| Auxiliary supply | Not required (bus powered) |
| Measuring | Temperature -25..+80 °C (-13 to 176 °F), res. 0.02 °C (0.04 °F), accuracy ±0.4 °C (±0.72 °F) (5..60 °C (41 to 140 °F)) else ±0.8 °C (±1.4 °F); VOC level |
| Inputs / outputs & connections | 2 front push buttons; 2 binary inputs/outputs (floating; configurable as LED/beeper outputs) |
| Protection rating | IP20 |
| Dimensions | 55 mm (2.17 in) standard frame size insert |
| Mounting | Flush mount, indoor; carrier frame for 68 mm (2.68 in) in-wall box included; fits 55 mm (2.17 in) standard switch frames |
| Operating temperature | -25 to +80 °C (-13 to 176 °F) (storage -25 to +80 °C (-13 to 176 °F)); 10..95 % rH non-condensing |
Downloads
(CE certified; not UL/NRTL listed — verify local code requirements before specifying in US installations)
