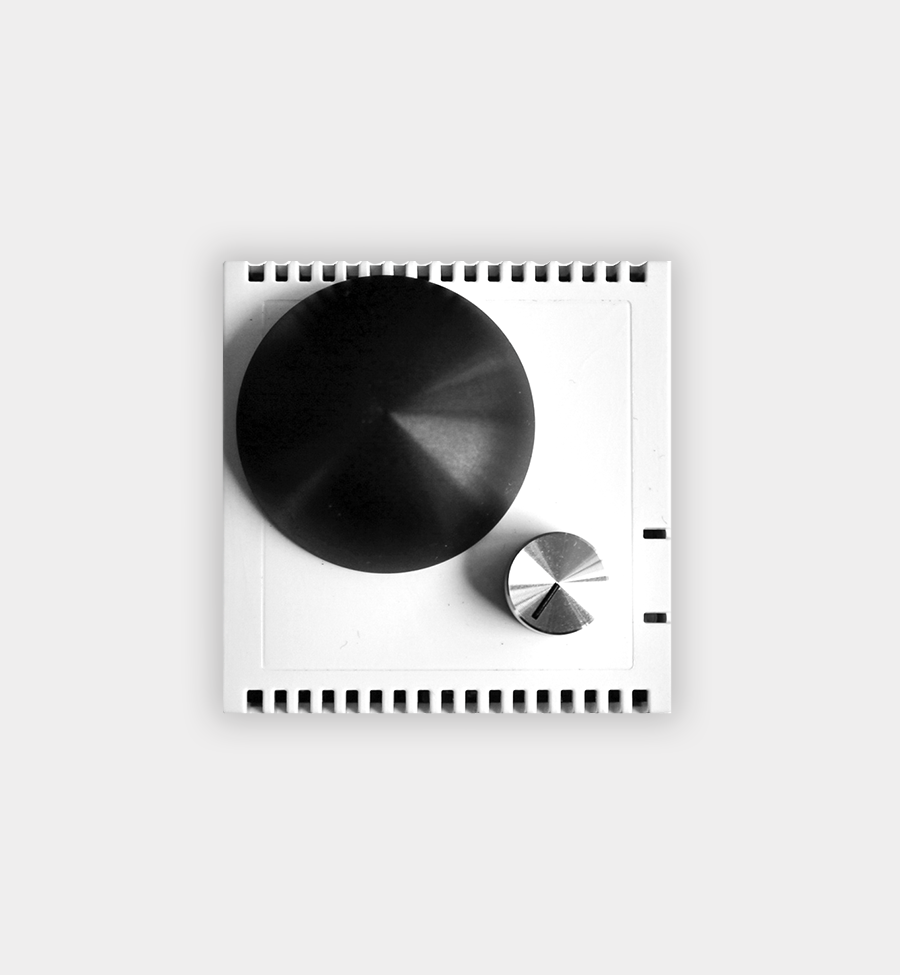

SK30-TC-RSTF-R - KNX Radiant Temperature Sensor with Controller and Rotary Setpoint, 55 mm (2.17 in)
✗
UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or
equivalent). Installation in USA projects may require a Field Evaluation
by a recognized laboratory. Consult your local AHJ before specifying.
~
Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as
the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an
NRTL-listed power supply, many AHJs accept non-listed SELV devices.
Verify with your local AHJ before specifying.
Regular price
$327.42 USD
Regular price
-17%
$392.90 USD
Sale price
$327.42 USD
Couldn't load pickup availability
KNX & DALI Specialists
Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.
Free shipping over $500
KNX certified devices
Expert technical support
Got questions?
Feel free to get in touch
Ask an expert!
The SK30-TC-RSTF-R is a KNX radiant (dark radiation) temperature sensor with an integrated room temperature controller and a rotary knob for local setpoint adjustment of up to ±5 °C (±9 °F). It is designed for radiant ceiling systems where occupants need simple, intuitive comfort control.
The insert fits 55 mm (2.17 in) standard switch frames, with a carrier frame for 68 mm (2.68 in) in-wall boxes included, and offers two binary inputs/outputs. Bus powered and configured in ETS with the HLK305 application. Available in white or ultra dark grey.
Key Features
- Dark radiation (black globe) temperature sensor, -5 to +60 °C (23 to 140 °F), ±0.3 °C (±0.54 °F); 0.02 °C (0.04 °F) resolution
- Rotary controller for setpoint adjustment, max. ±5 °C (±9 °F)
- Integrated KNX bus coupler and room temperature controller (RTR)
- 2 binary inputs/outputs (floating), configurable as LED or beeper outputs
- Fits 55 mm (2.17 in) standard switch frames; carrier frame for 68 mm (2.68 in) in-wall box included
- Bus powered (approx. 240 mW); no auxiliary supply
- ETS application HLK305
Technical Specifications
| Article no. | 30516351 (White), 30516352 (Ultra Dark Grey) |
|---|---|
| KNX bus voltage | KNX 21-32 VDC |
| Power consumption | approx. 240 mW at 24 VDC (bus powered) |
| Auxiliary supply | Not required (bus powered) |
| Measuring | Dark (black-body) radiation temperature sensor: -5..+60 °C (23 to 140 °F), accuracy ±0.3 °C (±0.54 °F), res. 0.02 °C (0.04 °F) |
| Inputs / outputs & connections | Rotary controller for setpoint adjustment (max. ±5 °C (±9 °F)); 2 binary inputs/outputs (floating; configurable as LED/beeper outputs) |
| Protection rating | IP20 |
| Dimensions | 55 mm (2.17 in) standard frame size insert |
| Mounting | Flush mount, indoor; carrier frame for 68 mm (2.68 in) in-wall box included; fits 55 mm (2.17 in) standard switch frames |
| Operating temperature | -5 to +60 °C (23 to 140 °F) (storage -25 to +80 °C (-13 to 176 °F)) |
