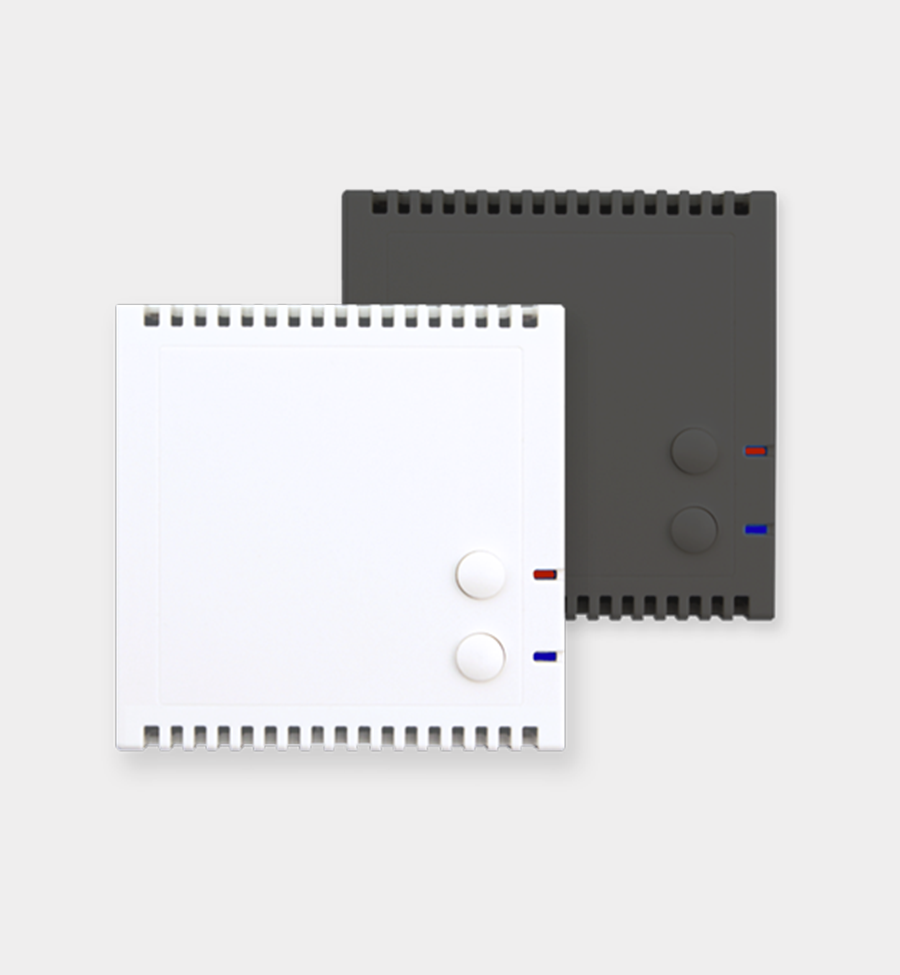

SK30-TC-PB - KNX Room Temperature Sensor with Controller and Push-Button Setpoint, 55 mm (2.17 in)
✗
UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or
equivalent). Installation in USA projects may require a Field Evaluation
by a recognized laboratory. Consult your local AHJ before specifying.
~
Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as
the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an
NRTL-listed power supply, many AHJs accept non-listed SELV devices.
Verify with your local AHJ before specifying.
Regular price
$222.23 USD
Regular price
-17%
$266.67 USD
Sale price
$222.23 USD
Couldn't load pickup availability
KNX & DALI Specialists
Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.
Free shipping over $500
KNX certified devices
Expert technical support
Got questions?
Feel free to get in touch
Ask an expert!
The SK30-TC-PB is a KNX room temperature sensor and controller with two front push buttons for local setpoint adjustment. It fits 55 mm (2.17 in) standard switch frames, and a carrier frame for 68 mm (2.68 in) in-wall boxes is included.
It measures from -25 to +80 °C (-13 to 176 °F) with ±0.4 °C (±0.72 °F) accuracy between 5 and 60 °C (41 to 140 °F) and adds two binary inputs/outputs for contacts, push buttons or LEDs. The device runs entirely from the KNX bus and is configured in ETS with the HLK305 application. Available in white or ultra dark grey.
Key Features
- Temperature -25 to +80 °C (-13 to 176 °F), ±0.4 °C (±0.72 °F) between 5 and 60 °C (41 to 140 °F); 0.02 °C (0.04 °F) resolution
- 2 front push buttons for setpoint change
- Integrated KNX bus coupler and room temperature controller (RTR)
- 2 binary inputs/outputs (floating), configurable as LED or beeper outputs
- Fits 55 mm (2.17 in) standard switch frames; carrier frame for 68 mm (2.68 in) in-wall box included
- Bus powered (approx. 240 mW); no auxiliary supply
- ETS application HLK305
Technical Specifications
| Article no. | 30511371 (White), 30511372 (Ultra Dark Grey) |
|---|---|
| KNX bus voltage | KNX 21-32 VDC |
| Power consumption | approx. 240 mW at 24 VDC (bus powered) |
| Auxiliary supply | Not required (bus powered) |
| Measuring | Air temperature (sensor in housing); Temperature -25..+80 °C (-13 to 176 °F), res. 0.02 °C (0.04 °F), accuracy ±0.4 °C (±0.72 °F) (5..60 °C (41 to 140 °F)) else ±0.8 °C (±1.4 °F) |
| Inputs / outputs & connections | 2 front push buttons (setpoint change); 2 binary inputs/outputs (floating; configurable as LED/beeper outputs) |
| Protection rating | IP20 |
| Dimensions | 55 mm (2.17 in) standard frame size insert |
| Mounting | Flush mount, indoor; carrier frame for 68 mm (2.68 in) in-wall box included; fits 55 mm (2.17 in) standard switch frames |
| Operating temperature | -25 to +80 °C (-13 to 176 °F) (storage -25 to +80 °C (-13 to 176 °F)) |
Downloads
(CE certified; not UL/NRTL listed — verify local code requirements before specifying in US installations)
Orders over $500 ship free within the USA (under 50 lbs). Orders under $500 carry a low cost shipping fee.
Most in-stock orders ship within 1–2 business days from Miami, FL. Delivery typically takes 3–5 business days depending on destination.
For freight or oversized orders, our team will contact you with a custom quote.
All KNXSupply products are covered by the manufacturer's warranty, ranging from 1 to 3 years depending on the brand. Warranty terms are fulfilled directly by the manufacturer.
If you experience any issue, contact us and we'll coordinate the claim process on your behalf.
