SK30-PT1000 - PT1000 Flush-Mount Room Temperature Sensor, 55 mm (2.17 in) Frame
✗
UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or
equivalent). Installation in USA projects may require a Field Evaluation
by a recognized laboratory. Consult your local AHJ before specifying.
~
Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as
the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an
NRTL-listed power supply, many AHJs accept non-listed SELV devices.
Verify with your local AHJ before specifying.
Regular price
$39.05 USD
Regular price
-38%
$62.49 USD
Sale price
$39.05 USD
Couldn't load pickup availability
KNX & DALI Specialists
Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.
Free shipping over $500
KNX certified devices
Expert technical support
Got questions?
Feel free to get in touch
Ask an expert!

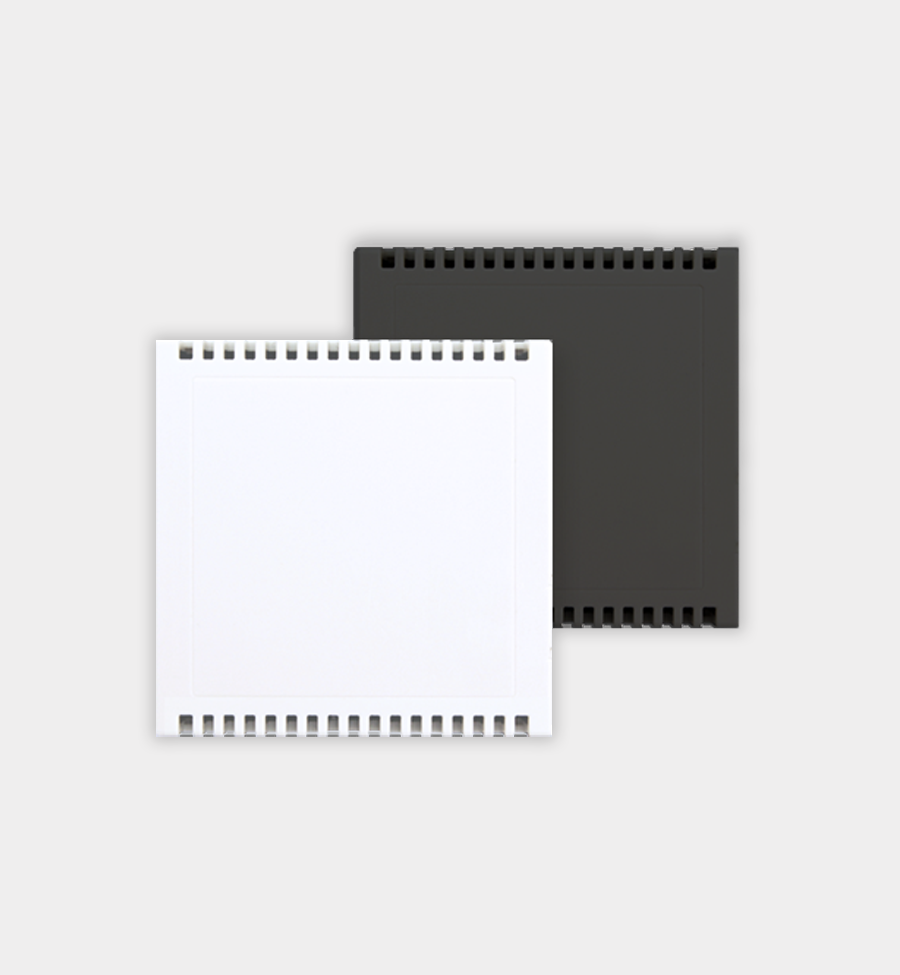

The SK30-PT1000 is a flush-mount PT1000 room temperature sensor with a cover that fits 55 mm (2.17 in) switch-frame systems, such as Gira or Merten, so it blends in with the surrounding switches.
It mounts on a standard 60/68 mm (2.36/2.68 in) in-wall box, connects via screw terminals and covers -25 to +55 °C (-13 to +131 °F). Available in white or anthracite to match the switch range.
Key Features
- PT1000 room temperature sensor
- Cover for 55 mm (2.17 in) switch-frame systems
- Flush mount on 60/68 mm (2.36/2.68 in) in-wall box
- Measuring range -25 to +55 °C (-13 to +131 °F)
- Screw terminals, IP20
Technical Specifications
| Article no. | 90101301 (White), 90101302 (Anthracite) |
|---|---|
| Measuring | PT1000 room probe, -25 to +55 °C (-13 to 131 °F) |
| Inputs / outputs & connections | Screw terminals |
| Protection rating | IP20 |
| Mounting | Flush mount (UP) on 60/68 mm (2.36/2.68 in) box, 55 mm (2.17 in) frame |
Application note: Accessory probe for KNX sensor modules with a PT1000 input, such as the arcus SK10-TC.
(CE certified; not UL/NRTL listed — verify local code requirements before specifying in US installations)
