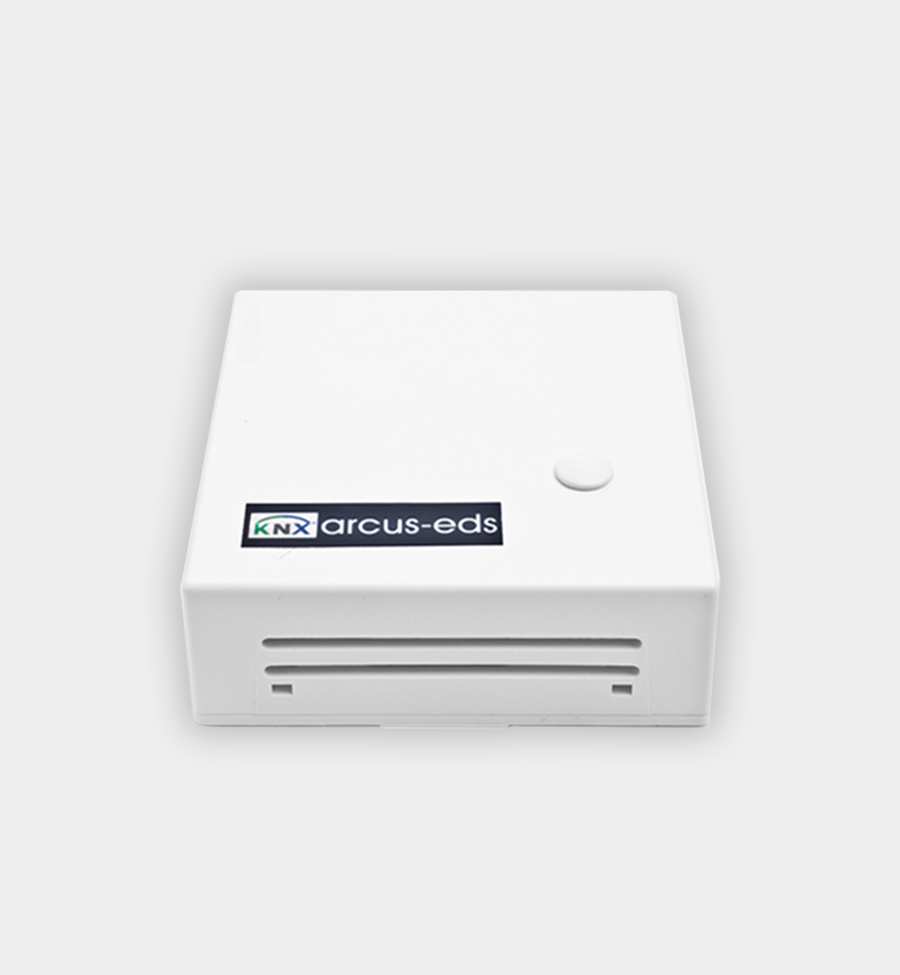

SK20-THC-VOC-2B - KNX Temperature, Humidity and VOC Sensor with Controller, 2 Binary Inputs
✗
UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or
equivalent). Installation in USA projects may require a Field Evaluation
by a recognized laboratory. Consult your local AHJ before specifying.
~
Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as
the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an
NRTL-listed power supply, many AHJs accept non-listed SELV devices.
Verify with your local AHJ before specifying.
Regular price
$295.86 USD
Regular price
-17%
$355.03 USD
Sale price
$295.86 USD
Couldn't load pickup availability
KNX & DALI Specialists
Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.
Free shipping over $500
KNX certified devices
Expert technical support
Got questions?
Feel free to get in touch
Ask an expert!
The SK20-THC-VOC-2B is a KNX room sensor that measures temperature, humidity and VOC air quality and includes an integrated room temperature controller (RTR). The VOC sensor tracks mixed-gas air quality, a good basis for air-quality based ventilation control. Absolute humidity, dew point and enthalpy are calculated on board.
The complete white plastic unit measures 71 x 71 x 25 mm (2.8 x 2.8 x 0.98 in) and flush-mounts on a standard in-wall box. Two binary inputs accept local contacts, and the sensor runs on KNX bus power with no auxiliary supply.
Key Features
- Temperature -20 to +80 °C (-4 to 176 °F), resolution 0.02 °C (0.04 °F), accuracy ±0.4 °C (±0.72 °F) (5 to 60 °C (41 to 140 °F)), else ±0.8 °C (±1.4 °F)
- Relative humidity 10 to 95 %, accuracy ±3 % (20 to 80 %); calculates absolute humidity, dew point and enthalpy
- VOC mixed-gas air quality measurement
- 2 binary inputs
- White plastic housing 71 x 71 x 25 mm (2.8 x 2.8 x 0.98 in), flush mount on standard in-wall box, IP20
- Integrated bus coupler and RTR; bus powered, no auxiliary supply; ETS application HLK305
Technical Specifications
| Article no. | 30533261 |
|---|---|
| KNX bus voltage | KNX 21-32 VDC |
| Power consumption | approx. 240 mW at 24 VDC (bus powered) |
| Auxiliary supply | Not required (bus powered) |
| Measuring | Temperature -20..+80 °C (-4 to 176 °F), res. 0.02 °C (0.04 °F), ±0.4 °C (±0.72 °F) (5..60 °C (41 to 140 °F)) else ±0.8 °C (±1.4 °F); humidity 10..95 % rH, res. 0.02 %, ±3 % rH (20..80 %) else ±5 %; VOC level; calculates abs. humidity, dew point, enthalpy |
| Inputs / outputs & connections | 2 binary inputs |
| Protection rating | IP20 |
| Dimensions | 71 x 71 x 25 mm (2.8 x 2.8 x 0.98 in) |
| Mounting | Flush mount on standard in-wall box, indoor (complete white plastic unit) |
| Operating temperature | -25 to +80 °C (-13 to 176 °F) (storage -25 to +80 °C (-13 to 176 °F)); 10..95 % rH non-condensing |
