SK10L-TTHC-L-AFF - KNX Outdoor Brightness, Temperature and Humidity Sensor, PT1000 Input
✗
UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or
equivalent). Installation in USA projects may require a Field Evaluation
by a recognized laboratory. Consult your local AHJ before specifying.
~
Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as
the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an
NRTL-listed power supply, many AHJs accept non-listed SELV devices.
Verify with your local AHJ before specifying.
Regular price
$466.80 USD
Regular price
-17%
$560.16 USD
Sale price
$466.80 USD
Couldn't load pickup availability
KNX & DALI Specialists
Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.
Free shipping over $500
KNX certified devices
Expert technical support
Got questions?
Feel free to get in touch
Ask an expert!

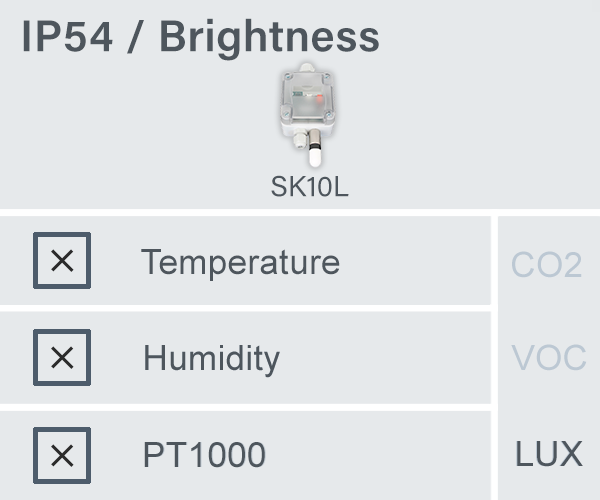

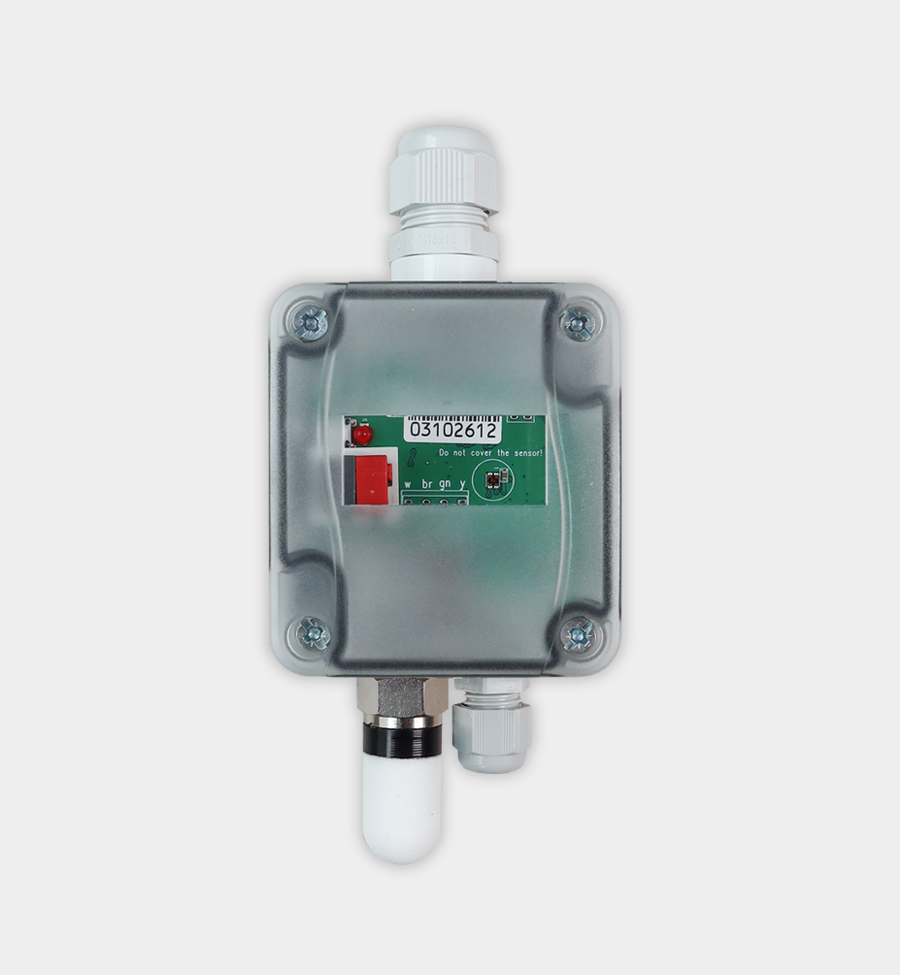

The SK10L-TTHC-L-AFF is an IP54/65 KNX outdoor sensor that measures brightness, temperature and humidity, with an extra input for a second temperature from an external PT1000 probe. It brings lighting, shading and climate data together in one device.
Absolute humidity, dew point and enthalpy are calculated on board, and an integrated controller is included. The PT1000 probe is not supplied. The sensor is powered from the KNX bus with no auxiliary supply.
Key Features
- Brightness 3 to 220,000 lux (0.3 to 20438 fc) (±20 %)
- Temperature -25 to +80 °C (-13 to 176 °F), accuracy ±0.4 °C (±0.72 °F) (5 to 60 °C (41 to 140 °F)); relative humidity 0 to 100 %
- Calculates absolute humidity, dew point and enthalpy
- External PT1000 input, -50 to +400 °C (-58 to 752 °F) (probe not included)
- Plastic housing with transparent cover, 72 x 64 x 45 mm (2.83 x 2.52 x 1.77 in), IP54/65
- Integrated controller (RTR); bus powered; ETS application HLK305
Technical Specifications
| Article no. | 30544153 |
|---|---|
| KNX bus voltage | KNX 21-32 VDC |
| Power consumption | approx. 240 mW at 24 VDC (approx. 10 mA bus load) |
| Auxiliary supply | Not required (integrated bus coupler) |
| Measuring | Brightness 3-220,000 lux (0.3 to 20438 fc) (±20%); Temperature -25 to +80 °C (-13 to 176 °F) (res. 0.02 °C (0.04 °F), ±0.4 °C (±0.72 °F) at 5-60 °C (41 to 140 °F), else ±0.8 °C (±1.4 °F)); r.H. 0-100% (res. 0.02%, ±3% at 20-80% @25 °C (77 °F), else ±5%); calculated: absolute humidity, dew point, enthalpy; external PT1000 input -50 to +400 °C (-58 to 752 °F) (probe not included) |
| Inputs / outputs & connections | KNX 2-pole terminal; 1 x external PT1000 input |
| Protection rating | IP54/65 |
| Dimensions | 72 x 64 x 45 mm (2.83 x 2.52 x 1.77 in) (plastic, transparent cover) |
| Operating temperature | -25 to +80 °C (-13 to 176 °F) (KNX module; storage -25 to +80 °C (-13 to 176 °F)) |
Application note: The PT1000 probe for the second temperature input is not included and is ordered separately.
