SK10L-THC-L-AFF - KNX Outdoor Sensor for Brightness, Temperature and Humidity, IP54/65

SKU: 30534153
(0)
✗ UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or equivalent). Installation in USA projects may require a Field Evaluation by a recognized laboratory. Consult your local AHJ before specifying.
~ Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an NRTL-listed power supply, many AHJs accept non-listed SELV devices. Verify with your local AHJ before specifying.
$419.47 USD
-17% $503.36 USD $419.47 USD
In stock
On backorder
KNX & DALI Specialists

Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.

Free shipping over $500
KNX certified devices
Expert technical support

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +1 (786) 956-6821

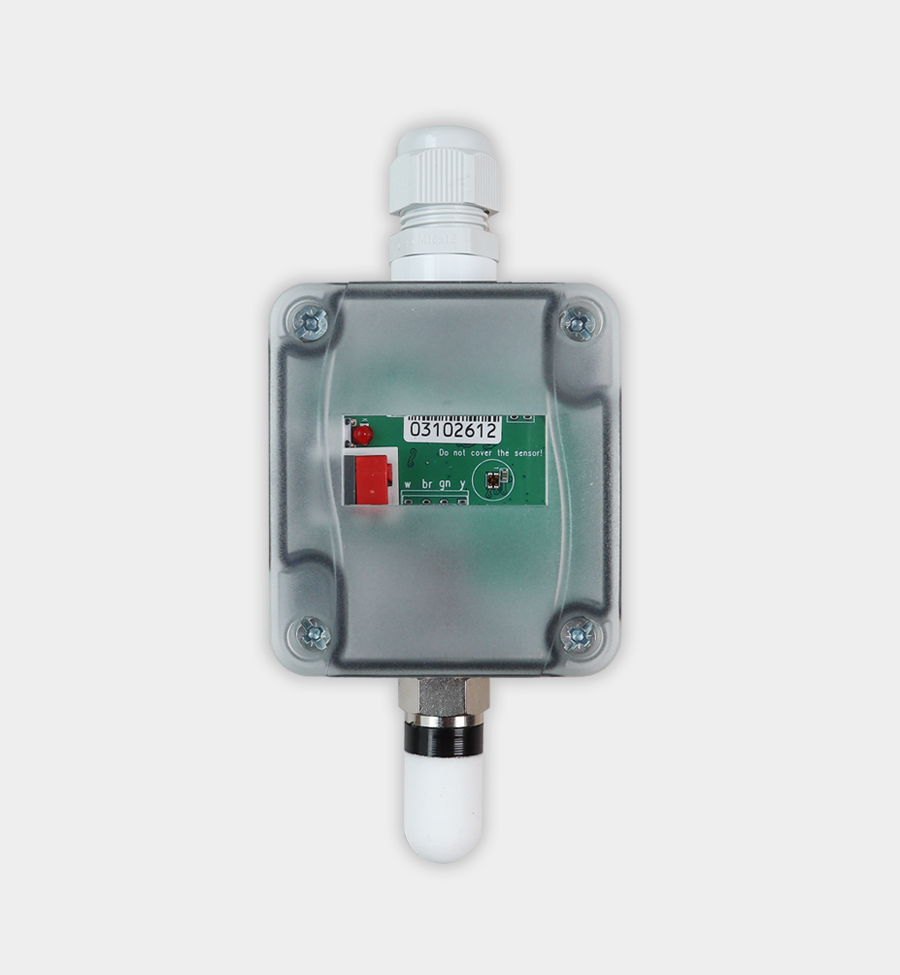

The SK10L-THC-L-AFF combines brightness, temperature and humidity measurement in one IP54/65 KNX outdoor sensor with a transparent cover. Lighting, shading and climate functions can work from the same set of outdoor values.

The device also calculates absolute humidity, dew point and enthalpy and includes an integrated controller. It is powered from the KNX bus through its integrated bus coupler, with no auxiliary supply required.

Key Features

  • Brightness 3 to 220,000 lux (0.3 to 20438 fc) (±20 %)
  • Temperature -25 to +80 °C (-13 to 176 °F), resolution 0.02 °C (0.04 °F), accuracy ±0.4 °C (±0.72 °F) (5 to 60 °C (41 to 140 °F))
  • Relative humidity 0 to 100 %, accuracy ±3 % (20 to 80 % at 25 °C (77 °F))
  • Calculates absolute humidity, dew point and enthalpy
  • Plastic housing with transparent cover, 72 x 64 x 45 mm (2.83 x 2.52 x 1.77 in), IP54/65
  • Integrated controller (RTR); bus powered; ETS application HLK305

Technical Specifications

Article no. 30534153
KNX bus voltage KNX 21-32 VDC
Power consumption approx. 240 mW at 24 VDC (approx. 10 mA bus load)
Auxiliary supply Not required (integrated bus coupler)
Measuring Brightness 3-220,000 lux (0.3 to 20438 fc) (±20%); Temperature -25 to +80 °C (-13 to 176 °F) (res. 0.02 °C (0.04 °F), ±0.4 °C (±0.72 °F) at 5-60 °C (41 to 140 °F), else ±0.8 °C (±1.4 °F)); r.H. 0-100% (res. 0.02%, ±3% at 20-80% @25 °C (77 °F), else ±5%); calculated: absolute humidity, dew point, enthalpy
Inputs / outputs & connections KNX 2-pole terminal
Protection rating IP54/65
Dimensions 72 x 64 x 45 mm (2.83 x 2.52 x 1.77 in) (plastic, transparent cover)
Operating temperature -25 to +80 °C (-13 to 176 °F) (KNX module; storage -25 to +80 °C (-13 to 176 °F))
