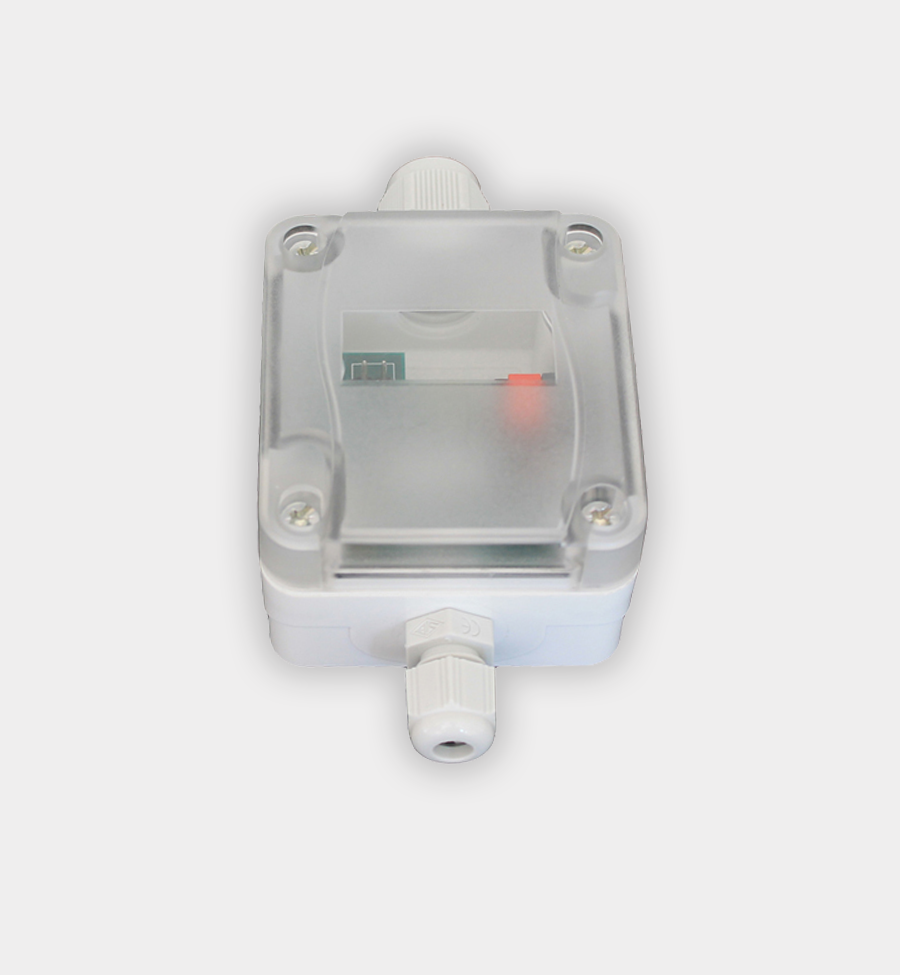

The SK10L-TC-L is an IP54/65 KNX brightness sensor with a transparent cover and an input for an external PT1000 temperature probe. It covers 3 to 220,000 lux (0.3 to 20438 fc), which makes it useful for outdoor lighting and shading logic that also needs a temperature value.

The PT1000 probe is not included, so the probe type can be chosen to suit the installation. An integrated controller is on board, and the device is powered from the KNX bus through its integrated bus coupler.

Key Features

  • Brightness 3 to 220,000 lux (0.3 to 20438 fc) (±20 %)
  • External PT1000 input, -50 to +400 °C (-58 to 752 °F) (accuracy depends on probe; probe not included)
  • Integrated controller (RTR)
  • Plastic housing with transparent cover, 72 x 64 x 45 mm (2.83 x 2.52 x 1.77 in), IP54/65
  • Operating temperature -25 to +80 °C (-13 to 176 °F)
  • Bus powered via integrated bus coupler (approx. 10 mA); ETS application HLK305

Technical Specifications

Article no. 30514100
KNX bus voltage KNX 21-32 VDC
Power consumption approx. 240 mW at 24 VDC (approx. 10 mA bus load)
Auxiliary supply Not required (integrated bus coupler)
Measuring Brightness 3-220,000 lux (0.3 to 20438 fc) (±20%); external PT1000 input -50 to +400 °C (-58 to 752 °F) (accuracy depends on probe)
Inputs / outputs & connections KNX 2-pole terminal; 1 x external PT1000 input
Protection rating IP54/65
Dimensions 72 x 64 x 45 mm (2.83 x 2.52 x 1.77 in) (plastic, transparent cover)
Operating temperature -25 to +80 °C (-13 to 176 °F) (KNX module; storage -25 to +80 °C (-13 to 176 °F))

Application note: The PT1000 temperature probe is not included and is ordered separately for the external input.
