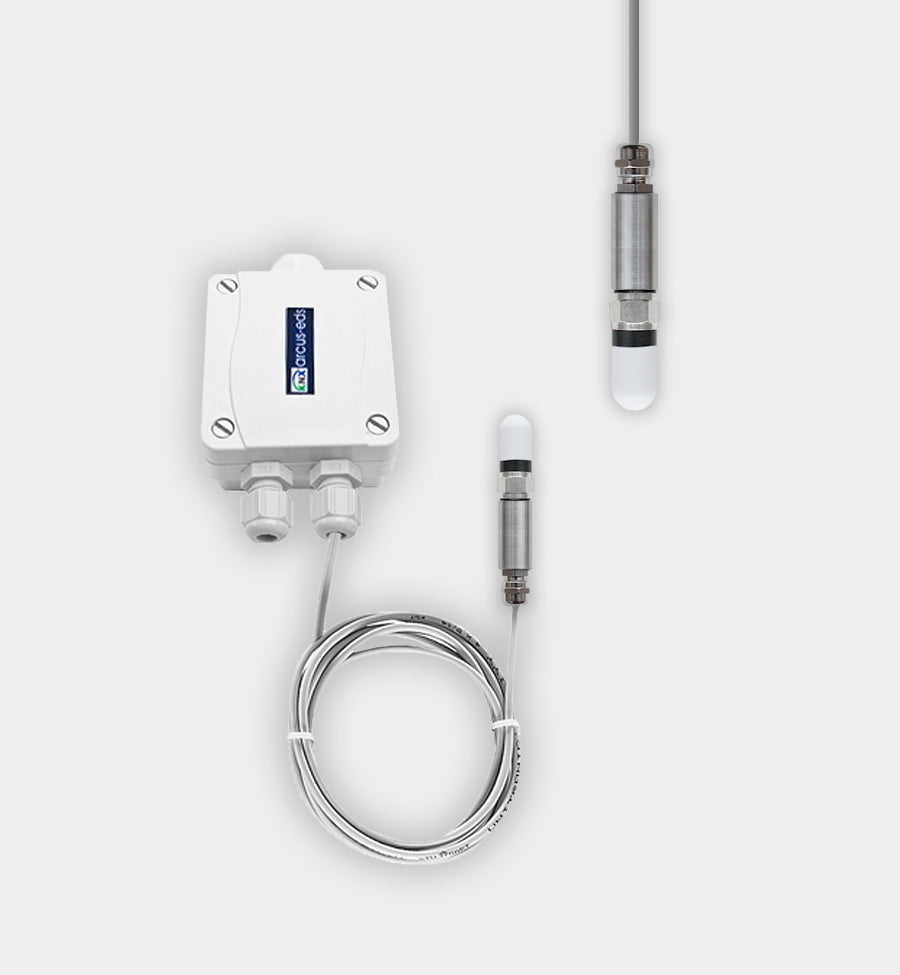

SK10-TTHC-RPFF - KNX Pendulum Temperature/Humidity Sensor with 2nd PT1000 Input, IP54/65
SK10-TTHC-RPFF - KNX Pendulum Temperature/Humidity Sensor with 2nd PT1000 Input, IP54/65

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

ARCUS EDS

SK10-TTHC-RPFF - KNX Pendulum Temperature/Humidity Sensor with 2nd PT1000 Input, IP54/65

SKU: 30541054
(0)
✗ UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or equivalent). Installation in USA projects may require a Field Evaluation by a recognized laboratory. Consult your local AHJ before specifying.
~ Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an NRTL-listed power supply, many AHJs accept non-listed SELV devices. Verify with your local AHJ before specifying.
$419.47 USD
-17% $503.36 USD $419.47 USD
In stock
On backorder
KNX & DALI Specialists

Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.

Free shipping over $500
KNX certified devices
Expert technical support

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +1 (786) 956-6821

The SK10-TTHC-RPFF is an IP54/65 KNX temperature and humidity sensor with a room pendulum probe that places the measuring point in the occupied zone, plus an input for a second, external PT1000 temperature probe (not included).

It measures temperature and relative humidity, calculates absolute humidity, dew point and enthalpy, and includes an integrated room temperature controller (RTR). The device is bus powered and configured in ETS with the HLK305 application.

Key Features

  • Room pendulum temperature/humidity probe; module mounts on wall or ceiling
  • Temperature -25 to +80 °C (-13 to 176 °F), ±0.4 °C (±0.72 °F) between 5 and 60 °C (41 to 140 °F); 0.02 °C (0.04 °F) resolution
  • Humidity 0-100 % RH, ±3 % RH between 20 and 80 % RH
  • Calculates absolute humidity, dew point and enthalpy
  • Input for a second, external PT1000 temperature probe (not included), -50 to +400 °C (-58 to 752 °F)
  • Integrated KNX bus coupler and room temperature controller (RTR)
  • Bus powered (approx. 240 mW, 10 mA bus load); no auxiliary supply

Technical Specifications

Article no. 30541054
KNX bus voltage KNX 21-32 VDC
Power consumption approx. 240 mW at 24 VDC (approx. 10 mA bus load)
Auxiliary supply Not required (integrated bus coupler)
Measuring Temperature -25 to +80 °C (-13 to 176 °F) (res. 0.02 °C (0.04 °F), ±0.4 °C (±0.72 °F) at 5-60 °C (41 to 140 °F), else ±0.8 °C (±1.4 °F)); r.H. 0-100% (res. 0.02%, ±3% at 20-80% @25 °C (77 °F), else ±5%); calculated: absolute humidity, dew point, enthalpy; external PT1000 input -50 to +400 °C (-58 to 752 °F) (probe not included)
Inputs / outputs & connections KNX 2-pole terminal; 1 x external PT1000 input
Protection rating IP54/65
Dimensions 72 x 64 x 40 mm (2.83 x 2.52 x 1.57 in) (KNX module housing, plastic)
Mounting Module on wall/ceiling; probe hangs on cable
Operating temperature -25 to +80 °C (-13 to 176 °F) (KNX module; storage -25 to +80 °C (-13 to 176 °F))

Downloads

(CE certified; not UL/NRTL listed — verify local code requirements before specifying in US installations)
