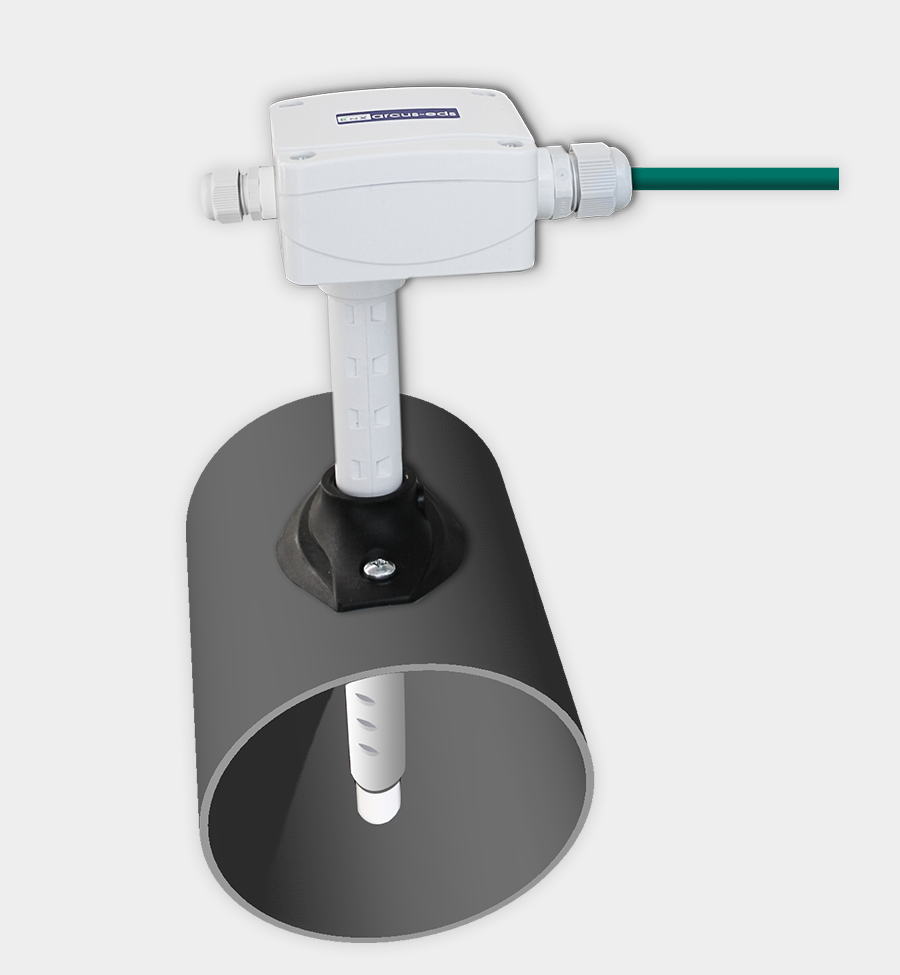

The SK10-TTHC-KFF is an IP54/65 KNX duct sensor for temperature and humidity in ventilation ducts, with an extra input for an external PT1000 temperature probe (not included). It lets one device report duct air conditions and an additional temperature point, such as a nearby coil or pipe.

It measures temperature and relative humidity, calculates absolute humidity, dew point and enthalpy, and includes an integrated room temperature controller (RTR). The device is bus powered and configured in ETS with the HLK305 application.

Key Features

  • Duct temperature/humidity probe for ventilation ducts
  • Temperature -25 to +80 °C (-13 to 176 °F), ±0.4 °C (±0.72 °F) between 5 and 60 °C (41 to 140 °F); 0.02 °C (0.04 °F) resolution
  • Humidity 0-100 % RH, ±3 % RH between 20 and 80 % RH
  • Calculates absolute humidity, dew point and enthalpy
  • Input for a second, external PT1000 temperature probe (not included), -50 to +400 °C (-58 to 752 °F)
  • Integrated KNX bus coupler and room temperature controller (RTR)
  • IP54/65 plastic module housing, 72 x 64 x 40 mm (2.83 x 2.52 x 1.57 in)

Technical Specifications

Article no. 30541057
KNX bus voltage KNX 21-32 VDC
Power consumption approx. 240 mW at 24 VDC (approx. 10 mA bus load)
Auxiliary supply Not required (integrated bus coupler)
Measuring Temperature -25 to +80 °C (-13 to 176 °F) (res. 0.02 °C (0.04 °F), ±0.4 °C (±0.72 °F) at 5-60 °C (41 to 140 °F), else ±0.8 °C (±1.4 °F)); r.H. 0-100% (res. 0.02%, ±3% at 20-80% @25 °C (77 °F), else ±5%); calculated: absolute humidity, dew point, enthalpy; external PT1000 input -50 to +400 °C (-58 to 752 °F) (probe not included)
Inputs / outputs & connections KNX 2-pole terminal; 1 x external PT1000 input
Protection rating IP54/65
Dimensions 72 x 64 x 40 mm (2.83 x 2.52 x 1.57 in) (KNX module housing, plastic)
Mounting Ventilation duct
Operating temperature -25 to +80 °C (-13 to 176 °F) (KNX module; storage -25 to +80 °C (-13 to 176 °F))
