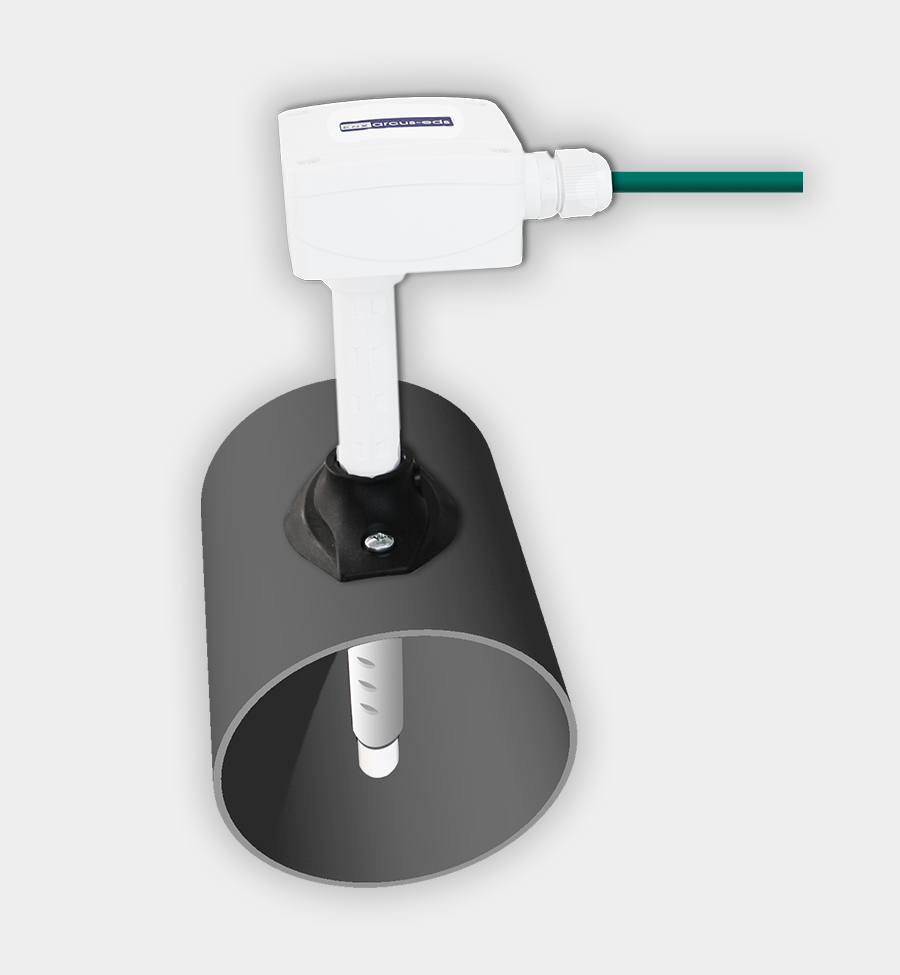

SK10-THC-VOC-KF - KNX Duct Sensor for Temperature, Humidity and VOC with Controller
SK10-THC-VOC-KF - KNX Duct Sensor for Temperature, Humidity and VOC with Controller

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

ARCUS EDS

SK10-THC-VOC-KF - KNX Duct Sensor for Temperature, Humidity and VOC with Controller

SKU: 30533001
(0)
✗ UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or equivalent). Installation in USA projects may require a Field Evaluation by a recognized laboratory. Consult your local AHJ before specifying.
~ Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an NRTL-listed power supply, many AHJs accept non-listed SELV devices. Verify with your local AHJ before specifying.
$380.02 USD
-17% $456.02 USD $380.02 USD
In stock
On backorder
KNX & DALI Specialists

Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.

Free shipping over $500
KNX certified devices
Expert technical support

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +1 (786) 956-6821

The SK10-THC-VOC-KF measures temperature, relative humidity and VOC (mixed-gas air quality) in ventilation ducts and sends the values to KNX. It also calculates absolute humidity, dew point and enthalpy and includes an integrated controller, useful for air-quality based ventilation control.

The sensor is intended for ducts with an inside diameter of at least 150 mm (5.91 in). Its 72 x 64 x 40 mm (2.83 x 2.52 x 1.57 in) plastic module housing is rated IP54/65 and is powered from the bus through the integrated bus coupler.

Key Features

  • Temperature -25 to +80 °C (-13 to 176 °F); relative humidity 10 to 95 %
  • VOC mixed-gas air quality measurement
  • Calculates absolute humidity, dew point and enthalpy
  • Integrated room temperature controller (RTR)
  • For ducts with min. 150 mm (5.91 in) inside diameter; module housing 72 x 64 x 40 mm (2.83 x 2.52 x 1.57 in), IP54/65
  • Bus powered via integrated bus coupler (approx. 10 mA); ETS application HLK305

Technical Specifications

Article no. 30533001
KNX bus voltage KNX 21-32 VDC
Power consumption approx. 240 mW at 24 VDC (approx. 10 mA bus load)
Auxiliary supply Not required (integrated bus coupler)
Measuring Temperature -25 to +80 °C (-13 to 176 °F); r.H. 10-95%; VOC range depends on sensor; calculated: abs. humidity, dew point, enthalpy
Inputs / outputs & connections KNX 2-pole terminal (red/black)
Protection rating IP54/65
Dimensions 72 x 64 x 40 mm (2.83 x 2.52 x 1.57 in) (KNX module housing, plastic)
Mounting Duct, min. 150 mm (5.91 in) inside diameter
Operating temperature -25 to +80 °C (-13 to 176 °F) (KNX module; storage -25 to +80 °C (-13 to 176 °F))

Downloads

(CE certified; not UL/NRTL listed — verify local code requirements before specifying in US installations)
