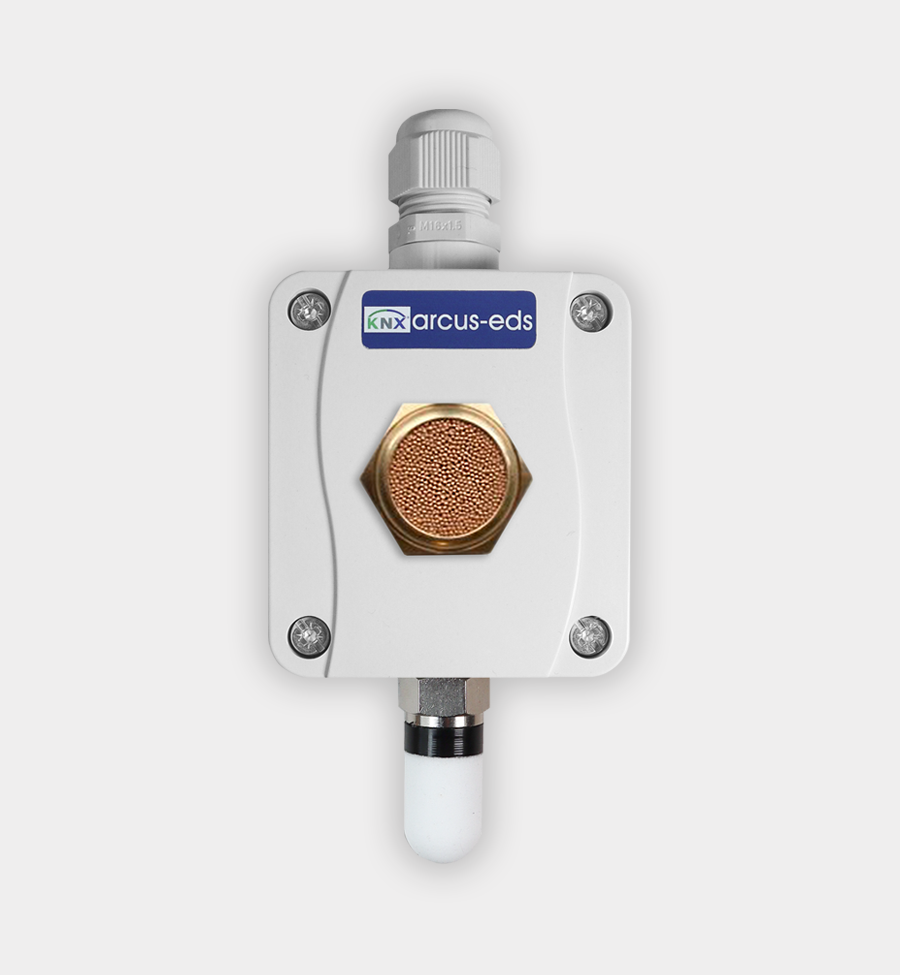

SK10-THC-VOC-AFF - KNX Outdoor Sensor for Temperature, Humidity and VOC, IP54/65
SK10-THC-VOC-AFF - KNX Outdoor Sensor for Temperature, Humidity and VOC, IP54/65

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

ARCUS EDS

SK10-THC-VOC-AFF - KNX Outdoor Sensor for Temperature, Humidity and VOC, IP54/65

SKU: 30533053
(0)
✗ UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or equivalent). Installation in USA projects may require a Field Evaluation by a recognized laboratory. Consult your local AHJ before specifying.
~ Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an NRTL-listed power supply, many AHJs accept non-listed SELV devices. Verify with your local AHJ before specifying.
$380.02 USD
-17% $456.02 USD $380.02 USD
In stock
On backorder
KNX & DALI Specialists

Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.

Free shipping over $500
KNX certified devices
Expert technical support

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +1 (786) 956-6821

The SK10-THC-VOC-AFF measures temperature, relative humidity and VOC air quality with the sensing elements mounted on its IP54/65 housing. It is designed for outdoor use and for damp rooms where a flush-mount room sensor does not fit the conditions.

The device calculates absolute humidity, dew point and enthalpy and includes an integrated controller. Power comes from the KNX bus through the integrated bus coupler, so no auxiliary supply is required.

Key Features

  • Temperature -25 to +80 °C (-13 to 176 °F), accuracy ±0.4 °C (±0.72 °F) (5 to 60 °C (41 to 140 °F)), else ±0.8 °C (±1.4 °F)
  • Relative humidity 10 to 95 %
  • VOC mixed-gas air quality measurement
  • Calculates absolute humidity, dew point and enthalpy
  • Sensors on the housing; plastic housing 72 x 64 x 40 mm (2.83 x 2.52 x 1.57 in), IP54/65
  • Integrated controller (RTR); bus powered, no auxiliary supply; ETS application HLK305

Technical Specifications

Article no. 30533053
KNX bus voltage KNX 21-32 VDC
Power consumption approx. 240 mW at 24 VDC (approx. 10 mA bus load)
Auxiliary supply Not required (integrated bus coupler)
Measuring Temperature -25 to +80 °C (-13 to 176 °F) (±0.4 °C (±0.72 °F) at 5-60 °C (41 to 140 °F), else ±0.8 °C (±1.4 °F)); r.H. 10-95%; VOC range depends on sensor; calculated: abs. humidity, dew point, enthalpy
Inputs / outputs & connections KNX 2-pole terminal (red/black)
Protection rating IP54/65
Dimensions 72 x 64 x 40 mm (2.83 x 2.52 x 1.57 in) (KNX module housing, plastic)
Operating temperature -25 to +80 °C (-13 to 176 °F) (KNX module; storage -25 to +80 °C (-13 to 176 °F))

Downloads

(CE certified; not UL/NRTL listed — verify local code requirements before specifying in US installations)
