SK10-THC-RPFF-MMF - KNX Temperature/Humidity Pendulum Sensor, Metal Membrane Filter
SK10-THC-RPFF-MMF - KNX Temperature/Humidity Pendulum Sensor, Metal Membrane Filter

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

ARCUS EDS

SK10-THC-RPFF-MMF - KNX Temperature/Humidity Pendulum Sensor, Metal Membrane Filter

SKU: 30531056
(0)
✗ UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or equivalent). Installation in USA projects may require a Field Evaluation by a recognized laboratory. Consult your local AHJ before specifying.
~ Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an NRTL-listed power supply, many AHJs accept non-listed SELV devices. Verify with your local AHJ before specifying.
$406.32 USD
-17% $487.58 USD $406.32 USD
In stock
On backorder
KNX & DALI Specialists

Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.

Free shipping over $500
KNX certified devices
Expert technical support

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +1 (786) 956-6821

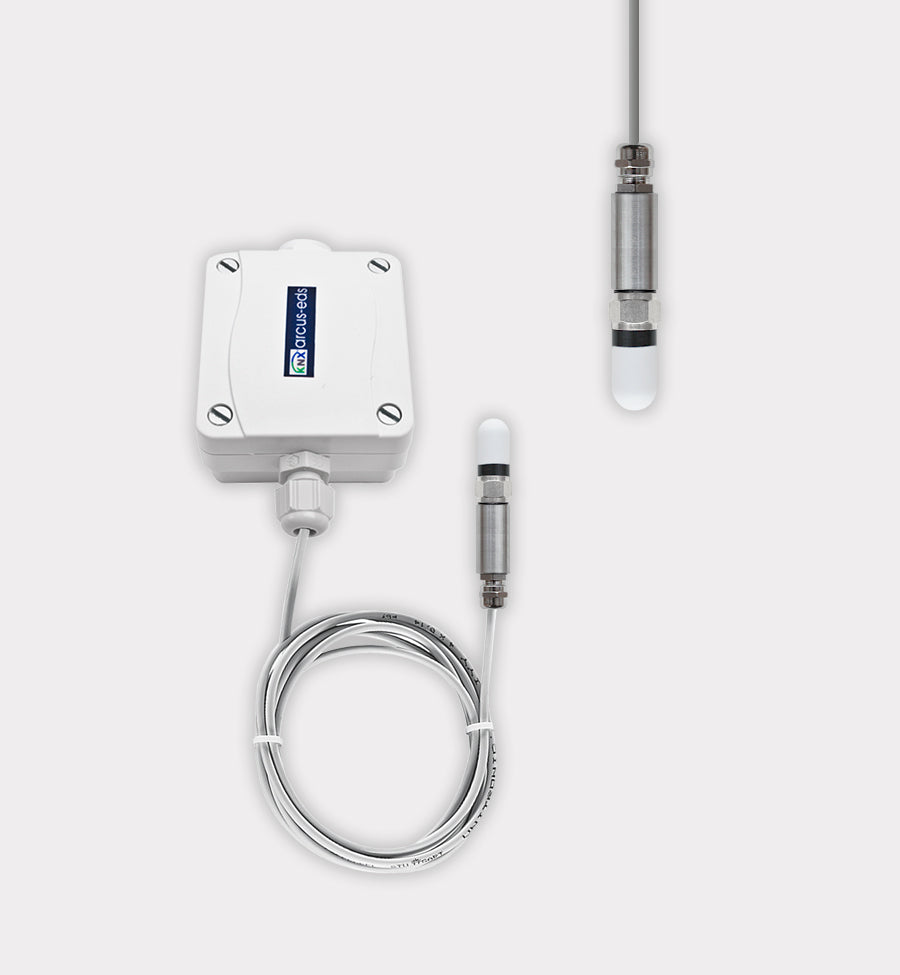

The SK10-THC-RPFF-MMF is an IP54/65 KNX temperature and humidity sensor with a room pendulum probe on a 2 m (6.6 ft) cable, protected by a metal membrane filter for condensation-prone areas.

It measures temperature from -25 to +80 °C (-13 to 176 °F) and relative humidity from 0 to 100 %, and calculates absolute humidity, dew point and enthalpy. An integrated room temperature controller (RTR) is included; the device is bus powered and configured in ETS with the HLK305 application.

Key Features

  • Room pendulum probe on 2 m (6.6 ft) cable with metal membrane filter
  • Module mounts on wall or ceiling
  • Temperature -25 to +80 °C (-13 to 176 °F), ±0.4 °C (±0.72 °F) between 5 and 60 °C (41 to 140 °F); 0.02 °C (0.04 °F) resolution
  • Humidity 0-100 % RH, ±3 % RH between 20 and 80 % RH
  • Calculates absolute humidity, dew point and enthalpy
  • Integrated KNX bus coupler and room temperature controller (RTR)
  • Bus powered (approx. 240 mW, 10 mA bus load); no auxiliary supply

Technical Specifications

Article no. 30531056
KNX bus voltage KNX 21-32 VDC
Power consumption approx. 240 mW at 24 VDC (approx. 10 mA bus load)
Auxiliary supply Not required (integrated bus coupler)
Measuring Temperature -25 to +80 °C (-13 to 176 °F) (res. 0.02 °C (0.04 °F), ±0.4 °C (±0.72 °F) at 5-60 °C (41 to 140 °F), else ±0.8 °C (±1.4 °F)); r.H. 0-100% (res. 0.02%, ±3% at 20-80% @25 °C (77 °F), else ±5%); calculated: absolute humidity, dew point, enthalpy
Inputs / outputs & connections KNX 2-pole terminal (red/black)
Protection rating IP54/65
Dimensions 72 x 64 x 40 mm (2.83 x 2.52 x 1.57 in) (KNX module housing, plastic)
Mounting Module on wall/ceiling; probe hangs on cable
Operating temperature -25 to +80 °C (-13 to 176 °F) (KNX module; storage -25 to +80 °C (-13 to 176 °F))

Downloads

(CE certified; not UL/NRTL listed — verify local code requirements before specifying in US installations)
