SK10-THC-KF10 - KNX Compact Duct Temperature/Humidity Sensor with Controller
✗
UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or
equivalent). Installation in USA projects may require a Field Evaluation
by a recognized laboratory. Consult your local AHJ before specifying.
~
Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as
the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an
NRTL-listed power supply, many AHJs accept non-listed SELV devices.
Verify with your local AHJ before specifying.
Regular price
$353.72 USD
Regular price
-17%
$424.46 USD
Sale price
$353.72 USD
Couldn't load pickup availability
KNX & DALI Specialists
Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.
Free shipping over $500
KNX certified devices
Expert technical support
Got questions?
Feel free to get in touch
Ask an expert!

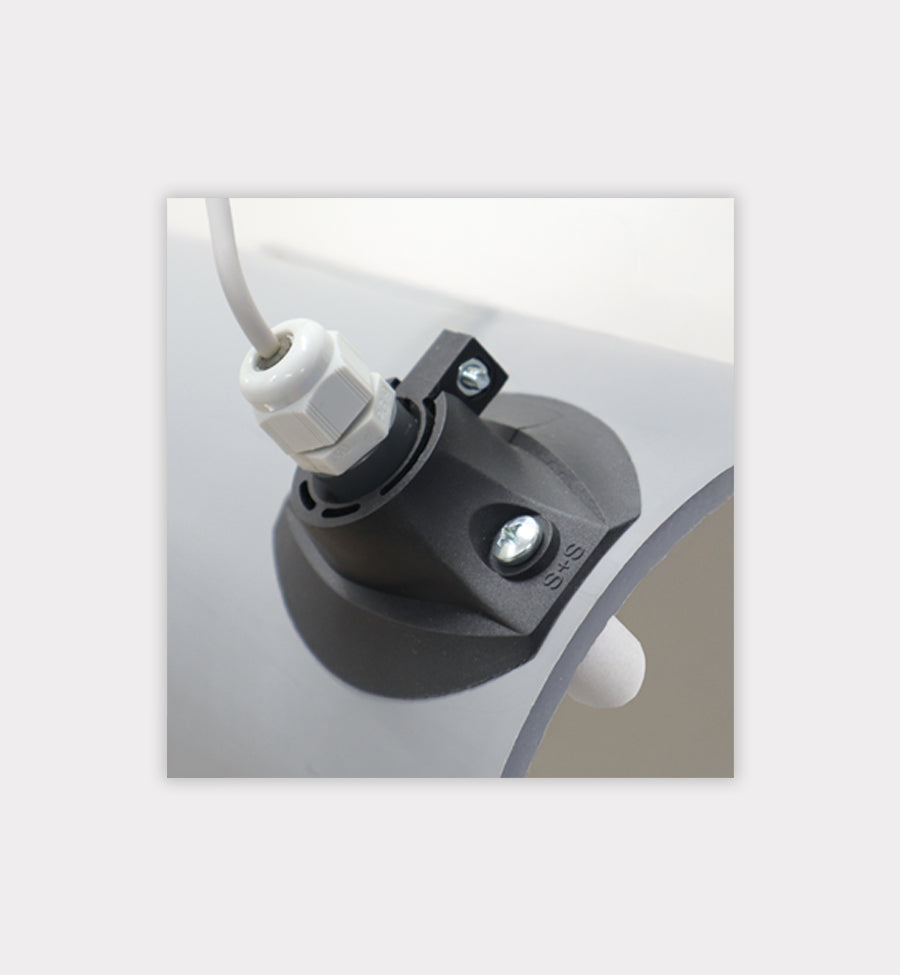

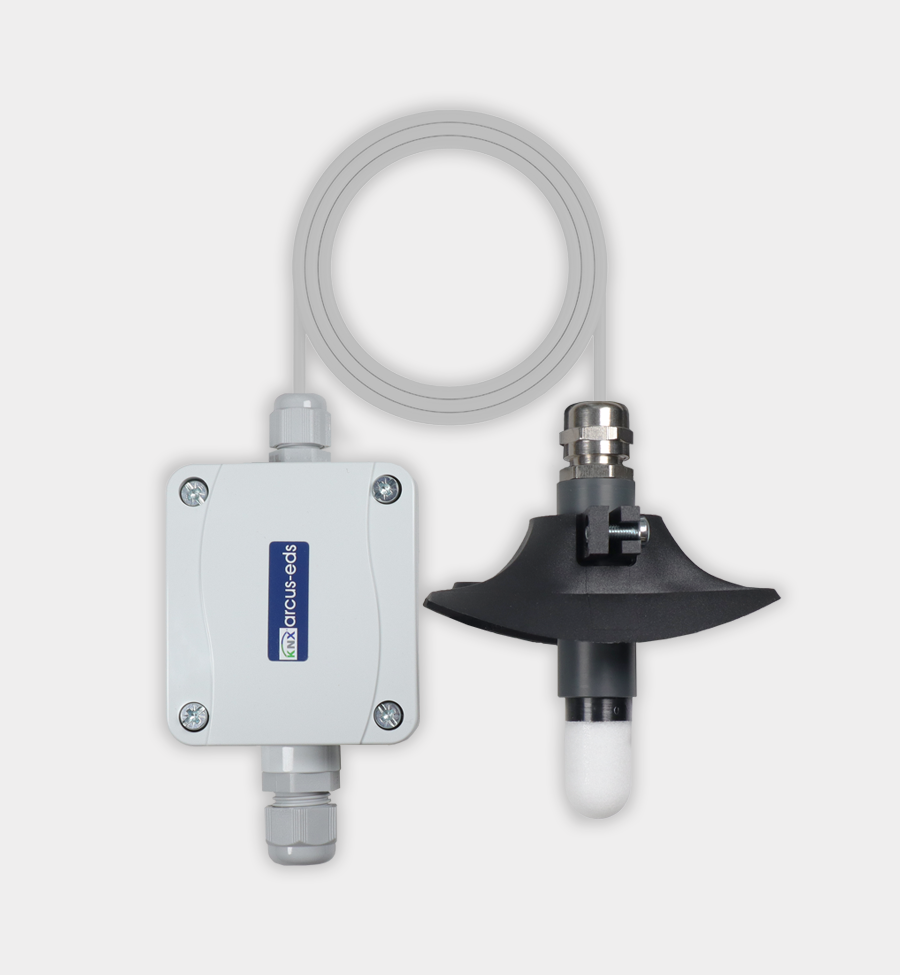

The SK10-THC-KF10 is a compact KNX duct temperature and humidity sensor with a 125 mm (4.92 in) probe on a 1.8 m (5.9 ft) cable. It fits round ducts from 100 mm (3.94 in) diameter as well as rectangular ducts, with an insertion depth of 50 to 100 mm (1.97 to 3.94 in).
It measures temperature from -25 to +80 °C (-13 to 176 °F) and relative humidity from 0 to 100 %. The housing is rated IP65 and the sensor IP54. An integrated room temperature controller (RTR) is included, no auxiliary supply is needed, and it is configured in ETS with the HLK305 application.
Key Features
- Duct probe 125 mm (4.92 in) x 20 mm (0.79 in) dia. on 1.8 m (5.9 ft) cable
- Round ducts from 100 mm (3.94 in) diameter and rectangular ducts
- Temperature -25 to +80 °C (-13 to 176 °F), ±0.4 °C (±0.72 °F) between 5 and 60 °C (41 to 140 °F); 0.02 °C (0.04 °F) resolution
- Humidity 0-100 % RH, ±3 % RH between 20 and 80 % RH
- IP65 housing, IP54 sensor
- Integrated KNX bus coupler and room temperature controller (RTR)
- Bus powered, 10 mA bus load; ETS application HLK305
Technical Specifications
| Article no. | 30531010 |
|---|---|
| KNX bus voltage | KNX 21-32 VDC |
| Power consumption | 10 mA KNX bus load |
| Auxiliary supply | Not required (integrated bus coupler) |
| Measuring | Temperature -25 to +80 °C (-13 to 176 °F) (res. 0.02 °C (0.04 °F), ±0.4 °C (±0.72 °F) at 5-60 °C (41 to 140 °F), else ±0.8 °C (±1.4 °F)); r.H. 0-100% (res. 0.02%, ±3% at 20-80% @20 °C (68 °F), else ±5%) |
| Inputs / outputs & connections | KNX 2-pole terminal (red/black) |
| Protection rating | IP65 housing / IP54 sensor |
| Dimensions | Probe 125 x 20 dia.; housing per drawing |
| Mounting | Air ducts from 100 mm (3.94 in) diameter, also rectangular ducts; sensor cable 1.8 m (5.9 ft) |
| Operating temperature | -25 to +80 °C (-13 to 176 °F) (KNX module; storage -25 to +80 °C (-13 to 176 °F)) |
Downloads
(CE certified; not UL/NRTL listed — verify local code requirements before specifying in US installations)
