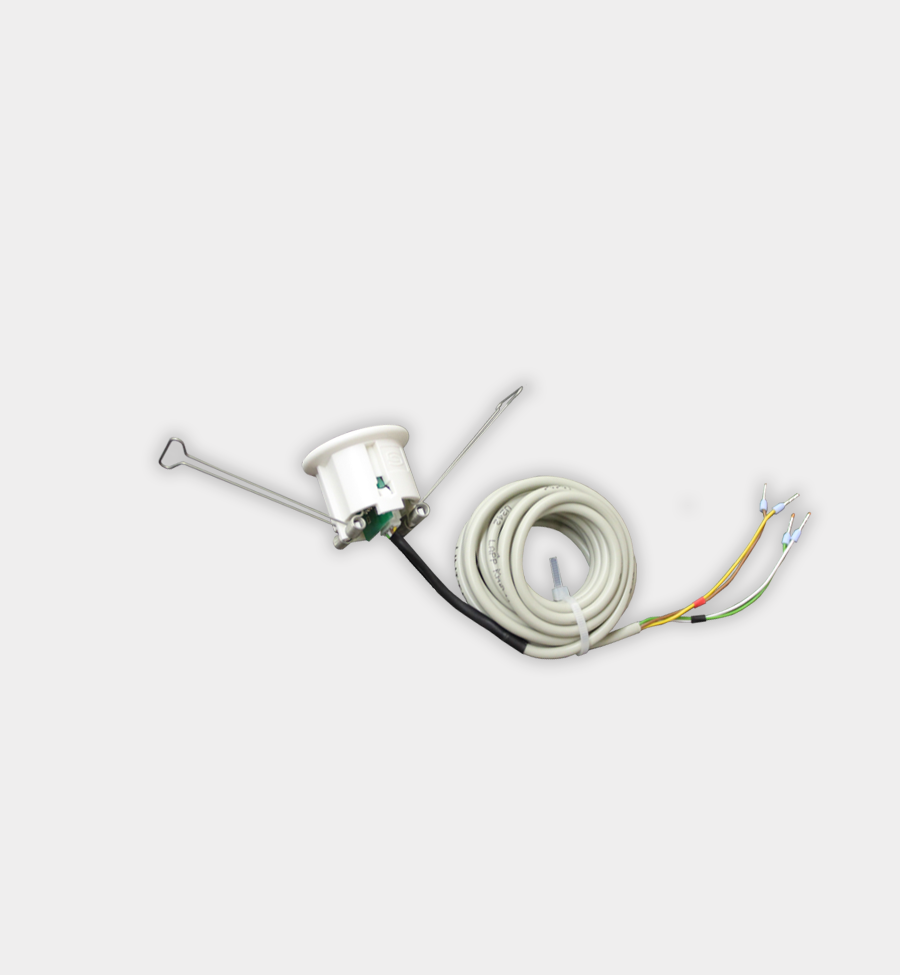

The SK10-THC-DFF is a KNX temperature and humidity module with an integrated room temperature controller (RTR), supplied with a ceiling-recessed humidity/temperature probe. It measures room climate discreetly from the ceiling, keeping walls free of visible sensors.

As part of the SK10-THC family of KNX climate sensors, it gives integrators a clean option for spaces where a wall-mounted room sensor is not wanted, while still providing temperature and humidity values and a control function on the KNX bus.

Key Features

  • Ceiling-recessed SHT21 temperature/humidity probe included, -20 to +90 °C (-4 to 194 °F), 0-100 % rH
  • Measures room temperature and humidity discreetly from the ceiling
  • Integrated KNX bus coupler and room temperature controller (RTR)
  • IP54/65 KNX module housing, 72 x 64 x 40 mm (2.83 x 2.52 x 1.57 in)
  • Bus powered; no auxiliary supply
  • ETS application HLK305

Technical Specifications

Article no. 30531016
KNX bus voltage KNX 21-32 VDC
Power consumption approx. 240 mW at 24 VDC (approx. 10 mA bus load)
Auxiliary supply Not required (integrated bus coupler)
Measuring SHT21 ceiling-recessed temperature/humidity probe, -20 to +90 °C (-4 to 194 °F), 0-100 % rH
Inputs / outputs & connections KNX 2-pole terminal (red/black); probe on 13.5 cm (5.31 in) PVC cable
Protection rating IP54/65 (KNX module); IP30 (ceiling probe)
Dimensions 72 x 64 x 40 mm (2.83 x 2.52 x 1.57 in) (KNX module housing)
Mounting KNX module surface mount; probe recessed in the ceiling
Operating temperature -25 to +80 °C (-13 to 176 °F) (KNX module)

(CE certified; not UL/NRTL listed — verify local code requirements before specifying in US installations)
