SK10-THC-CO2-RPFF - KNX Pendulum Sensor for Temperature, Humidity and CO2, 2 m Cable
SK10-THC-CO2-RPFF - KNX Pendulum Sensor for Temperature, Humidity and CO2, 2 m Cable

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

ARCUS EDS

SK10-THC-CO2-RPFF - KNX Pendulum Sensor for Temperature, Humidity and CO2, 2 m (6.6 ft) Cable

SKU: 30532064
(0)
✗ UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or equivalent). Installation in USA projects may require a Field Evaluation by a recognized laboratory. Consult your local AHJ before specifying.
~ Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an NRTL-listed power supply, many AHJs accept non-listed SELV devices. Verify with your local AHJ before specifying.
$466.80 USD
-17% $560.16 USD $466.80 USD
In stock
On backorder
KNX & DALI Specialists

Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.

Free shipping over $500
KNX certified devices
Expert technical support

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +1 (786) 956-6821

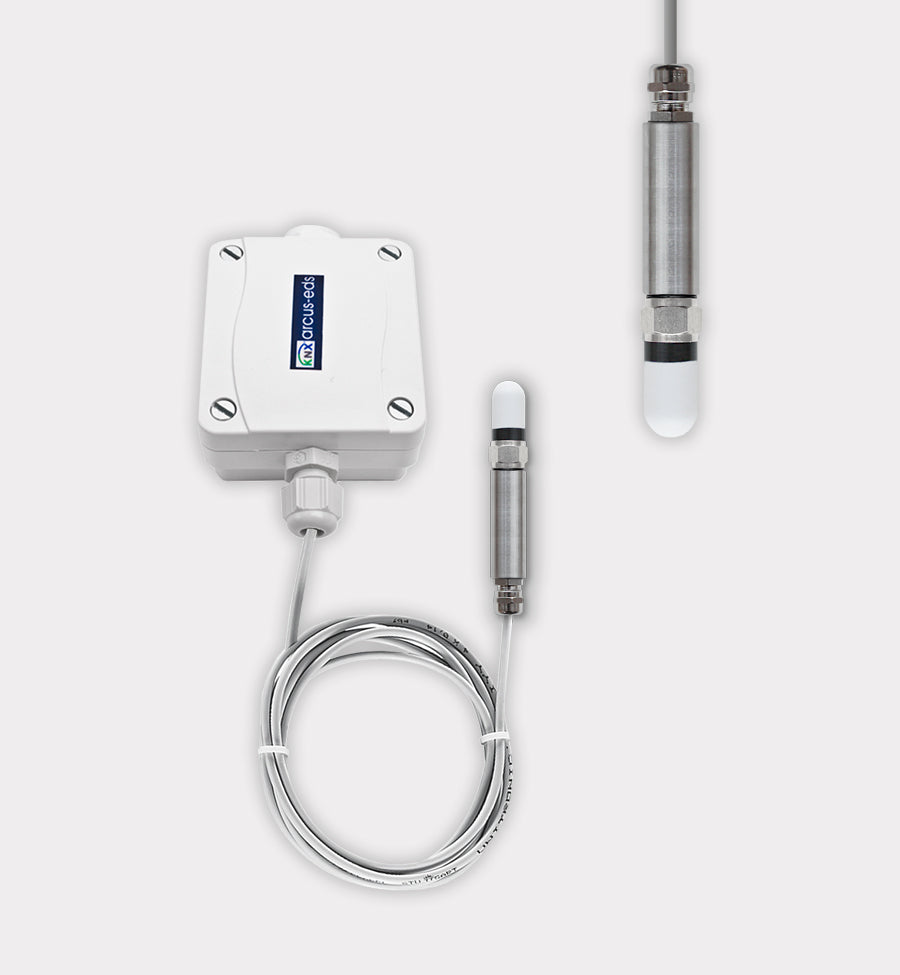

The SK10-THC-CO2-RPFF pairs a wall-mounted KNX module with a pendulum probe that hangs below the ceiling on a 2 m (6.6 ft) cable, so temperature, humidity and CO2 are measured in the room air rather than at the wall.

The 20 x 120 mm (0.79 x 4.72 in) probe covers CO2 up to 40,000 ppm and temperatures from -25 to +80 °C (-13 to 176 °F). The module includes an integrated controller and is powered from the KNX bus without an auxiliary supply.

Key Features

  • Pendulum probe 20 x 120 mm (0.79 x 4.72 in) on 2 m (6.6 ft) cable, hangs below the ceiling
  • Temperature -25 to +80 °C (-13 to 176 °F), accuracy ±0.4 °C (±0.72 °F) (5 to 60 °C (41 to 140 °F))
  • Relative humidity 0 to 100 %, accuracy ±3 % (20 to 80 %)
  • CO2 0 to 40,000 ppm, accuracy 50 ppm + 5 % (400 to 2000 ppm), response time 120 s
  • Wall-mounted module 72 x 64 x 40 mm (2.83 x 2.52 x 1.57 in), IP65; probe IP54
  • Integrated controller (RTR); bus powered; ETS application HLK305

Technical Specifications

Article no. 30532064
KNX bus voltage KNX 21-32 VDC
Power consumption approx. 240 mW at 24 VDC (approx. 10 mA bus load)
Auxiliary supply Not required (integrated bus coupler)
Measuring Probe: temperature -25 to +80 °C (-13 to 176 °F) (±0.4 °C (±0.72 °F) at 5-60 °C (41 to 140 °F)); r.H. 0-100% (±3% at 20-80%); CO2 0-40000 ppm, 50 ppm + 5% (400-2000 ppm), response 120 s
Inputs / outputs & connections KNX 2-pole terminal (red/black)
Protection rating IP65 module / IP54 probe
Dimensions 72 x 64 x 40 mm (2.83 x 2.52 x 1.57 in) (KNX module housing, plastic)
Mounting Module on wall; probe hangs under ceiling on 2 m (6.6 ft) cable (20 x 120 mm (0.79 x 4.72 in))
Operating temperature -25 to +80 °C (-13 to 176 °F) (KNX module; storage -25 to +80 °C (-13 to 176 °F))

Downloads

(CE certified; not UL/NRTL listed — verify local code requirements before specifying in US installations)
