SK10-TC-RSTF - KNX Radiant Temperature Sensor with Controller, IP54/65
SK10-TC-RSTF - KNX Radiant Temperature Sensor with Controller, IP54/65

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

ARCUS EDS

SK10-TC-RSTF - KNX Radiant Temperature Sensor with Controller, IP54/65

SKU: 30516061
(0)
✗ UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or equivalent). Installation in USA projects may require a Field Evaluation by a recognized laboratory. Consult your local AHJ before specifying.
~ Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an NRTL-listed power supply, many AHJs accept non-listed SELV devices. Verify with your local AHJ before specifying.
$314.27 USD
-17% $377.13 USD $314.27 USD
In stock
On backorder
KNX & DALI Specialists

Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.

Free shipping over $500
KNX certified devices
Expert technical support

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +1 (786) 956-6821

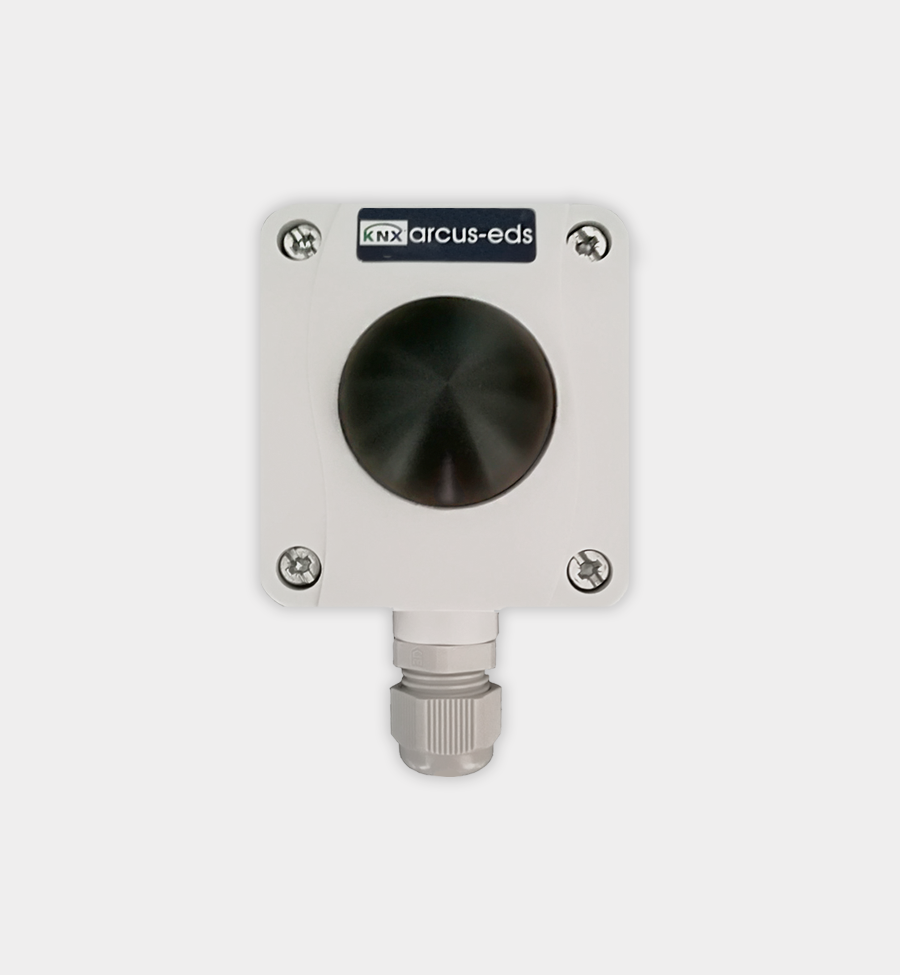

The SK10-TC-RSTF combines an IP54/65 KNX module with a dark radiation (black globe) temperature sensor that captures the temperature occupants actually feel. It is a good fit for rooms with radiant heating or cooling, where air temperature alone does not reflect comfort.

The sensor measures from -5 to +60 °C (23 to 140 °F) with Class B accuracy and 0.02 °C (0.04 °F) resolution. An integrated room temperature controller (RTR) is built in, the unit is bus powered, and it is configured in ETS with the HLK305 application.

Key Features

  • Dark radiation (black globe) temperature sensor, -5 to +60 °C (23 to 140 °F)
  • Class B accuracy ±(0.3 °C (±0.54 °F) + 0.005·t); 0.02 °C (0.04 °F) resolution
  • Integrated KNX bus coupler and room temperature controller (RTR)
  • IP54/65 plastic module housing, 72 x 64 x 40 mm (2.83 x 2.52 x 1.57 in)
  • Bus powered (approx. 240 mW, 10 mA bus load); no auxiliary supply
  • ETS application HLK305

Technical Specifications

Article no. 30516061
KNX bus voltage KNX 21-32 VDC
Power consumption approx. 240 mW at 24 VDC (approx. 10 mA bus load)
Auxiliary supply Not required (integrated bus coupler)
Measuring Dark radiation (black globe) temperature sensor, -5 to +60 °C (23 to 140 °F); Class B, ±(0.3 °C (±0.54 °F) + 0.005*T); resolution 0.02 °C (0.04 °F)
Inputs / outputs & connections KNX 2-pole terminal (red/black)
Protection rating IP54/65
Dimensions 72 x 64 x 40 mm (2.83 x 2.52 x 1.57 in) (KNX module housing, plastic)
Operating temperature -5 to +60 °C (23 to 140 °F) (KNX module)

Downloads

(CE certified; not UL/NRTL listed — verify local code requirements before specifying in US installations)
