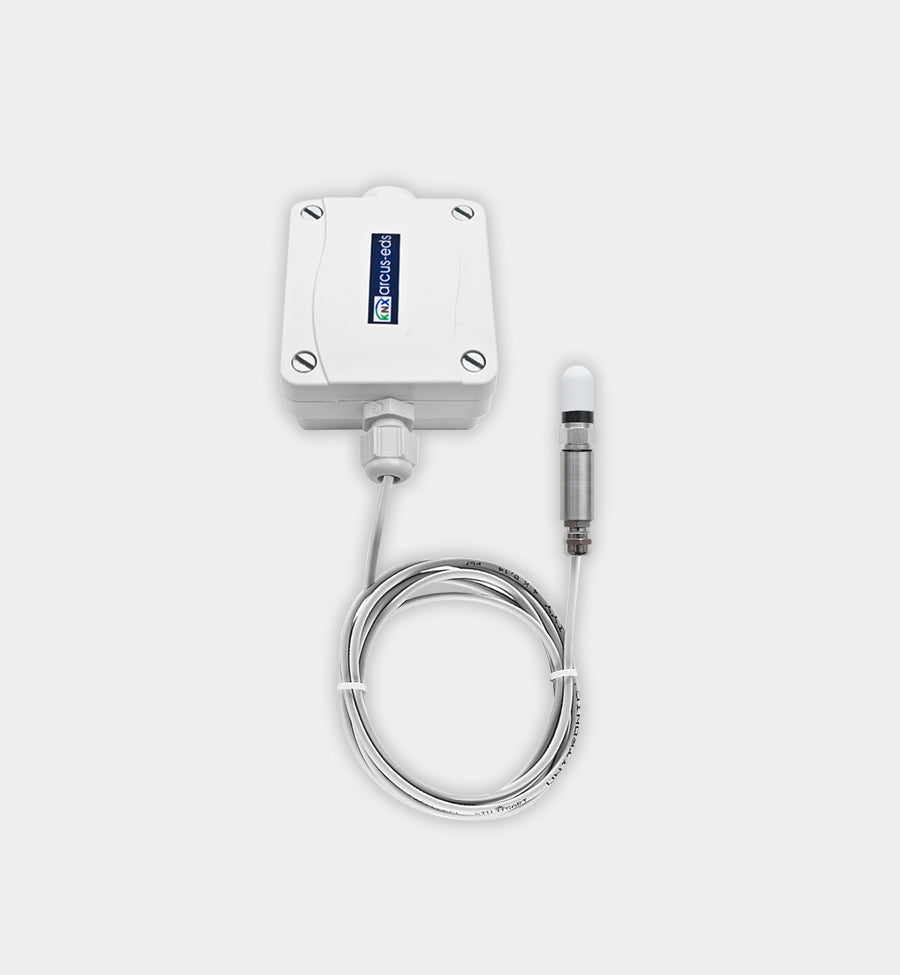

The SK10-TC-RPTF1 is an IP54/65 KNX room temperature controller with a pendulum PT1000 probe in a 100 mm (3.94 in) stainless protective tube, hanging on a 1.5 m (4.9 ft) PVC cable. It measures air temperature in the occupied zone of halls, warehouses and spaces with high ceilings.

Measuring range is -5 to +60 °C (23 to 140 °F) with Class B accuracy and 0.02 °C (0.04 °F) resolution. The KNX module includes an integrated bus coupler and room temperature controller (RTR), runs from the bus without an auxiliary supply, and is configured in ETS with the HLK305 application.

Key Features

  • Pendulum PT1000 probe in 100 mm (3.94 in) stainless (V4A) tube on 1.5 m (4.9 ft) PVC cable
  • Module mounts on wall or ceiling; probe hangs on its cable
  • Measuring range -5 to +60 °C (23 to 140 °F)
  • Class B accuracy ±(0.3 °C (±0.54 °F) + 0.005·t); 0.02 °C (0.04 °F) resolution
  • Integrated KNX bus coupler and room temperature controller (RTR)
  • Bus powered (approx. 240 mW, 10 mA bus load); no auxiliary supply
  • ETS application HLK305

Technical Specifications

Article no. 30511050
KNX bus voltage KNX 21-32 VDC
Power consumption approx. 240 mW at 24 VDC (approx. 10 mA bus load)
Auxiliary supply Not required (integrated bus coupler)
Measuring PT1000 room pendulum probe (100 mm (3.94 in) V4A tube, M12) on 1.5 m (4.9 ft) PVC cable, -5 to +60 °C (23 to 140 °F); Class B, ±(0.3 °C (±0.54 °F) + 0.005*T); resolution 0.02 °C (0.04 °F)
Inputs / outputs & connections KNX 2-pole terminal (red/black)
Protection rating IP54/65
Dimensions 72 x 64 x 40 mm (2.83 x 2.52 x 1.57 in) (KNX module housing, plastic)
Mounting Module on wall/ceiling; probe hangs on cable
Operating temperature -25 to +80 °C (-13 to 176 °F) (KNX module; storage -25 to +80 °C (-13 to 176 °F))
