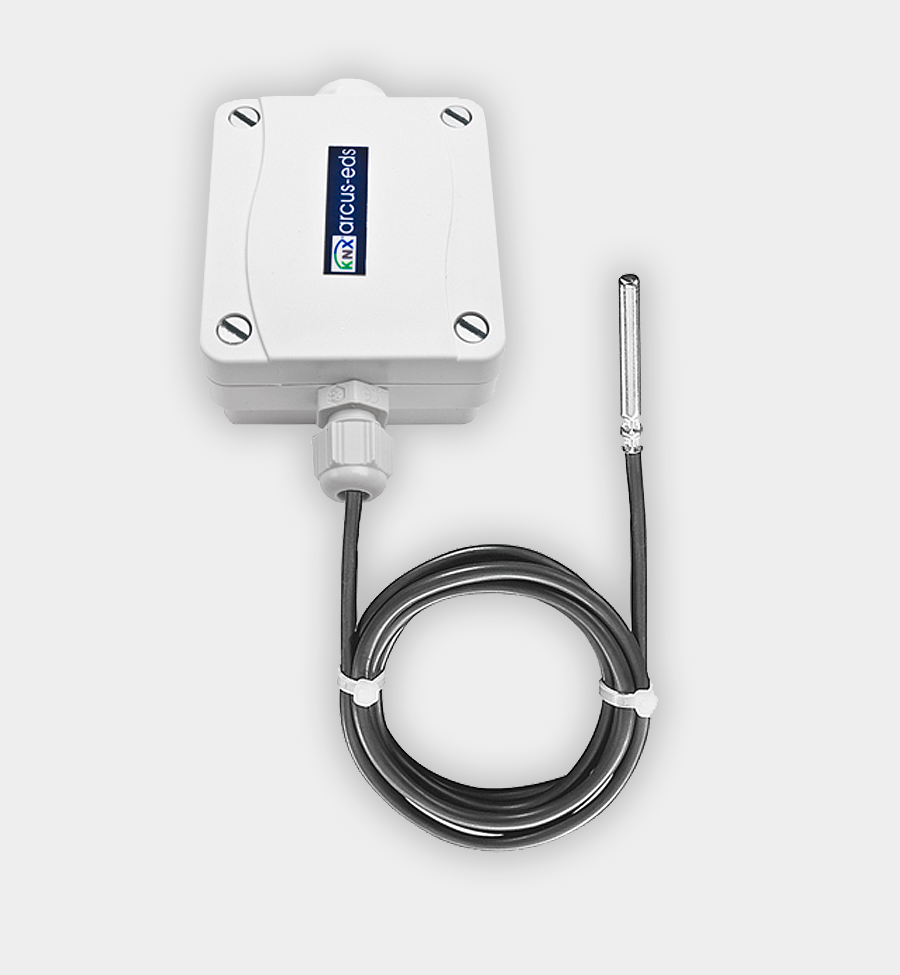

SK10-TC-HTF - KNX Temperature Controller with PT1000 Sleeve Probe, IP54/65
✗
UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or
equivalent). Installation in USA projects may require a Field Evaluation
by a recognized laboratory. Consult your local AHJ before specifying.
~
Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as
the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an
NRTL-listed power supply, many AHJs accept non-listed SELV devices.
Verify with your local AHJ before specifying.
Regular price
$248.52 USD
Regular price
-17%
$298.23 USD
Sale price
$248.52 USD
Couldn't load pickup availability
KNX & DALI Specialists
Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.
Free shipping over $500
KNX certified devices
Expert technical support
Got questions?
Feel free to get in touch
Ask an expert!
The SK10-TC-HTF is an IP54/65 KNX temperature controller supplied with a PT1000 sleeve (cable) probe on a 1.5 m (4.9 ft) cable, suited to immersion sleeves, tanks and general HVAC temperature points.
Three cable materials cover different temperature ranges: PVC (-35 to +105 °C (-31 to 221 °F)), silicone (-50 to +180 °C (-58 to 356 °F)) and PTFE (-50 to +250 °C (-58 to 482 °F)). All versions offer Class B accuracy, 0.02 °C (0.04 °F) resolution and an integrated room temperature controller (RTR). The module is bus powered and configured in ETS with the HLK305 application.
Key Features
- PT1000 sleeve probe on 1.5 m (4.9 ft) cable
- Range by cable: PVC -35 to +105 °C (-31 to 221 °F), silicone -50 to +180 °C (-58 to 356 °F), PTFE -50 to +250 °C (-58 to 482 °F)
- Class B accuracy ±(0.3 °C (±0.54 °F) + 0.005·t); 0.02 °C (0.04 °F) resolution
- Integrated KNX bus coupler and room temperature controller (RTR)
- IP54/65 plastic module housing, 72 x 64 x 40 mm (2.83 x 2.52 x 1.57 in)
- Bus powered (approx. 240 mW, 10 mA bus load); no auxiliary supply
- ETS application HLK305
Technical Specifications
| Article no. | 30511002 (PVC Cable), 30511003 (Silicone Cable), 30511055 (PTFE Cable) |
|---|---|
| KNX bus voltage | KNX 21-32 VDC |
| Power consumption | approx. 240 mW at 24 VDC (approx. 10 mA bus load) |
| Auxiliary supply | Not required (integrated bus coupler) |
| Measuring |
PVC Cable: PT1000 sleeve probe, -35 to +105 °C (-31 to 221 °F); Class B, ±(0.3 °C (±0.54 °F) + 0.005*T); resolution 0.02 °C (0.04 °F) Silicone Cable: PT1000 sleeve probe, -50 to +180 °C (-58 to 356 °F); Class B, ±(0.3 °C (±0.54 °F) + 0.005*T); resolution 0.02 °C (0.04 °F) PTFE Cable: PT1000 sleeve probe, -50 to +250 °C (-58 to 482 °F); Class B, ±(0.3 °C (±0.54 °F) + 0.005*T); resolution 0.02 °C (0.04 °F) |
| Inputs / outputs & connections | KNX 2-pole terminal (red/black) |
| Protection rating | IP54/65 |
| Dimensions | 72 x 64 x 40 mm (2.83 x 2.52 x 1.57 in) (KNX module housing, plastic) |
| Operating temperature | -25 to +80 °C (-13 to 176 °F) (KNX module; storage -25 to +80 °C (-13 to 176 °F)) |
