SK10-TC-GTF-TPE - KNX Temperature Controller with Waterproof TPE PT1000 Probe, IP65
SK10-TC-GTF-TPE - KNX Temperature Controller with Waterproof TPE PT1000 Probe, IP65

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

ARCUS EDS

SK10-TC-GTF-TPE - KNX Temperature Controller with Waterproof TPE PT1000 Probe, IP65

SKU: 30511057
(0)
✗ UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or equivalent). Installation in USA projects may require a Field Evaluation by a recognized laboratory. Consult your local AHJ before specifying.
~ Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an NRTL-listed power supply, many AHJs accept non-listed SELV devices. Verify with your local AHJ before specifying.
$290.60 USD
-17% $348.72 USD $290.60 USD
In stock
On backorder
KNX & DALI Specialists

Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.

Free shipping over $500
KNX certified devices
Expert technical support

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +1 (786) 956-6821

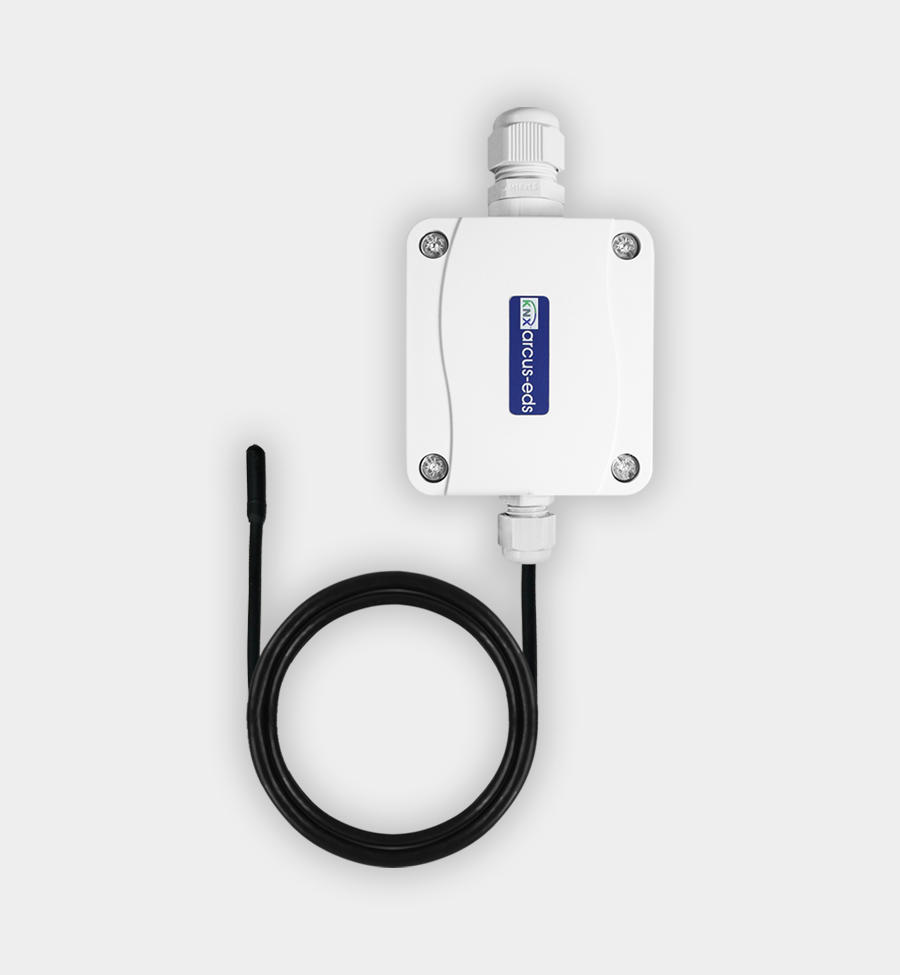

The SK10-TC-GTF-TPE pairs an IP65 KNX temperature controller with a double-insulated TPE rubber PT1000 probe on a 2 m (6.6 ft) cable. The probe is rated IP68 and saltwater resistant, making it suitable for pools, marine and other wet installations.

Measuring range is -40 to +105 °C (-40 to 221 °F) with Class B accuracy and 0.02 °C (0.04 °F) resolution. An integrated room temperature controller (RTR) is included, the device runs from the KNX bus without an auxiliary supply, and it is configured in ETS with the HLK305 application.

Key Features

  • Double-insulated TPE rubber PT1000 probe on 2 m (6.6 ft) cable
  • Probe rated IP68, saltwater resistant; module housing IP65
  • Measuring range -40 to +105 °C (-40 to 221 °F)
  • Class B accuracy ±(0.3 °C (±0.54 °F) + 0.005·t); 0.02 °C (0.04 °F) resolution
  • Integrated KNX bus coupler and room temperature controller (RTR)
  • Bus powered (approx. 240 mW, 10 mA bus load); no auxiliary supply
  • ETS application HLK305

Technical Specifications

Article no. 30511057
KNX bus voltage KNX 21-32 VDC
Power consumption approx. 240 mW at 24 VDC (approx. 10 mA bus load)
Auxiliary supply Not required (integrated bus coupler)
Measuring PT1000 double-insulated rubber (TPE) probe, -40 to +105 °C (-40 to 221 °F); Class B, ±(0.3 °C (±0.54 °F) + 0.005*T); resolution 0.02 °C (0.04 °F)
Inputs / outputs & connections KNX 2-pole terminal (red/black)
Protection rating IP65 housing; probe IP68 (saltwater resistant)
Dimensions 72 x 64 x 40 mm (2.83 x 2.52 x 1.57 in) (KNX module housing, plastic)
Operating temperature -25 to +80 °C (-13 to 176 °F) (KNX module; storage -25 to +80 °C (-13 to 176 °F))

Downloads

(CE certified; not UL/NRTL listed — verify local code requirements before specifying in US installations)
