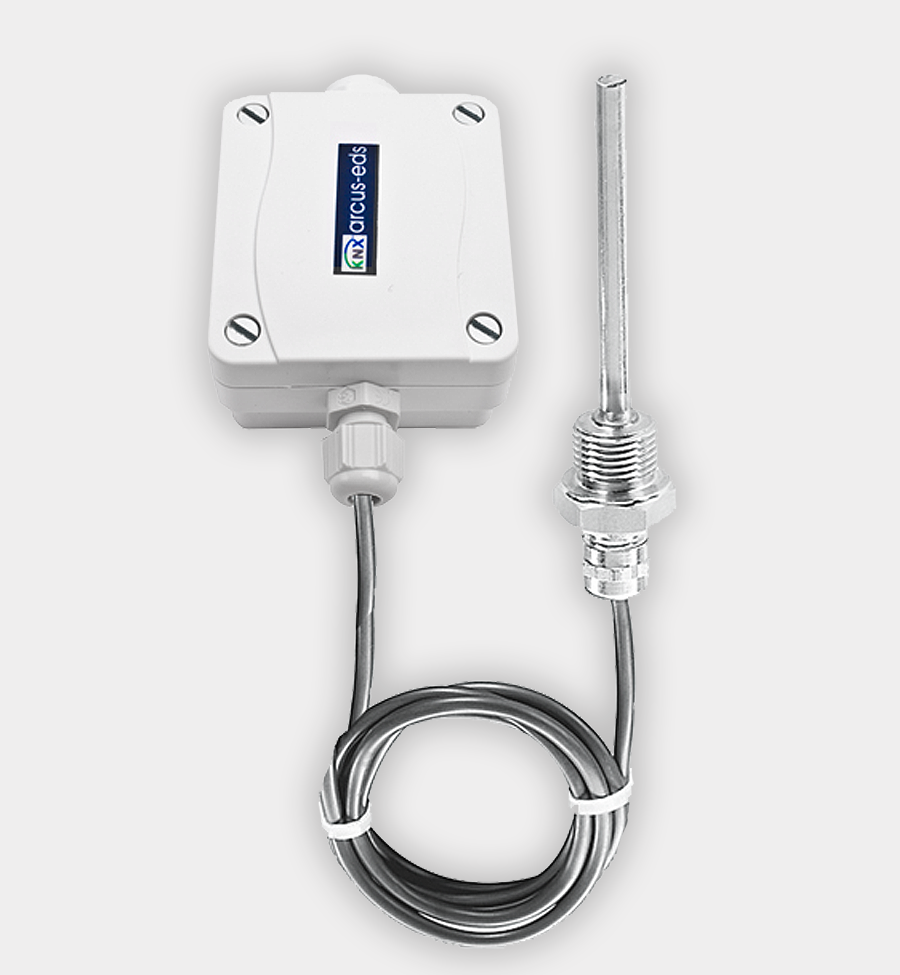

The SK10-TC-ESTF is an IP54/65 KNX temperature controller supplied with a stainless steel (V4A) PT1000 screw-in immersion probe with G 1/2" thread on a 1.5 m (4.9 ft) cable. It measures temperatures in tanks, pipes and heating circuits.
Choose a 50 mm (1.97 in) or 100 mm (3.94 in) probe length with PVC cable (-35 to +105 °C (-31 to 221 °F)) or silicone cable (-50 to +180 °C (-58 to 356 °F)). All versions offer Class B accuracy, 0.02 °C (0.04 °F) resolution and an integrated room temperature controller (RTR). The module is bus powered and configured in ETS with the HLK305 application.
Key Features
- Stainless steel (V4A) PT1000 screw-in probe, G 1/2" thread, 50 or 100 mm (1.97 or 3.94 in)
- 1.5 m (4.9 ft) cable: PVC -35 to +105 °C (-31 to 221 °F) or silicone -50 to +180 °C (-58 to 356 °F)
- Class B accuracy ±(0.3 °C (±0.54 °F) + 0.005·t); 0.02 °C (0.04 °F) resolution
- Integrated KNX bus coupler and room temperature controller (RTR)
- IP54/65 plastic module housing, 72 x 64 x 40 mm (2.83 x 2.52 x 1.57 in)
- Bus powered (approx. 240 mW, 10 mA bus load); no auxiliary supply
- ETS application HLK305
Technical Specifications
| Article no. | 30511008 (50 mm (1.97 in) PVC Cable), 30511009 (100 mm (3.94 in) PVC Cable), 30511010 (50 mm (1.97 in) Silicone Cable), 30511011 (100 mm (3.94 in) Silicone Cable) |
|---|---|
| KNX bus voltage | KNX 21-32 VDC |
| Power consumption | approx. 240 mW at 24 VDC (approx. 10 mA bus load) |
| Auxiliary supply | Not required (integrated bus coupler) |
| Measuring |
50 mm (1.97 in) PVC Cable: PT1000 screw-in/immersion probe, 50 mm (1.97 in) V4A, G 1/2" thread, 1.5 m (4.9 ft) PVC cable, -35 to +105 °C (-31 to 221 °F); Class B, ±(0.3 °C (±0.54 °F) + 0.005*T); resolution 0.02 °C (0.04 °F) 100 mm (3.94 in) PVC Cable: PT1000 screw-in/immersion probe, 100 mm (3.94 in) V4A, G 1/2" thread, 1.5 m (4.9 ft) PVC cable, -35 to +105 °C (-31 to 221 °F); Class B, ±(0.3 °C (±0.54 °F) + 0.005*T); resolution 0.02 °C (0.04 °F) 50 mm (1.97 in) Silicone Cable: PT1000 screw-in/immersion probe, 50 mm (1.97 in) V4A, G 1/2" thread, 1.5 m (4.9 ft) Silicone cable, -50 to +180 °C (-58 to 356 °F); Class B, ±(0.3 °C (±0.54 °F) + 0.005*T); resolution 0.02 °C (0.04 °F) 100 mm (3.94 in) Silicone Cable: PT1000 screw-in/immersion probe, 100 mm (3.94 in) V4A, G 1/2" thread, 1.5 m (4.9 ft) Silicone cable, -50 to +180 °C (-58 to 356 °F); Class B, ±(0.3 °C (±0.54 °F) + 0.005*T); resolution 0.02 °C (0.04 °F) |
| Inputs / outputs & connections | KNX 2-pole terminal (red/black) |
| Protection rating | IP54/65 |
| Dimensions | 72 x 64 x 40 mm (2.83 x 2.52 x 1.57 in) (KNX module housing, plastic) |
| Mounting | Screw-in G 1/2" into immersion sleeve/fitting |
| Operating temperature | -25 to +80 °C (-13 to 176 °F) (KNX module; storage -25 to +80 °C (-13 to 176 °F)) |
Application note: The probe uses a G 1/2" (BSP) thread; adapters may be required for NPT fittings.
