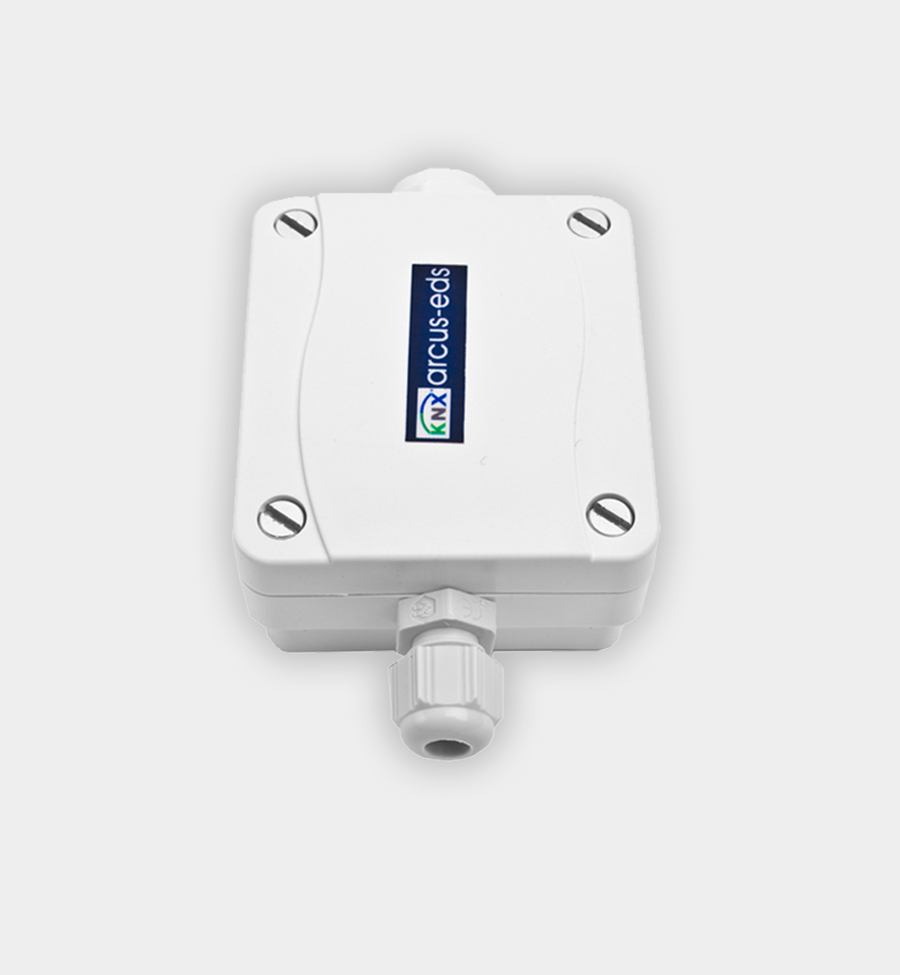

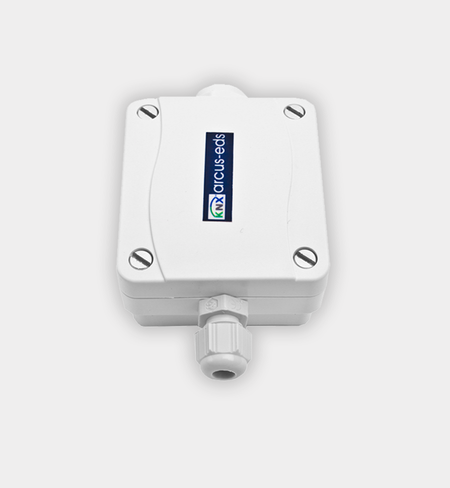

SK10-TC-DTF - KNX Temperature Controller with Ceiling-Recessed PT1000 Probe
✗
UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or
equivalent). Installation in USA projects may require a Field Evaluation
by a recognized laboratory. Consult your local AHJ before specifying.
~
Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as
the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an
NRTL-listed power supply, many AHJs accept non-listed SELV devices.
Verify with your local AHJ before specifying.
Regular price
$274.82 USD
Regular price
-17%
$329.79 USD
Sale price
$274.82 USD
Couldn't load pickup availability
KNX & DALI Specialists
Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.
Free shipping over $500
KNX certified devices
Expert technical support
Got questions?
Feel free to get in touch
Ask an expert!
The SK10-TC-DTF is a KNX temperature module with an integrated room temperature controller (RTR), supplied with a ceiling-recessed PT1000 probe. It measures room air temperature discreetly from the ceiling, keeping walls free of visible sensors.
As part of the SK10-TC family of KNX temperature controllers, it gives integrators a clean option for spaces where a wall-mounted room sensor is not wanted, while still providing a room temperature value and control function on the KNX bus.
Key Features

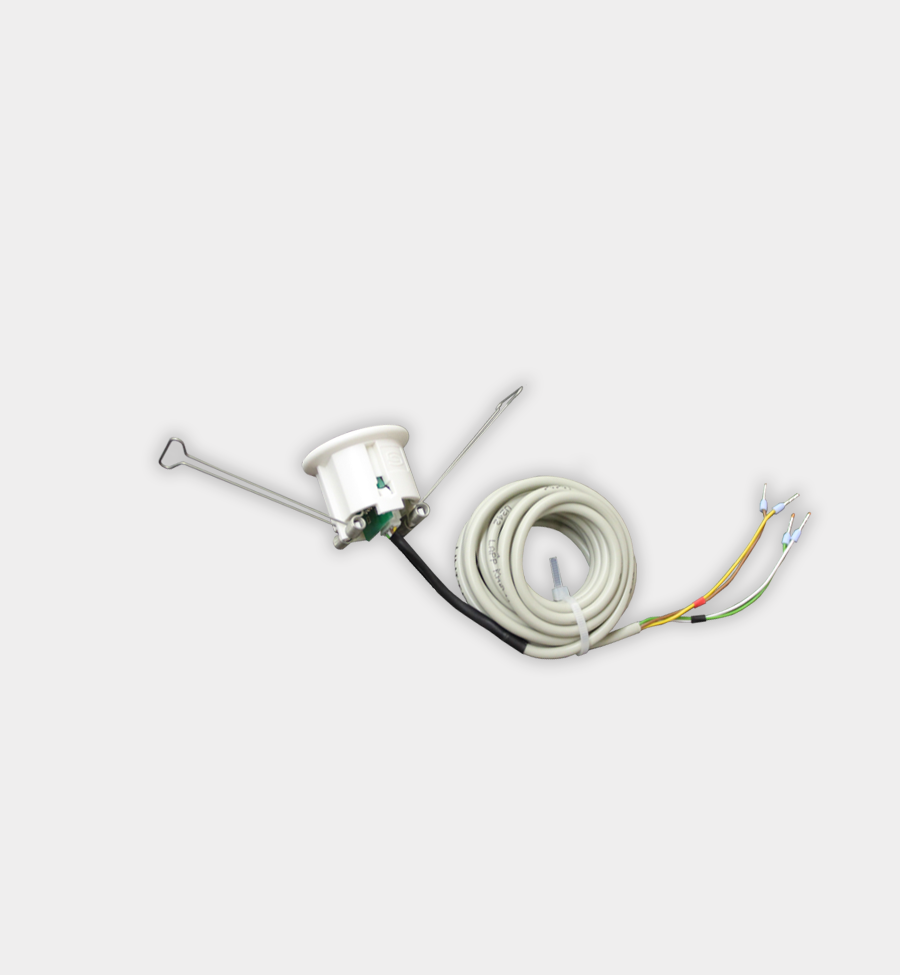

- Ceiling-recessed PT1000 temperature probe included, -20 to +90 °C (-4 to 194 °F)
- Measures room air temperature discreetly from the ceiling
- Integrated KNX bus coupler and room temperature controller (RTR)
- IP54/65 KNX module housing, 72 x 64 x 40 mm (2.83 x 2.52 x 1.57 in)
- Bus powered; no auxiliary supply
- ETS application HLK305
Technical Specifications
| Article no. | 30511012 |
|---|---|
| KNX bus voltage | KNX 21-32 VDC |
| Power consumption | approx. 240 mW at 24 VDC (approx. 10 mA bus load) |
| Auxiliary supply | Not required (integrated bus coupler) |
| Measuring | PT1000 ceiling-recessed probe, -20 to +90 °C (-4 to 194 °F) |
| Inputs / outputs & connections | KNX 2-pole terminal (red/black); probe on 13.5 cm (5.31 in) PVC cable |
| Protection rating | IP54/65 (KNX module); IP30 (ceiling probe) |
| Dimensions | 72 x 64 x 40 mm (2.83 x 2.52 x 1.57 in) (KNX module housing) |
| Mounting | KNX module surface mount; probe recessed in the ceiling |
| Operating temperature | -25 to +80 °C (-13 to 176 °F) (KNX module) |
(CE certified; not UL/NRTL listed — verify local code requirements before specifying in US installations)
