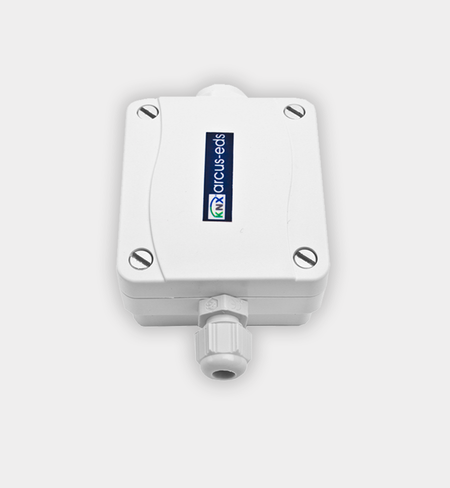

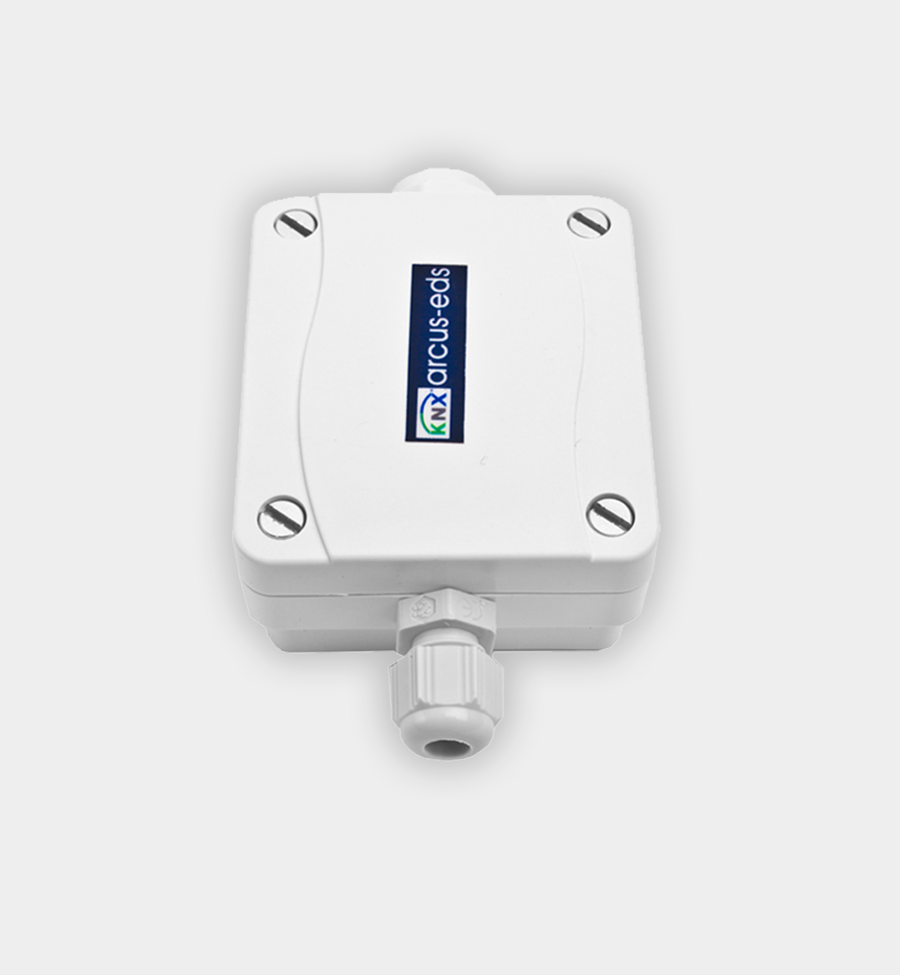

The SK10-TC is an IP54/65 KNX temperature module with an integrated room temperature controller and a terminal for one external PT1000 probe of any construction. The probe is not included, so the module can be paired with whatever sensor style the application calls for.

Depending on the probe, it measures from -50 to +400 °C (-58 to 752 °F) with 0.02 °C (0.04 °F) resolution, making it a flexible base unit for damp rooms, outdoor points and mechanical rooms. It runs entirely from the KNX bus and is configured in ETS with the HLK305 application.

Key Features

  • Input for 1 external PT1000 probe of any construction (not included)
  • -50 to +400 °C (-58 to 752 °F) depending on probe; 0.02 °C (0.04 °F) resolution
  • Integrated KNX bus coupler and room temperature controller (RTR)
  • IP54/65 plastic module housing, 72 x 64 x 40 mm (2.83 x 2.52 x 1.57 in)
  • Bus powered (approx. 240 mW, 10 mA bus load); no auxiliary supply
  • ETS application HLK305

Technical Specifications

Article no. 30510000
KNX bus voltage KNX 21-32 VDC
Power consumption approx. 240 mW at 24 VDC (approx. 10 mA bus load)
Auxiliary supply Not required (integrated bus coupler)
Measuring Input for one external PT1000 (not included), any construction; -50 to +400 °C (-58 to 752 °F) depending on probe; resolution 0.02 °C (0.04 °F); accuracy depends on probe
Inputs / outputs & connections KNX 2-pole terminal (red/black)
Protection rating IP54/65
Dimensions 72 x 64 x 40 mm (2.83 x 2.52 x 1.57 in) (KNX module housing, plastic)
Operating temperature -25 to +80 °C (-13 to 176 °F) (KNX module; storage -25 to +80 °C (-13 to 176 °F))

Application note: Requires an external PT1000 temperature probe, sold separately.

Downloads

(CE certified; not UL/NRTL listed — verify local code requirements before specifying in US installations)
