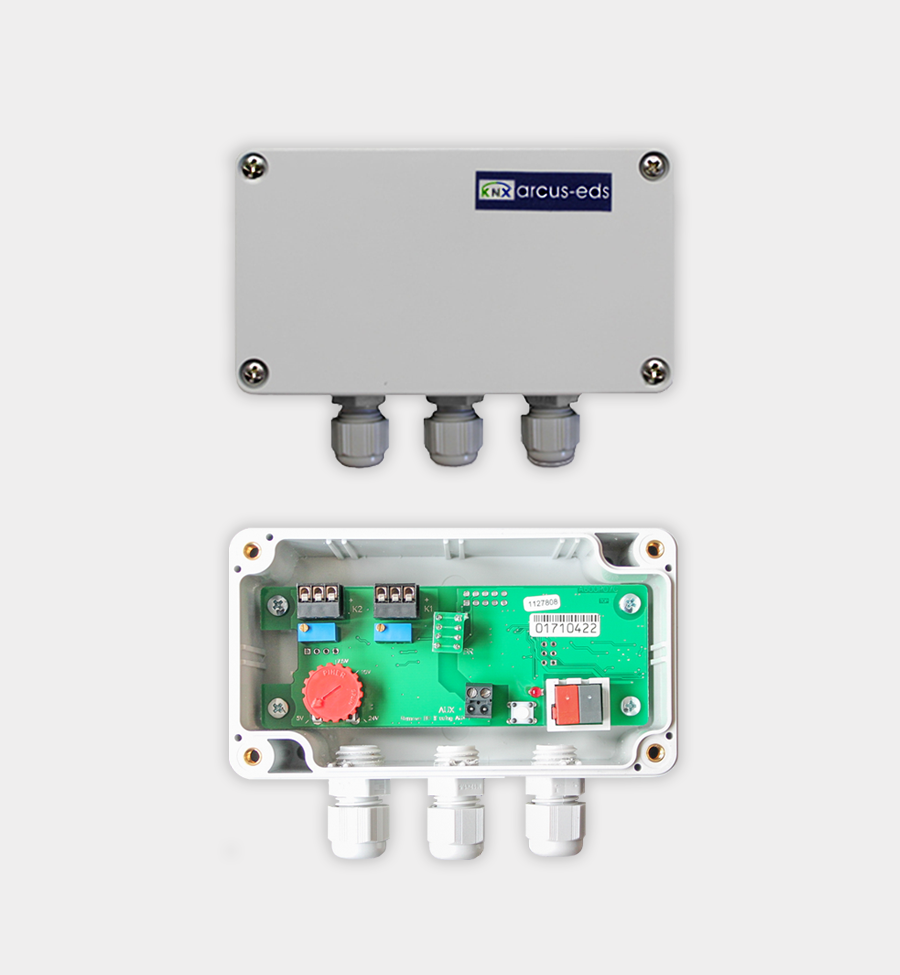

The SK08-AN2 reads two 0-10 V signals from third-party transmitters and sends the values to KNX. It sits in a gasketed IP54/65 surface-mount housing with cable glands, so it can be installed in damp locations or outdoors next to the measuring point.

The module can feed sensor power from the bus (10 VDC, factory default, non-isolated). Where the connected electronics require it, an optional 9-30 VDC auxiliary supply provides galvanic isolation of the sensor supply from KNX.

Key Features

  • 2 analog voltage inputs, 0-10 VDC; upper range set by potentiometer
  • Sensor supply output, approx. 360 mW total for both channels
  • Optional 9-30 VDC auxiliary supply for galvanic isolation from KNX
  • Bus powered, approx. 240 mW at 24 VDC
  • IP54/65 impact-resistant ABS housing with neoprene seal and cable glands, 115 x 65 x 55 mm (4.53 x 2.56 x 2.17 in)
  • Operating range -20 to +55 °C (-4 to 131 °F), 0-95 % RH non-condensing
  • ETS product S8-AN2

Technical Specifications

Article no. 30806202
KNX bus voltage KNX 21-32 VDC
Power consumption approx. 240 mW at 24 VDC; sensor supply output approx. 360 mW total for both channels
Auxiliary supply 9-30 VDC auxiliary supply required depending on connected measuring electronics; needed for galvanic isolation of sensor supply from KNX (factory default: non-isolated, 10 VDC sensor supply from bus)
Measuring 2 analog voltage inputs 0-10 VDC (upper range set by potentiometer); resolution/accuracy not stated
Inputs / outputs & connections 2 x 0-10 V analog inputs, sensor supply output, KNX terminal red/black
Protection rating IP54/65
Dimensions 115 x 65 x 55 mm (4.53 x 2.56 x 2.17 in)
Mounting Surface mount on wall/ceiling with 2 screws, PG cable glands; outdoor/damp areas; grey impact-resistant ABS, neoprene seal
Operating temperature -20 to +55 °C (-4 to 131 °F) (storage -20 to +85 °C (-4 to 185 °F)), 0-95 % RH non-condensing

Downloads

(CE certified; not UL/NRTL listed — verify local code requirements before specifying in US installations)
