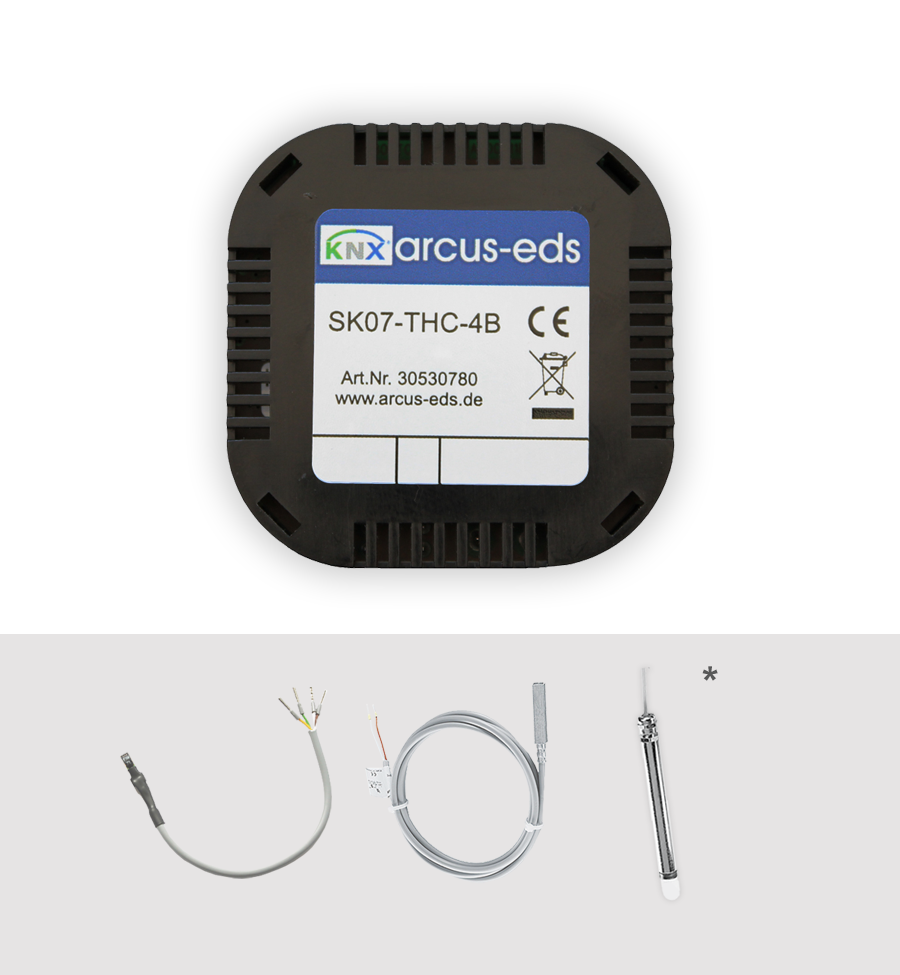

The SK07-THC-4B is a flush-box KNX controller module that installs behind the switch design of your choice and reads an external HTU21 temperature/humidity element, sold separately. It includes an integrated bus coupler and room temperature controller (RTR).

With the HTU21 element connected, it measures temperature and relative humidity and calculates absolute humidity, dew point and enthalpy. Four binary inputs/outputs are provided. The module is bus powered and configured in ETS with the HLK305 application.

Key Features

  • Connection for external HTU21 temperature/humidity element (not included)
  • Temperature -25 to +80 °C (-13 to 176 °F), ±0.4 °C (±0.72 °F) between 5 and 60 °C (41 to 140 °F); 0.02 °C (0.04 °F) resolution
  • Humidity 0-100 % RH, ±3 % RH between 20 and 80 % RH
  • Calculates absolute humidity, dew point and enthalpy
  • 4 binary inputs/outputs
  • Behind-the-switch module, 50 x 50 x 20 mm (1.97 x 1.97 x 0.79 in), for standard flush-mounted boxes; IP20
  • Bus powered; ETS application HLK305

Technical Specifications

Article no. 30530780
KNX bus voltage KNX 21-32 VDC
Power consumption approx. 240 mW at 24 VDC (bus powered)
Auxiliary supply Not required (bus powered)
Measuring External HTU21 temperature/humidity element (not included); Temperature -25..+80 °C (-13 to 176 °F), res. 0.02 °C (0.04 °F), accuracy ±0.4 °C (±0.72 °F) (5..60 °C (41 to 140 °F)) else ±0.8 °C (±1.4 °F); Humidity 0..100 % rH, res. 0.02 % rH, accuracy ±3 % rH (20..80 %) at +20 °C (68 °F) else ±5 % rH; calculates abs. humidity, dew point, enthalpy
Inputs / outputs & connections 4 binary inputs/outputs; connection for external HTU21 sensor
Protection rating IP20
Dimensions 50 x 50 x 20 (W x H x D), 55 mm (2.17 in) diagonal
Mounting Behind-the-switch module in standard flush-mounted box, indoor
Operating temperature -25 to +80 °C (-13 to 176 °F) (storage -25 to +80 °C (-13 to 176 °F))

Application note: Requires an external HTU21 temperature/humidity element, sold separately.
