SK07-TC-6B - KNX Behind-Switch Temperature Controller Module, 6 Binary I/O, without Probe

SKU: 30510790
(0)
✗ UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or equivalent). Installation in USA projects may require a Field Evaluation by a recognized laboratory. Consult your local AHJ before specifying.
~ Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an NRTL-listed power supply, many AHJs accept non-listed SELV devices. Verify with your local AHJ before specifying.
$169.63 USD
-17% $203.55 USD $169.63 USD
In stock
On backorder
KNX & DALI Specialists

Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.

Free shipping over $500
KNX certified devices
Expert technical support

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +1 (786) 956-6821

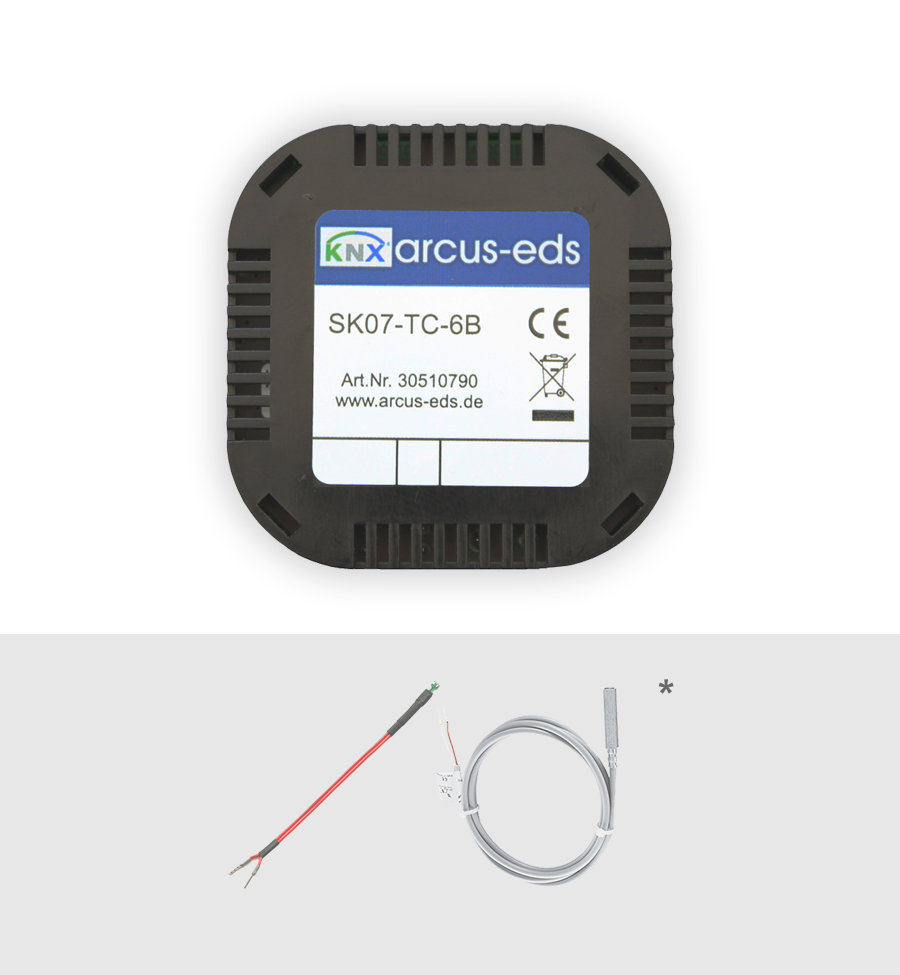

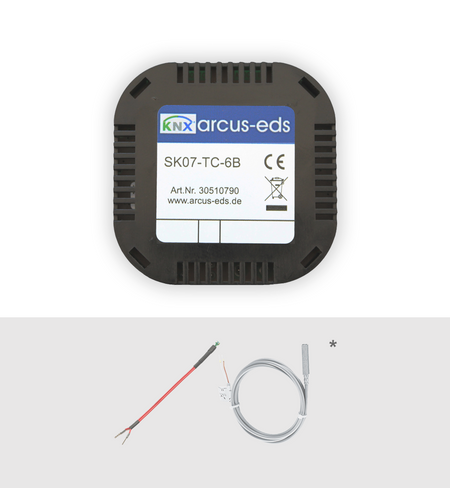

The SK07-TC-6B is a compact KNX room temperature controller module that installs in a standard flush-mounted box behind the switch design of your choice. It reads one external PT1000 temperature probe, sold separately, and includes an integrated room temperature controller (RTR).

Six binary inputs/outputs (4 floating plus 2 at 3 V/1 mA) read push buttons or contacts and can drive LEDs. The module is fully bus powered and configured in ETS with the HLK305 application.

Key Features

  • Integrated KNX bus coupler and room temperature controller (RTR)
  • Input for 1 external PT1000 probe (not included); -50 to +400 °C (-58 to 752 °F) depending on probe, 0.02 °C (0.04 °F) resolution
  • 6 binary inputs/outputs: 4 floating + 2 at 3 V/1 mA
  • Behind-the-switch module, 50 x 50 x 20 mm (1.97 x 1.97 x 0.79 in), for standard flush-mounted boxes; IP20
  • Bus powered (approx. 240 mW); no auxiliary supply
  • ETS application HLK305

Technical Specifications

Article no. 30510790
KNX bus voltage KNX 21-32 VDC
Power consumption approx. 240 mW at 24 VDC (bus powered)
Auxiliary supply Not required (bus powered)
Measuring External PT1000 temperature probe (not included): -50..+400 °C (-58 to 752 °F) depending on probe, res. 0.02 °C (0.04 °F)
Inputs / outputs & connections 4 binary inputs/outputs (floating) + 2 additional binary inputs/outputs (3V/1mA) = 6; 1 external PT1000 input
Protection rating IP20
Dimensions 50 x 50 x 20 (W x H x D), 55 mm (2.17 in) diagonal
Mounting Behind-the-switch module in standard flush-mounted box, indoor
Operating temperature -25 to +80 °C (-13 to 176 °F) (storage -25 to +80 °C (-13 to 176 °F))

Application note: Requires an external PT1000 temperature probe, sold separately.
