RPTF-PT1000 - PT1000 Room Pendulum Temperature Sensor, Stainless Tube, 1.5 m Cable
RPTF-PT1000 - PT1000 Room Pendulum Temperature Sensor, Stainless Tube, 1.5 m Cable

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

ARCUS EDS

RPTF-PT1000 - PT1000 Room Pendulum Temperature Sensor, Stainless Tube, 1.5 m (4.9 ft) Cable

SKU: 90100050
(0)
✗ UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or equivalent). Installation in USA projects may require a Field Evaluation by a recognized laboratory. Consult your local AHJ before specifying.
~ Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an NRTL-listed power supply, many AHJs accept non-listed SELV devices. Verify with your local AHJ before specifying.
$63.77 USD
-38% $102.04 USD $63.77 USD
In stock
On backorder
KNX & DALI Specialists

Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.

Free shipping over $500
KNX certified devices
Expert technical support

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +1 (786) 956-6821

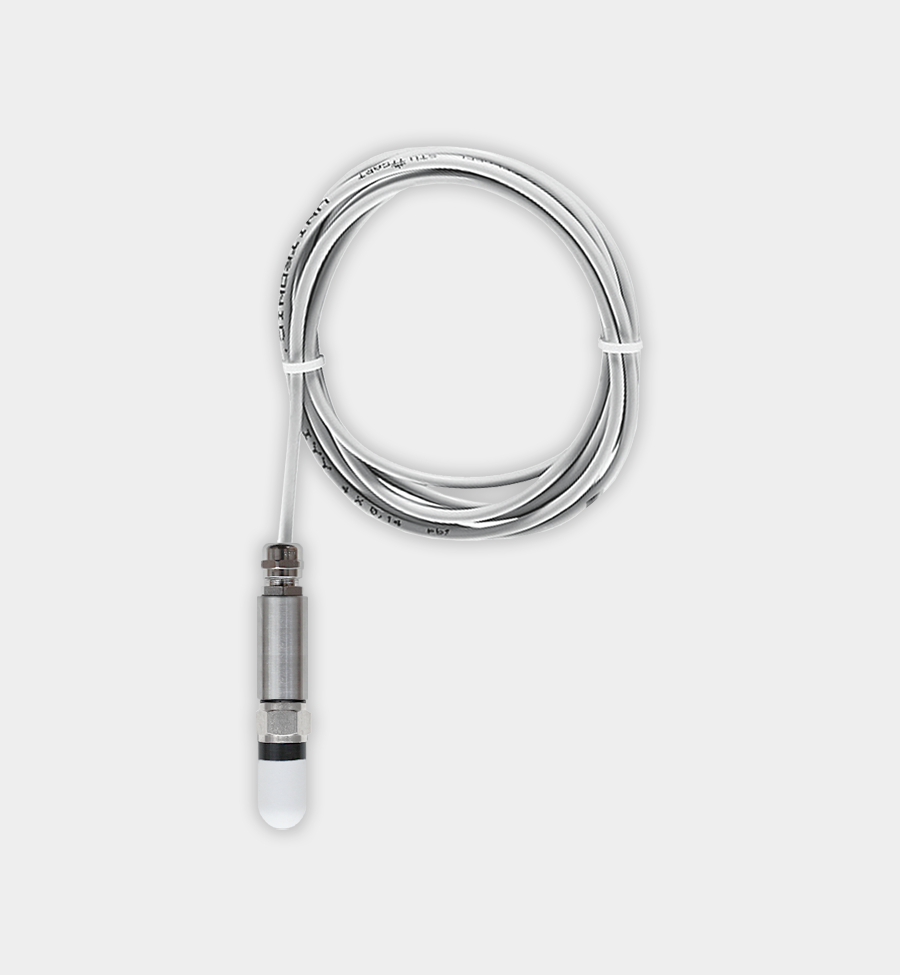

The RPTF-PT1000 (RPTF1) is a room pendulum temperature sensor that hangs from the ceiling on its cable, placing the measuring point in the occupied zone of halls, warehouses and spaces with high ceilings.

The PT1000 element sits in a 100 mm (3.94 in) stainless steel protective tube with M12 x 1.5 thread on a 1.5 m (4.9 ft) PVC cable. It covers -5 to +60 °C (23 to 140 °F) and is rated IP54/65.

Key Features

  • PT1000 in 100 mm (3.94 in) stainless steel protective tube (M12 x 1.5)
  • Hangs from the ceiling on its cable
  • Measuring range -5 to +60 °C (+23 to +140 °F)
  • 1.5 m (4.9 ft) PVC cable
  • IP54/65

Technical Specifications

Article no. 90100050
Measuring PT1000 in 100 mm (3.94 in) protective tube (M12 x 1.5), -5 to +60 °C (23 to 140 °F)
Inputs / outputs & connections 1.5 m (4.9 ft) PVC cable
Protection rating IP54/65
Mounting Hangs from ceiling on cable

Application note: Accessory probe for KNX sensor modules with a PT1000 input, such as the arcus SK10-TC.

(CE certified; not UL/NRTL listed — verify local code requirements before specifying in US installations)
