OFTF-PT1000 - PT1000 Surface Temperature Probe, 1.5 m (4.9 ft) PVC Cable

SKU: 90100001
(0)
✗ UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or equivalent). Installation in USA projects may require a Field Evaluation by a recognized laboratory. Consult your local AHJ before specifying.
~ Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an NRTL-listed power supply, many AHJs accept non-listed SELV devices. Verify with your local AHJ before specifying.
$30.11 USD
-38% $48.18 USD $30.11 USD
In stock
On backorder
KNX & DALI Specialists

Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.

Free shipping over $500
KNX certified devices
Expert technical support

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +1 (786) 956-6821

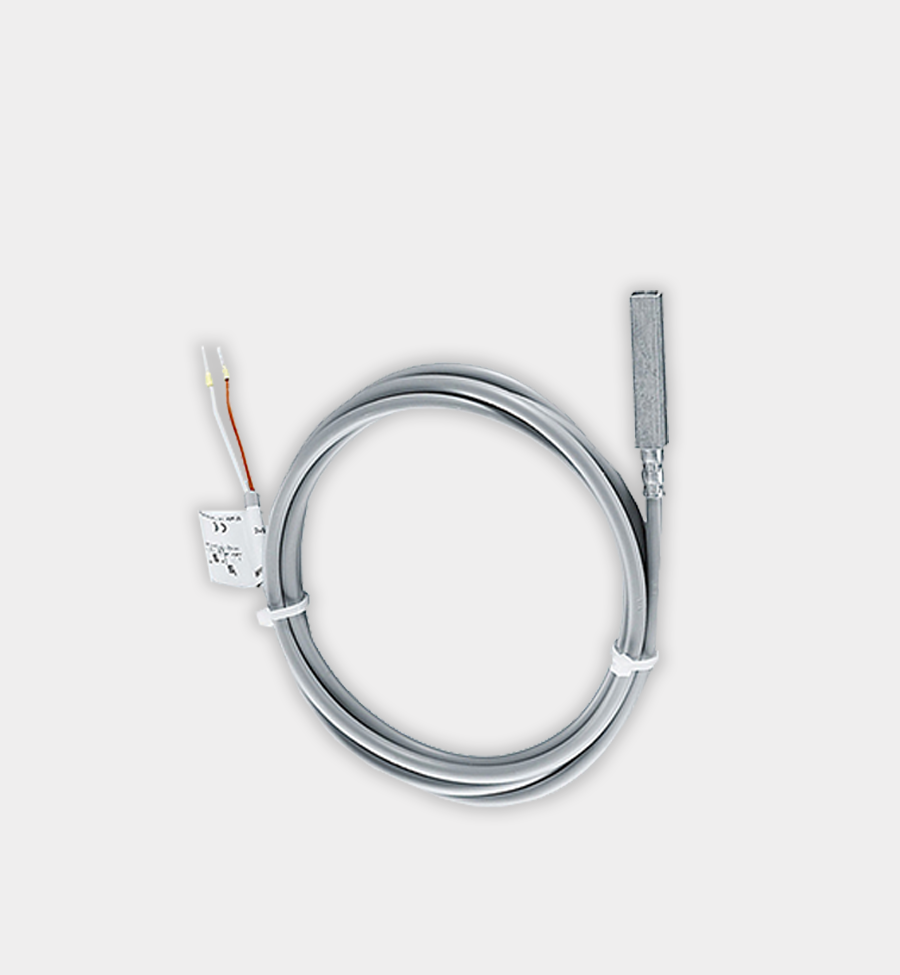

The OFTF-PT1000 is a surface contact temperature probe with a PT1000 element, suited to measuring feed and return temperatures or other surfaces in HVAC systems.

It ships on a 1.5 m (4.9 ft) PVC cable, is rated IP54/65 and covers -30 to +105 °C (-22 to +221 °F). Use it with the arcus SK10-TC and other KNX devices that accept a PT1000 input.

Key Features

  • PT1000 surface/contact probe
  • Measuring range -30 to +105 °C (-22 to +221 °F)
  • 1.5 m (4.9 ft) PVC cable
  • IP54/65

Technical Specifications

Article no. 90100001
Measuring PT1000 surface/contact, -30 to +105 °C (-22 to 221 °F)
Inputs / outputs & connections 1.5 m (4.9 ft) PVC cable
Protection rating IP54/65

Application note: For arcus KNX devices with a PT1000 input, such as the SK10-TC.

(CE certified; not UL/NRTL listed — verify local code requirements before specifying in US installations)
